| Categories | High Voltage Fuse |
|---|---|
| MOQ: | 100 / Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, D/P, T/T, |
| Supply Ability: | 10000/Piece/Weekly |
| Delivery Time: | 7~10 Working days |
| Packaging Details: | Standard carton |
| Brand Name: | Julun |
| Certification: | CE/UL/VDE/KC/ROHS |
| Model Number: | 62720 |
| Place of Origin: | CHINA |
| Rated Voltage: | 75VDC |
| Rated Current: | 10A |
| Dimension: | 6*25mm |
| Material: | Ceramic |
| Purpose: | HVDC / Digital Instrument |
| Company Info. |
| JULUN (H.K)CO.,LTD (DONGGUAN JULUN ELECTRONICS CO.,LTD) |
| Verified Supplier |
| View Contact Details |
| Product List |
75V, 6x25mm Ceramic Tube Fuses
Time Delay

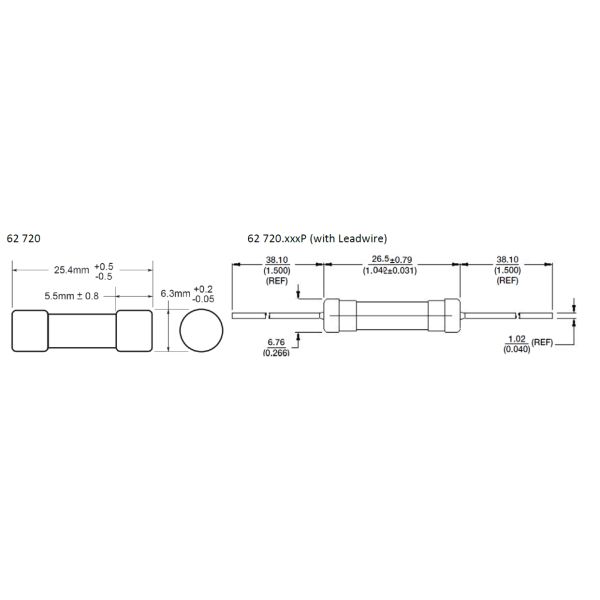

6x25mm physical size
Ceramic tube, Silver plated copper cap construction
Designed to UL248-1
Lead Free and Halogen free material
| Electrical Characteristics | |||
| Rated Current | 1.0In | 1.5In | 2.0In |
| 5A ~ 50A | 4 hours Min. | 1 hour. Max. | 120 sec Max. |
| Part No. | Rated Voltage | Rated Current | Breaking Capacity | Typ. Cold Resistance (mΩ) | Typ. Voltage drop (mV) | Typical Pre-Arcing I2t (A2Sec) |
| DC | 75VDC | |||||
| 62 720.5 | 75V | 5A | 2500A | 32 | 200 | 50 |
| 62 720.6 | 6A | 20.1 | 165 | 48 | ||
| 62 720.10 | 10A | 12 | 160 | 160 | ||
| 62 720.15 | 15A | 6.5 | 140 | 460 | ||
| 62 720.20 | 20A | 3.7 | 110 | 1050 | ||
| 62 720.25 | 25A | 2.31 | 100 | 2200 | ||
| 62 720.30 | 30A | 2.1 | 90 | 4400 | ||
| 62 720.40 | 40A | 1.3 | 70 | 4200 | ||
| 62 720.50 | 50A | 1.07 | 70 | 5300 |
* Typical Pre-arching I2t are measured at 10In Current
** 25A and above rating pass Lightning Test 10kA (Differential
Mode)
*** For the ratings other than above, please contact your sales
representative.
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, for container order, we have OEM packing service, you need
to inform us your logo or company information in details. For bulk
cargo, we will use neutral packing.
Q: What adventages do you have?
A: Fast delivery and good service.
Stable quality with competitive price.
Strict management system.
Please tell me:
What product specifications do you need? when you ask for a
quotation.I will give you the most competitive price per as your
requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements.
welcome to send us the details drawings so that we can provide us
our professional & best service to you.
|
