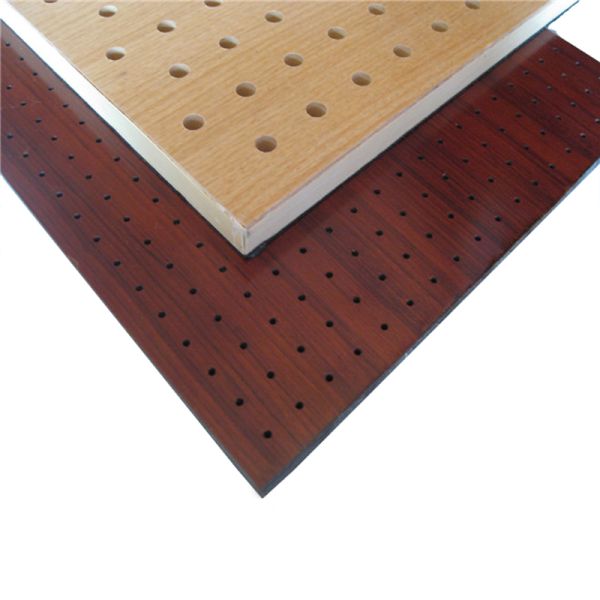

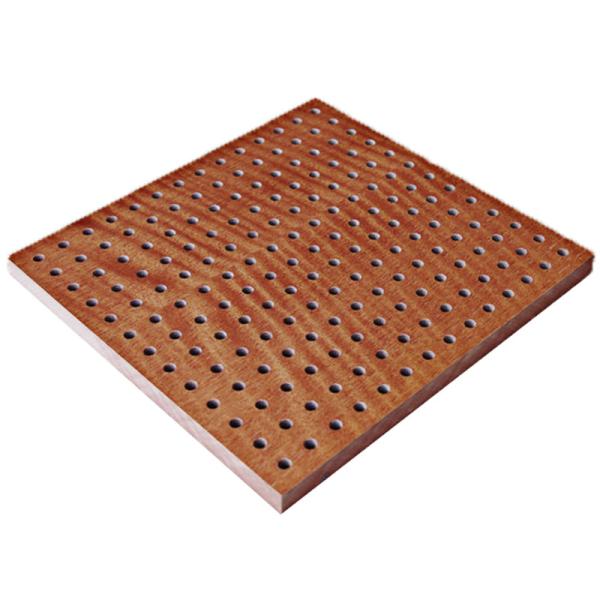

Sound Absorption Perforated Wooden Panel

Technical Details:

Material:Wet-method composite mineral fiber
Surface coating:Good vinyl latex paint
Color:White(other colors available)
Superficial decorative pattern:Optional
Density:Low 280-320kg/m3 and High350-420kg/m3
Processing of rim angle:No fluting(for open frame),four rims cutting and
Fluting in the center
Sound absorption coefficient :0.4-0.6
Fireproofing property:Qualified(Grade B1,GB8625-88)
Qualified(Grade A,GB5464-85)
Anti-sinking property:≤3.5mm(JC670-1997)
Coefficient of heat condition:0.065W/m.K
Anti-bending strength:≥250N

(1)Wooden acoustic panel is a kind of slit resonance absorption material which is made from high density,panel with grooves on the surface and perforated holes at the back side.
(2)It has strong selection on the sound spectrum and particular great performance on the middle and low frequency.
(3)It has better sound absorption effect on medium and high frequency if there is sound absorption cotton filled at the back side cavity.

(4)Acoustic tissue including: The black color and attached at the back side of acoustic panel tissue, has fire retardant and sound absorption function.

Characteristics of Aluminum Ceiling:

1.Easy installation, cleaning&mountaineer.
2.Good soundproof, fireproofing,waterproof, moisture-proof shockproof property.
3.Light weight& high intensity.
4.Harmless to human being&eco-friendly.
5.Various patterns for selection.
6.Perfect surface flatness and smoothness..
7.Wide applications in various places and building.

Technical Details:

Feature:

Science and technology
A variety of materials according to the acoustics principle, reasonable matching, noise has excellent sound-absorbing performance, very good for middle and high frequency sound absorbing effect. The use of automatic computer control equipment to replace the barbaric mode of production, large-scale standardized production.

Application:

Studio, room, rehearsal, theater, theater, gymnasium, dance hall, KTV rooms, conference rooms, office buildings, halls, hotels, airports, railway stations, public, workshop, workshop.

We can offer:

A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.

Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing Movable Partitions, Folding Doors, Sliding Doors, Office Furniture. We also artistically designs and carefully do research and development (R&D).

Ebunge company has adopted the advanced partition technology of USA, Germany and Denmark. We have a professional staff with more than 10 years of experience in design, production, and installation. Also, have a good after-sale system and team.

Our products (Movable Partitions and Acoustic Panels) are widely used in hotel banquet halls, meeting rooms, exhibition halls, conference rooms, international convention centers, KTVs, upscale restaurants, office buildings, schools, hospitals auditoriums, stadiums,s and so on.

Nowadays, the modern trend in buildings needs more flexibility and convenience, acoustic and soundproof to use the space of their rooms. Most of building designers like to prepare an open-plan space, with soundproof effects, and easy to operate. The solution to the designer's need is the Movable Partitions and Acoustic Panels..

The movable partition walls can be customized with various surface finishes, such as melamine, MDF, Plywood, fabric and PU leather. Top hanging system with only ceiling but no floor tracks so it can be pushed and pulled everywhere easily according to the direction of tracks. The most popular panel thickness is 85mm and its height can be up to 6 meters. Both wooden and glass operable walls are available in our factory which can meet different requirements of our customers.

Movable Wall Manufacturer
◆Individual panels can be stored away for maximum space usage.
◆Operable top and bottom seals for effortless operation.
◆Aluminum frame construction for enhanced acoustics.
◆The system offers various levels of sound reduction
◆Unique track and carrier system ensuring quiet and easy operation.
◆Numerous panel stacking options for complete flexibility.
◆Top hung and no floor track.
◆Extensive range of surface finishes can be available.

Movable partition wall production

We Offer:

◆ A full professional design service

◆ Survey and installation guide

◆ Using top quality materials and components

◆ A fully experienced work team

◆ Maintenance contracts to ensure your valuable asset remains in full work order.

Movable partition wall loading container

Movable partition wall loading container
