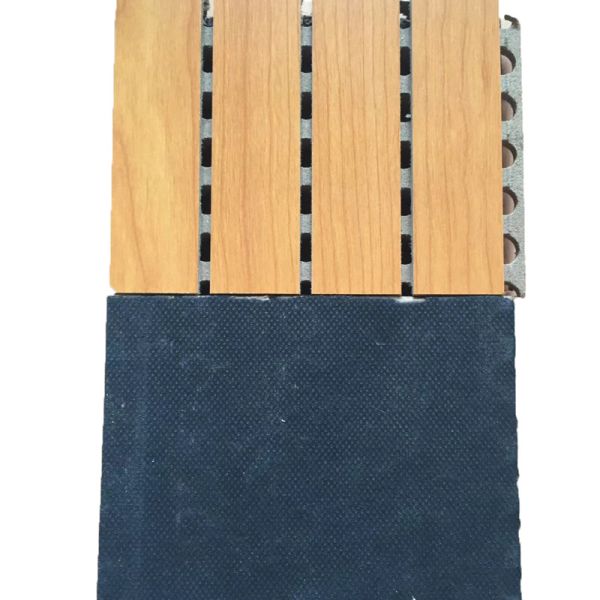

Sound Insulation Material Wooden Grooved Acoustic Panel Wood Wall Paneling

Sound Insulation Material Wooden Grooved Acoustic Panel Wood Wall Paneling

Sound Insulation Material Wooden Grooved Acoustic Panel Wood Wall Paneling
Sound Insulation Material Wooden Grooved Acoustic Panel Wood Wall Paneling
Categories Wooden Grooved Acoustic Panel
Brand Name: BANGE
Model Number: Acoustic covering wall panels
Certification: ISO9001
Place of Origin: Guangdong
MOQ: 100 square meters
Price: 12 - 38 dollars per square meters
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200000 square meters per month
Delivery Time: 15-20 days
Packaging Details: Standard paper carton or customized packaging
Back finish: Black fleece
Service: OEM,ODM
Thickness: 12/15/18 mm
Product name: Acoustic covering wall panels
Finish: Melamine
Position: Interior
Color: Accept customized
Application: Office,function room,etc
Model: 28/4,13/3,18/3,59/5,60/4,40/3
Type: Acoustic Wall Panels
Size: 2440*133,2440*197 mm
Contact Now
Company Info.
Guangdong Bunge Building Material Industrial Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Sound Insulation Material Wooden Grooved Acoustic Panel Wood Wall Paneling

Grooved Wood Acoustic Covering Wall Panels

Features:

1. Finishes: Melamine, Wooden veneer, fireproof surface, painting.


2. Acoustic tissue: Black felt attached on the back for fireproof and soundproof.

3. Type: 13/3, 14/2, 28/4, 59/5 or made on your kindly request.

4. Specification: L2440mm*W128mm*H15mm, L2440mm*W128mm*H18mm, or made on your kindly request.

5. Thickness: 12/15/18mm

6. Tolerance: Width is 0.1mm, length is 2mm.

7. Color: Choose as to our color samples or made on your kindly request.

BUNGE Acoustic wood panels are available in three main finishes, Wood Veneer, High quality paint finish, and decorative Laminate. This gives the designer almost an unlimited choice in designing the wall or ceiling finish. TheTengfei Acoustic wood panels range includes standard wood veneers chosen from the most popular colours available, as is the same with the High quality decorative laminates.


REAL WOOD VENEER

The standard range of wood veneers is available on an exstock basis, however Tengfei can choose from international suppliers quality veneers to match your choice


Paint Finish

BUNGE Acoustic wood panels are available in either Pantone or RAL colours. This gives almost an unlimited choice in selection. The paint finish is in a high quality 2pac finish and can be supplied in Gloss, Matt or Satin finishes.


Decorative Laminate

BUNGE Acoustic Wood Panels come in a standard range of Decorative laminates

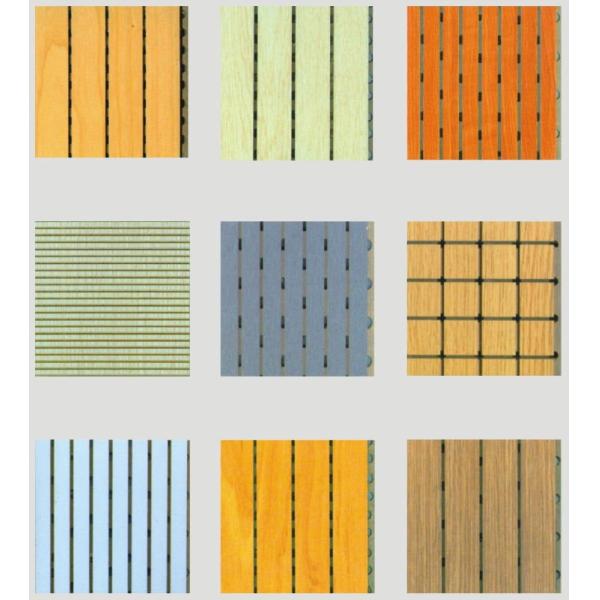

MDF grooved Acoustic wall Panel

Wooden Grooved Acoustic Panel
1.StructureBasic Material ,Finish&Back Finish
2.Basic MaterialE1 MDF,FR MDF ,MgO Combination Board etc.
2. Front FinishMelamine ,Natural Wood Veneer,Paint,etc.
3. Back FinishBlack Acoustic Felt
4.Standard Size2440*133 , 2440*197mm,etc.
5.StandardThickness12/15/18mm
6. Standard Pattern13-3,14-2,28-4,59-5,etc.
7. Installation1.Lightweight steel keel system2.Wooden battern systern
8. Fire ratecan meet China Standard Class B1 and BS476 Part 7 Class 1
9. Eco levelcan meet China and EU Standard Class E1
10.Applicationsgymnasium,hotels,exhibition centers,schools,studio etc.
11.Is customizedcan be Customized

Installation Methods
A)Preparation
1.The place of installation must be dry,with the lowest temperature no less than 10 degrees celsius.
2.the acoustic panels to be installed must be placed in the place of installation for at least 48h in order to adapt the indoor environment.
3.After installation ,the largest humidity changing rate of the place of installation should be between 40%-60%.
4.The distance between each wood keel must be less than 500mm and that between each light steel keel should no more than 600mm.
B)Installation
1.Confirm the place of installation ,determine the horizontal and vertical lines and the reserved measurements for the electric wire socket ,pipes.etc.
2.Calculate the actual construction measurements and cut the part of acoustic panels if needed.
3.Start to install and follow the rules:from left to right,from bottom too top.for horizontally installation.make the grooves up;for the vertical installation,make the tougues on the right.for real wood veneer acoustic panels that have requirements on the direction of the stripes,the panels should be installed according to the pre-marked sequence numbers.
C)Installation system
1.Lightweight steel keel system
2.Wooden batten system

Application places:

Suitable for opera, theater, recording studio, recording studio, studio, audition room, business office, television, radio, multi-purpose hall, meeting rooms, studio, concert hall, auditorium, gymnasium, large Casino, hotel, KTV, luxury villa or home life more stringent requirements of the acoustic spaces.
