30w / 35W LED Street Light Fixtures Aluminum Housing , IP66 LED Street Light Heads For Garden

35W Outdoor Led Street Light Aluminum Housing IP66 For Garden / Area Lighting

Data sheet of product

	Model	LY-L1301-06D0F43
	Power	60W
	Input voltage	AC100-277V 50/60Hz
	CCT	4000K / 5000K / 6000K
	CRI	Ra>70
	System efficiency	140-150lm/w
	Lumen flux	>5000lm

Product attribute list

• Material: Alumilum
• Chip brand: San’an / Bridgelux
• LED qty.: 28pcs
• Beam angle: 150*70 degree
• Driver: Meanwell / Moso / Sosen
• PF>0.95
• THD<20%
• Life span: >50,000 hours
• Pole diameter: φ60mm
• IP rating: IP66
• Warranty: 5 years
• Working temperature: -40℃~50℃,20%~90% H.R
• Storage temperature: -40℃~85℃10%~90% H.R.

Feature

1. ​Honeycomb Briquette effect.It simulates and adopts the burning principle of honeycomb briquette; it is easy to transform the original block of radiator to various modules, as well as to enable air to convect and fully pass through the gaps between modules by utilizing the honeycomb effect, thus to remove the heat rapidly, and reduce temperature by around 20 ℃.

2. Heat dissipation of the whole structureIt is available to make clever use of module bracket that only play a supporting role, and to transform it to a "thermal bracket" that is capable of conducting the module's heat to the light shell as a structural part, thus to promote the cooling effect of radiator of cooling module, the design aims to fully utilize the surface area of structural parts to transfer heat to air.

3. "Ultra Robust" module technology.Each LED is equipped with bypass protection, to protect single-circuit structure of the full connection series, even open or short circuit fault can't affect current and voltage distribution of other LED, the other LED can work under the normal operating mode, thus extending the life cycle of the whole module.

4. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

5. The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.

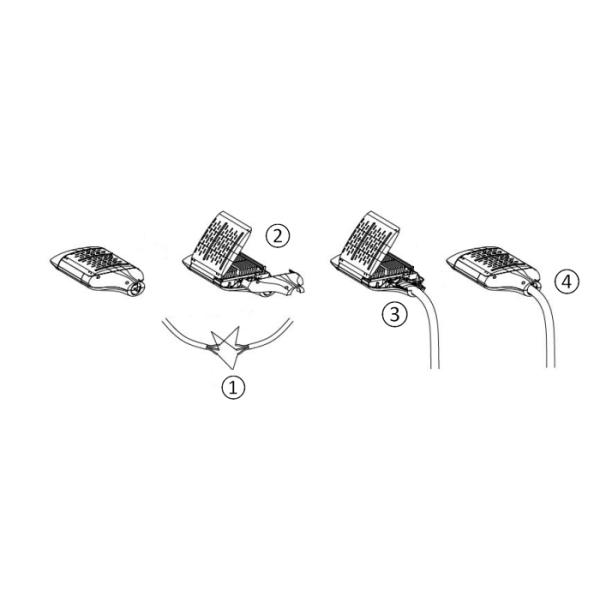

Installation

• Connect the wires to the AC wire,Make sure that Yellow-green ground wire grounding reliably.
• Remove the screws of back cover,open the back and remove the back cover.
• Through the poles into the adapter,tighten the screws firmly on the lamp poles.
• Put the back cover back and tighten the screws.

Trading Conditions

1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.

2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.

3. Samples time: 5 days.

4. Shipping terms: FOB Shenzhen.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.

Quality Control

1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.

2. We will be tracing the different phase of production from the beginning.

3. Every LED lights quality checked & cleaned before packing.

4. Before delivery clients could send one QC or point the third party to check the quality.

5. We will try our best to help clients when problem occurred.

Shenzhen Lepower Opto Electronics Corp., Ltd

(Abbreviation"Lepower Corp", stock code:838452 )founded in 2008, is a professional comprehensive LED lighting enterprise engaged in high power led encapsulation, optic design and LED lamp development, has honored as China national high-tech enterprise, Chinese AAA-class Credit firm and listed in TOP 100 Companies in China LED Lighting application industry.

Lepower Corp,with more than 16,000 square meters modern production plant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R & D and innovation capability in China’s LED industry.Lepower Corp has got several national patents and more than 30 utility model patents, is able to offer customers professional LED lighting solutions.

Lepower Corp branded products, including high power led light source,Calculus optic lens, LED modules and special outdoor LED lamps, have been sold all over the world, and are enjoying great reputation with its professional quality. Lepower Corp strictly carry out ISO9001:2008 quality management system, most products have passed several tests by authorized Lab, and got CE, ROHS, LM-80,LM-79, CQC, TUV GS, UL,SAA,CB and C-tick certification. Lepower Corp is a lsoa member of ZHAGA Union.

Our Main Products Line(all reach 160lm/w):
1. LED Modules: 30W 40W 50W 60W
2. LED Street Light: 30W-300W
3. LED Flood Light: 50W-1200W
4. LED High Bay Light:
