PVC Insulated PVC Sheathed Steel Wire Armored Control Cable WIth Flame Retardant Sheath

Categories Control Cables
Brand Name: SHAN CABLE
Model Number: ZR-KVV32
Certification: CE/KEMA/CCC/TUV
Place of Origin: SHANGHAI CHINA
MOQ: 1000m
Price: USD 0.4 To 10.5 per Meter
Supply Ability: 8KM per Day
Delivery Time: 10-15 Days
Packaging Details: 100/200 Meters per Rolls or Wooden Steel Drums
Conductor: solid Copper Conductor
Insulation: PVC
Sheath: Flame retardant Sheath
Color: Black
Core: 5-61
Size: 0.75-4
Armored: Steel wire
Corporation: shenghua group
Brand: Sh Cable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

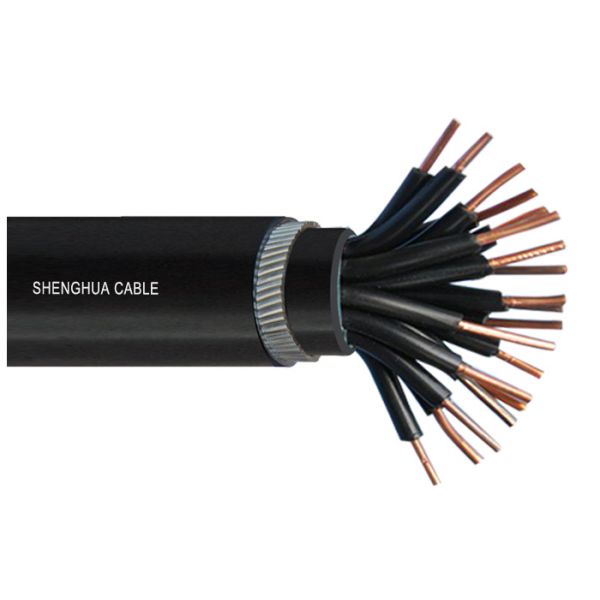

PVC Insulated PVC Sheathed Steel Wire Armored Control Cable WIth Flame Retardant Sheath

PVC insulated PVC sheathed steel wire armored control cable WIth Flame retardant Sheath


1.Implementation standards


GB/T 9330.1-2008 GB/T9330.2-2008 GB/T 19666-2005


2.Use


This product is suitable for AC rated voltage 450 / 750V and below the control, monitoring circuits and protection lines and other occasions


3.Use features​


3.1 The conductor of the cable is the maximum operating temperature of 70.


3.2 Ambient temperature is not less than 0℃


3.3 Cable flame retardant properties meet the requirements of the corresponding indicators in the

GB/T19666-2005 standard.


Performance differences


Power cables are used in power system main lines to transmit and distribute high-power electric power, and control cables directly transmit electric energy from power distribution points of power system to power connecting lines of various electric equipment and appliances. The rated voltage of power cables is generally 0.6 / 1kV and above, the control cable is mainly 450 / 750V. The same specifications of the power cables and control cables in the production, the power cable insulation and sheath thickness than the control cable.


(A) The control cables belong to the electrical equipment cables, and the power cables are two of the five major categories of cables.


(B) the standard control cable is 9330, the standard power cable is GB12706.


(C) the control cable insulation core colors are generally black printed white, there are low-voltage power cables are generally color separation.


(D) Control cable cross-section generally do not exceed 10 square feet, the main power cable power transmission, are generally large cross-section.
Because of the reasons mentioned above, power cable specifications can generally be larger, up to 500 square feet (conventional manufacturers can produce the range), then the larger cross-section of the general can do a relatively small number of manufacturers, and the general section of the control cable Small, the maximum generally not more than 10 square.
From the cable core number, the power cable according to power grid requirements, up to 5 cores generally, and control cables transmit control signals with a larger number of cores, according to the standard, there are many more 61 core, but also can be produced according to user requirements


4.Product model


Model :zr-kvv32


Similar products

ModelName
zr-kvvPVC insulated and sheathed control cable
zr-kvvpPVC insulated PVC sheathed braided shield control cable
zr-kvvp2PVC insulated PVC sheathed copper shield control cable
zr-kvv22PVC insulated PVC sheathed steel tape armored control cable
zr-kvvp2-22PVC insulated PVC sheathed copper tape armored control cable
zr-kvvp-22PVC insulated PVC sheathed copper wire armored control cable
zr-kvv32PVC insulated PVC sheathed steel wire armored control cable
zr-kvvrPVC insulated PVC sheathed control flexible cable
zr-kvvrpPVC insulated PVC sheathed braided shield control flexible cable


Specifications


The above parameters are only part of the parameters, for reference only.

FAQ


Q1. Can I have a sample order for cable?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production needs 2-3 weeks .

Q3. Do you have any MOQ limit for cable?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for yolarlink cable?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new cable with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
