| Categories | Zirconia Ceramic Rod |
|---|---|
| Brand Name: | OEM |
| Model Number: | Customer's requirment |
| Certification: | ISO, ROHS |
| Place of Origin: | Guangdong, China(mainland) |
| MOQ: | 5 PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5000 pcs per month |
| Delivery Time: | 10-30 working days after receiving deposit |
| Packaging Details: | Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing. |
| Product name: | Zirconia ceramic rod / bar / shaft |
| Material: | Zirconia / alumina ceramic |
| Color and Size: | White, ivory, Customized |
| Compressive Strength@Room Temperature: | 2000 - 2200 Mpa |
| Flexural Strength @ Room Temperature: | Mpa / 280 ( 95 alumina ), 310 ( 99 alumina ), 950 ( zirconia ) |
| Heat Conductivity @ Room Temperature: | W / m * k / 18 - 25 ( 95 alumina ), 26 - 30 ( 99 alumina ), 2.0 - 2.2 ( zirconia ) |
| Max Application Temperature: | ℃ / 1500 ( 95 alumina ), 1750 ( 99 alumina ), 1050 ( zirconia ) |
| HV Hardness: | 1300 - 1650 Mpa |
| Fracture Toughness: | Mpa * m½ / 3.8 ( 95 alumina ), 4.2 ( 99 alumina ), 10 ( zirconia ) |
| Application: | Industrial machining ceramic rod parts |
Polished Wear Resistance Zirconia Ceramic Rod / Ba r/ Shaft For
Industrial Machining Parts
Product Description
Advantages of Zirconia ceramic rod / bar / shaft:
1. Refractory.
2. Long Service Life.
3. High polishing surface.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.
They deliver 10 times longer working life than metal rod / tube.
Properties Sheet:
| Properties | Units | 95 Alumina | 99 Alumina | Zirconia |
| Density | ɡ / cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
| Water Absorption | ％ | 0 | 0 | 0 |
| Coefficient of Thermal Expansion | 10-6 / K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young’s Mod | Gpa | 280 | 340 | 210 |
| Poisson’s Ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
| Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
| Flexural Strength @ 700℃ | Mpa | 220 | 230 | 210 |
| Compressive Strength@Room Temperature | Mpa | 2000 | 2200 | 2000 |
| Fracture Toughness | Mpa * m½ | 3.8 | 4.2 | 10 |
| Heat Conductivity @ Room Temperature | W / m * k | 18 - 25 | 26 - 30 | 2.0 - 2.2 |
| Electrical Resistivity @ Room Temperature | Ω*mm2 / m | ＞1015 | ＞1016 | ＞1015 |
| Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
| Resistance to Acid Alkaline | / | High | High | High |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV / mm | 16 | 22 | / |
| Thermal Shock Resistance | Δ T ( ℃ ) | 220 | 180 - 200 | 282 - 350 |
| Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252 |

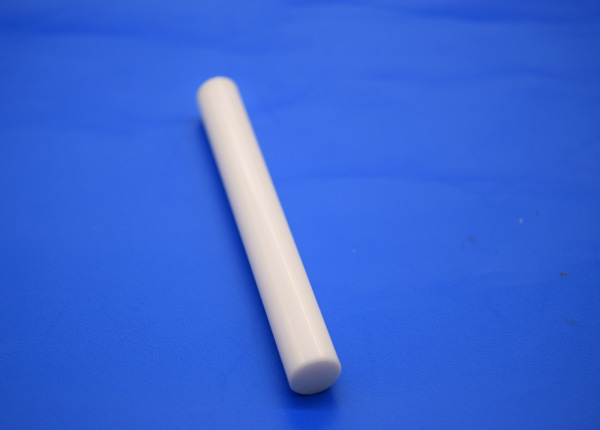

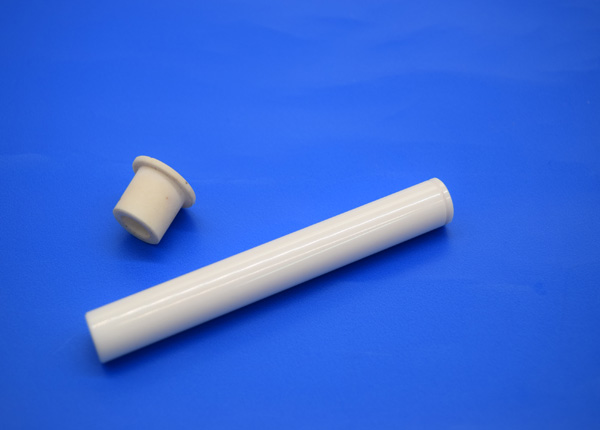

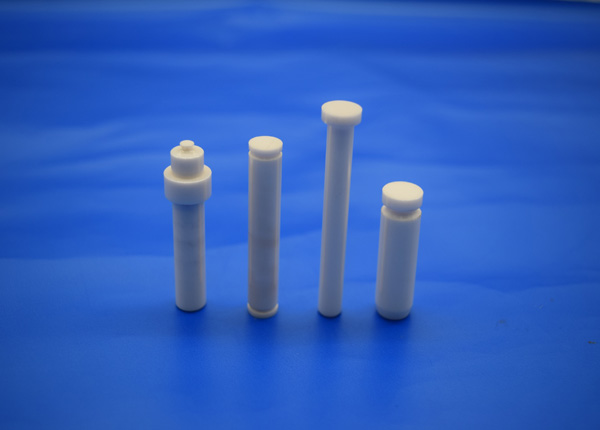

Detailed Images
Related Products
Packaging and Shipping
Zirconia ceramic rod / bar / shaft will be packed in a bubble bag
individually, then separated by a foam, finally put in standard
export carton packing, or OEM packing.
Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea
transportation.
Company information
Who Are We?
Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic
parts.
What Do We Do?
We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve,
bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments,
clocks and electronic products, mills, energy and power, machine
and metals, autocar and military, spaceflight and some other
high-end fields.
Our products with some certificates, such as , CE, TUV, etc..
Factory Show
Production Process Show
One-stop production, from the raw material powder to final product.
|
