304 304L 316 316L Stainless Steel Sheets / Coils / Plate 3mm Thickness

Categories Stainless Steel Plates
Brand Name: BAO STEEL
Model Number: 304 304L 316 316L
Certification: ISO,SGS
Place of Origin: China
MOQ: 5 tons
Price: US $2,000-3,000 / Ton
Payment Terms: L/C, T/T
Supply Ability: 500 TONS PER MONTH
Delivery Time: 7 DAYS
Packaging Details: Export Packing
Thickness: 0.2-150mm
Width: 1m~1.25m
Length: 2m~2.25m
Surface: 2B/2E/NO.1
Type: Plate
Technique: Cold Rolled and Hot Rolled
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

304 304L 316 316L Stainless Steel Sheets / Coils / Plate 3mm Thickness

430 304 304L 316L 201 316 4x8 sheet metal prices stainless steel


Product Description

1. Specifications about stainless steel sheet

Commodity430 304 304L 316L 201 316 4x8 sheet metal prices stainless steel
Grade201,202,304,304L,316,316L,310S,309S,321,301,310,410,420,430,904L
BrandTISCO ,BAOSTEEL,POSCO,JISCO,LISCO
CertificationSGS,BV,IQI,TUV,ISO,etc
Thickness0.2mm-150mm
Width1000,1219,1250,1500mm, or as your requirements
Length2000,2438,2500,3000,6000mm, or as your requirements
SurfaceNo.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film.
StandardASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc
Delivery time5-7 days after confirming the order
MOQ1 Ton
AdvantagesShowing the splendor of your quality, wearresistant as well , strong corrosion resistance and decorative effect, durable and beautiful in good taste.

2. Production Flow about stainless steel sheet


Raw materials are sending to hot rolling units for rolling into different sizes


  • Hot rolled material is annealing in cold; rolled annealing furnace and pickling in acid.
  • All mill rolls are grinded on precision grinding machine with proper chamfering after first shiftoperation.
  • All sheets are pickled in different tanks and dried on brush roll machine before dispatched.
  • These sheets are again annealing and are sent to straighten machine for straightening.
  • Inspections are done at various stages. Keep proper control overall internal process via rolling,annealin and pickling by our experienced staff

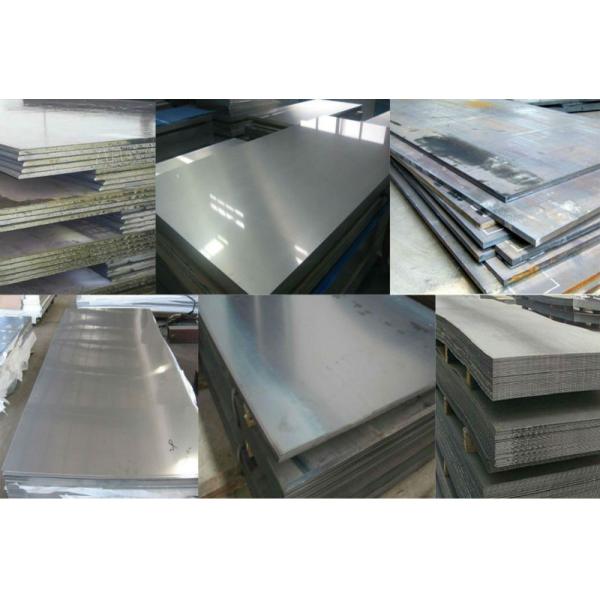

304 304L 316 316L stainless steel sheets /coils /plate304 304L 316 316L stainless steel sheets /coils /plate


Applications

  • Oil and gas industry equipment
  • Offshore platforms, heat exchangers, process and service water systems, fire-fighting systems, injection and ballast water systems
  • Chemical process industries, heat exchangers, vessels, and piping
  • Desalination plants, high pressure RO-plant and seawater piping
  • Mechanical and structural components, high strength, corrosion-resistant parts
  • Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping

Low Temperature Impact Properties

Temperature °FRT32-4-40
Ft-lbs162162155140
Temperature °F-76-112-148-320
Ft-lbs11044307

Elevated Temperature Tensile Properties

Temperature °F68212302392482
0.2% Offset Yield Strength, ksi8065615855
Ultimate Tensile Strength, ksi116101989594

Values obtained for hot rolled plates (th ≤ 2"). Alloy 2304 must not be used for a long time at temperatures higher than 300°C (572°F), where precipitation hardening phenomenon occurs.

Toughness Values (KCV Minimum Values)

Temp.-50°C+20°C-60°F+70°F
Single75 J/cm_90 J/cm_54 ft. lbs65 ft. lbs
Average (5)90 J/cm_150 J/cm65 ft. lbs87 ft. lbs

Hardness (Typical Values)

Average (5)HV10 180-230HB : 180-230HRC _ 20

Physical Properties

Density : 7,800 kg/m3 - 0.28 lb/in3

Interval
Temper
°C
Thermal
expansion
ax10M-bK-1
°C
Resistivity

(μ_ cm)
Thermal
conductivity
(W.m-1.K-1)
Specific
heat
(J.kg-1.K-1
Young
modulus
E
(GPa)
Shear
modulus
G
(GPa)
20-1001320801745020075
20-10013100921850019073
20-20013.52001001953018070
20-300143001052056017067
