Flame Resistance Flexible PVC Tubing

Categories Flexible PVC Tubing
Brand Name: Hengchangyong
Model Number: HCY-3
Certification: SGS
Place of Origin: China
Working: -30˚C~105˚C
colors: white/black/grey/silver/red/blue/pink/yellow
Application: All kinds of electrical appliances & industrial appliances
MOQ: 1000meters
Price: Negotiate
Payment Terms: TT
Supply Ability: 50000meters /day
Delivery Time: 5-7days
Packaging Details: Roll
Material: PVC
Flammability: VW-1
Approval: UL
Tensile Strength (Mpa ): ≥10.41
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

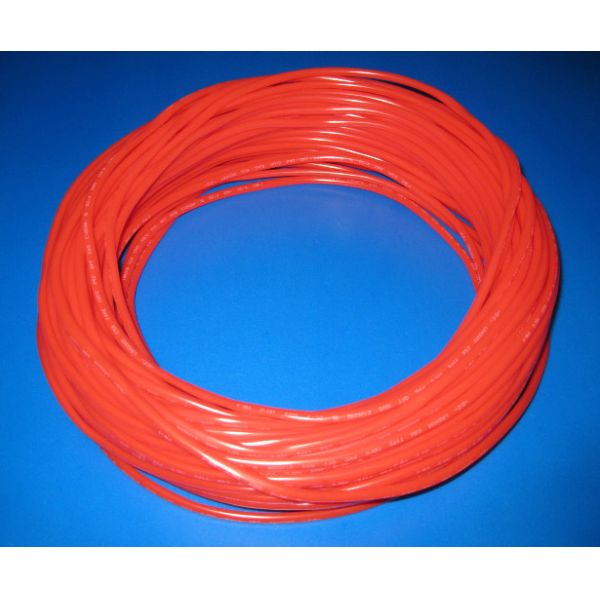

Flame Resistance Flexible PVC Tubing


Flame Resistance Red PVC Tubing Tensile Strength ≥10.41 Mpa


Product Performance:

Material: PVC


Working temperature: -30 ℃ ~ + 105 ℃


Environmental standards: ROHS compliant


Standard colors: black, transparent white,yellow... (color can be customized)


Standard:SGS


Product Features: Soft, has good electrical and physical properties, acid, corrosion resistance, stable performance, etc.


Size: ID: 1.0mm-33mm Thickness: 0.3mm~0.7mm

Applications: Widely use in all kinds of electrical appliances, industrial appliances, lighting, automotive wiring harness, electronic components, motor leads, machinery, toys, stationery and other fields.


Technical Data:

ItemValue
( ℃ ) cont inuous operating temperature-30~105
(Mpa)Tensile strength≥10.4(1.5kgf/mm2)
(%)Ult imate elpong ion≥100
Aging in circulating air oven(136.0±1.0) ,7days at 136.0±1.0℃

After aging

(Mpa)Tensile strength≥7.28
(%)Ult imate elongat ion≥70
(V)Pitential rating300V,600V
(Ω.cm)Volume reslst ivity≥10
(V)Potent ial rating≥2500(60s) ≥2500(60s),no breakdown
Heat shock (105℃×4h)No cracking
Cold bend (-10℃)No cracking
Maximum iong longitudinal change±5%
