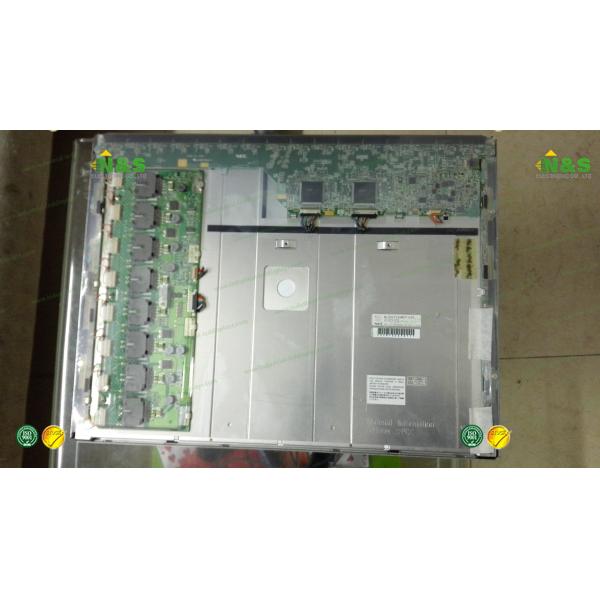

Industrial Medical Display Monitors NL204153AM21-07A NEC A-Si TFT-LCD 21.3 Inch

Categories Medical LCD Displays
Brand Name: NEC
Model Number: NL204153AM21-07A
Certification: ISO9001
Place of Origin: KOREA
MOQ: 1
Delivery Time: 1-3 Working Days
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model: NL204153AM21-07A
Panel Brand: NEC
Descrition: 2048×1536
Panel Type: a-Si TFT-LCD
Active Area: 433.152×324.864 mm
Outline: 457×350 mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial Medical Display Monitors NL204153AM21-07A NEC A-Si TFT-LCD 21.3 Inch


NL204153AM21-07A NEC a-Si TFT-LCD ,21.3 inch, 2048×1536 for Industrial Application


NL204153AM21-07A Basic Information

Panel ModelNL204153AM21-07A
Panel BrandNEC
Descritiona-Si TFT-LCD ,21.3 inch, 2048×1536
Panel Typea-Si TFT-LCD
Operating Temperature0 ~ 55 °C
Storage Temperature-20 ~ 60 °C

Packaging & Shipping for Our LCD panel

1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

Other shipping terms can also be arranged according to specific requirements.

NL204153AM21-07A Mechanical Features

Dot Resolution2048(LCR)×1536 (QXGA)
Pixel ConfigurationLCR Vertical Stripe
Pixel Density120 PPI
Aspect Ratio4:3 (H:V)
Form FactorFlat Rectangle Display
Dot Pitch0.0705×0.2115 mm (H×V)
Pixel Pitch0.2115×0.2115 mm (H×V)
Weight3.00/3.20Kgs (Typ./Max.)
SurfaceAntiglare, Hard coating (2H)
Active Area433.152×324.864 mm (H×V)
Bezel Area438.2×330.0 mm (H×V)
Outline Dimension457×350 mm (H×V)
Outline Depth34.0/37.0 (Typ./Max.) mm
Holes & BracketsSide mounting holes (4-M3)
Landscape or PortraitLandscape type
Touch PanelWithout

Quality Control:

  1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

  1. Function Inspection

Make sure all functions are 100% tested ok


NL204153AM21-07A Optical Features

Display ModeSA-SFT, Normally Black, Transmissive
Brightness1500 cd/m² (Typ.)
Contrast Ratio850 : 1 (Typ.) (Transmissive)
Display ColorGrayscale (8-bit)
Response Time22/23 (Typ.)(Tr/Td)
Viewing Angle85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing DirectionSymmetry
White color ChromaticityWx:0.299; Wy:0.315
White Variation1.15/1.25 (Typ./Max.)(5 points)
Sunlight ReadableY

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.


NL204153AM21-07A Electronics Feature

Vertical Frequency60Hz
Reverse ScanNo
Total Power Consumption67.2W (Typ.)

Below are our other LCD panels stock for your easy reference:


Panel ModelBrandSizeResolution
NL6448AC33-03NLT10.4"640×480
NL4827HC19-02BNLT4.3"480×272
NL3224ER24-03NLT3.8"320×240
NL3224CR24-05ANLT3.8"320×240
NL3224CR24-04ANLT3.8"320×240
NL3224CR24-03NLT3.8"320×240
NL3224BC35-21NLT5.5"320×240
NL256204AM15-03ANLT20.1"2560×2048

We also have other industrial LCD panels, pls contact to us for the further information
