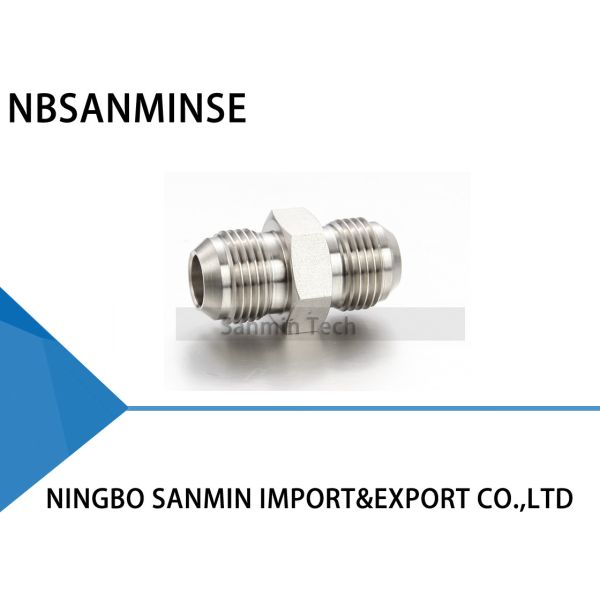

HN Hex Nipple Stainless Steel 316L Tube Fitting Plumbing Fitting High Quality Sanmin

Categories	Pneumatic Air Fittings
Brand Name:	NBSANMINSE
Model Number:	HN
Certification:	ISO9001
Place of Origin:	CHINA
MOQ:	10PCS
Price:	Negotiation
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS
Delivery Time:	5-30 days
Packaging Details:	Box
Type:	Hex Nipple
Standard or Nonstandard:	Standard
Material:	Stainless Steel 316L
Pressure:	3000 Psi

Contact Now

Add to Cart

Company Info.

Ningbo Sanmin Import And Export Co.,Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

HN Hex Nipple Stainless Steel 316L Tube Fitting Plumbing Fitting High Quality Sanmin

HN Hex Nipple Stainless Steel 316L Tube Fitting Plumbing Fitting High Quality Sanmin

Installation Instructions

Fittings are supplied assembled and finger tight . Disassembly before use can allow the entry of dirt or other particles

1 . Insert the tubing into the fitting

Check That the tube rests firmly on the fitting shoulder and that the nut is finger tight , At this point it is recommended that a scribe mark be drawn on the hex of the extending onto the fitting body . This mark will serve as an indicator for the starting point and proper pull – up .

2 Tighten the nut

1-1/4 Turns of the nut are required for 1/4” (6mm) and higher ( See Fig . A )

3/4 Turn of the nut is required for 3/16” (4mm) and lower ( See Fig.B )

Reassembly Instruction

Connections may be disconnected and remade repeatedly , without loss of leak tight seal .

1. Before disconnecting , Mark the position of the nut inrelation to the fitting body .

2. To reassemble , use a wrench to tighten nut to original position .

3. Tighten slightly with wrench until a slight rise in torque is felt .

Tube Cutter

To attain a leak free connection , the tubing must be cut squarely . A good quality tube cutter with the appropriate blade for the tubing material is recommended .

Do not try to reduce the time of cutting by taking deep cuts with each turn the cutter . This will work harden the tube .

The end of the tube must be deburred to avoid damage to the fitting and to ensure that the rube reaches the bottom of the fitting .

Warning

Do not hold the tube in a vise in the place where it will be inserted into the fitting ( the vise will leave a mark on the tube that may cause leaks , and might cause ovality ).

Tube Handling

Scratches on the tube might cause leaks . it is , therefore , important to handle the tube carefully to reduce the risk of leaks .

Copper Tubing

If using copper tubing from a roll , hold the end of the tube and roll the roll outwards allowing the tubing to lie on a flat surface .

High Safety

In applications where severe conditions and high pressure exist , we recommend the following installation procedures :

1. Check that the nut is finger tight

2. Insert the tube ( Up to the shoulder )

3. Rotate the nut with a wrench until the tube does not rotate freely .

4. Mark position of the nut .

5. Rotate the nut 1-1/4 turns .

This method ensures that even if the tube O.D. is at the minimum tolerance , the ferrules will be in contact with the tube for the full 1-1/4 rotation.

In order to assure maximum fitting reliability and performance , great care should be given when selecting the tubing for each application

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .

Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Why choose us

1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: One year quality guarantee
