| Categories | Computer Case Cooling Fans |
|---|---|
| Brand Name: | MX |
| Model Number: | MX2507ASH1 |
| Certification: | CE / ROHS |
| Place of Origin: | China |
| MOQ: | 100 pcs |
| Price: | USD 0 . 5 - USD 4 or Negotiable |
| Payment Terms: | T / T |
| Supply Ability: | 40 , 000pcs per month |
| Delivery Time: | 7 - 10 working days after received payment |
| Packaging Details: | Carton Box or Negotiable |
| Part Name: | MX2507 Series |
| Voltage: | 12 V ( Customizable ) |
| Power Consumption: | 0 . 75 W ( Customizable ) |
| Air Flow: | 1 . 95 CFM ( Customizabl e) |
| Speed: | 12000 RPM ( Customizable ) |
| Bearing Type: | Ball Bearing |
1 Inch Micro Dc Brushless Fan / Air Purifier Air Cooling Small Computer Fan 12v 10000rpm

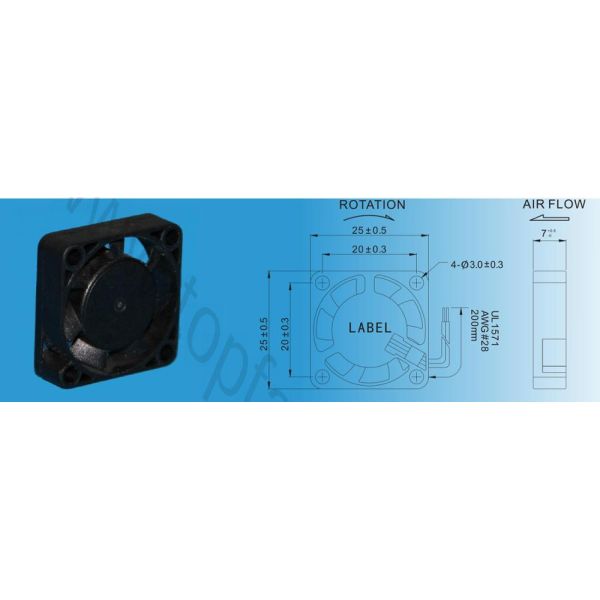

25 * 25 * 07mm 1 inch micro dc brushless fan made in Shenzhen China
for computer / air purifier air cooling 12V 10000RPM
| Bearing Type | Sleeve bearing & Ball bearing |
| Function Range | FG IP58 |
| Frame and Impeller | Plastic ( 94V - 0 ) , PBT |
| Operating Voltage | 5V 12V |
| Temperature range | – 20 ℃ to + 70 ℃ |
| Leadwire | Red Wire Positive ( + ) , Black Wire Negative ( - ) |
| Motor | Impedance Protected and Reverse Polarity Protected |

| If you want another rpm or voltage or special functionm Please contact with us directly |
| The size , voltage, power & speed can be made according to your requirements |
| Could be made with waterproof dustproof function |
| Could be made with control speed ( PWM ) read speed ( FG ) and alarm ( RD ) function |
| We ' re professional manufacturer of cooling fans for 11 years ' experience |
| We offer 30000 hours warranty for sleeve bearing fans , 50000 hours warranty for ball bearing fans |
| We can also provide fans with longer use time |
| On time delivery |
More photoes
Application
Topfan’s fan products are utilized by all type of machines which required heat
reduction systems ,
such as UPS systems ; Telecommunication equipments ; Ventilating
systems ; LED Digital
signage ; Disports / exercise equipments ; Medical instruments .
The products . including brushless fans . cross flow fans . blower fans .
centrifugal fans . dc brushless
motor . shades pole and RC ac fans etc. are being widely used in
the information technology . network
communications as well as industrial production equipment . medical
equipment . and others .
Factory
Shenzhen Topfan - China Development Technology Co . , Ltd , founded in 1996 in
Shenzhen China , is
a professional manufacturer on dc brushless fans and ac fans .
Products are CE , RoHS certificated
and good sellers both at home and abroad , including Europe , North
America , Asia ( Korea and India )
etc .
