Flexible Copper Conductor rubber insulated cable YZW 300/500V 1.5mm - 400mm

Categories Rubber Sheathed Cable
Brand Name: SHAN CABLE
Model Number: YC
Certification: CE/KEMA/CCC/TUV
Place of Origin: SHANGHAI CHINA
MOQ: 1000m
Price: USD 0.4 To 10.5 per Meter
Supply Ability: 8KM per Day
Delivery Time: 10-15 Days
Packaging Details: Wooden Case
Voltage: 450/750V
Size: 1.5mm2 to 400mm2
Conducotor: Flexible Copper
Insualtion: Rubber
Sheathed: Rubber
Place Of Origin: Shanghai
Corporation: shenghua group
Brand: Sh Cable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

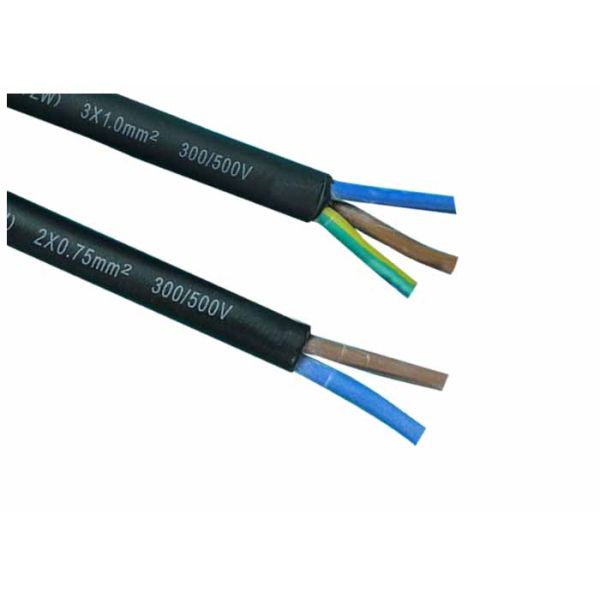

Flexible Copper Conductor rubber insulated cable YZW 300/500V 1.5mm - 400mm

Flexible Copper Conductor Rubber Insulation and Sheath Cable YZW 300/500V 1.5mm - 400mm Rubber Sheathed Cable


Application


This product is suitable for rated ac voltage 450/750v or below domestic appliaces,power-operated tools and various portable electric equipments.


Operation character


1) 60245IEC53(YZ),60245IEC57(YZW), model rated voltage Uo/U is 300/500V, 60245IEC66(YCW),YC rated voltage Uo/U is 450/750V.


2)Long time allow working temperature of wire core is not more than 65℃.


3)W model cable has the property of durability and suitable for cutdoor touching of greasy dirt.


4)ZR model cable has the property of fire-resistance.


Model name and usage


Model No.Product NameApplications
YQ,YQWLight model rubber sheath flexible cableUsed for light portable electric equipment and tools
YZ, YZWMiddle model rubber sheath flexible cableUsed for various portable electric equipment and tools
YC. YCWHeavy model rubber sheath flexible cableUsed for various portable electric equipment which can bear large mechanical force effect

Certificate


CE, RoHS, CCC, KEMA and more others at request


Insulation Color


Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow


Sheath Color


Black


Characteristics


1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.

2. Maximum permitted operating temperature of conductor is 60°C.

3. Permitted lowest working temperature is -35°C.

4. Cables can be used at places contaminated by mineral oil and fuel oil.


Size, weight and technological date


300/300V YQ/YQW light model


Cross-Sectional
Area mm2
Number diameter of coreOverall DiameterMax.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
minmax
2x0.316/0.154.35.869.271.23031.5
2x0.528/0.154.86.43940.14345.5
3x0.316/0.154.66.169.271.23638.5
3x0.528/0.155.16.73940.17477

300/500V YZ/YZW medium model


Cross-Sectional
Area mm2
Number diameter of coreOverall DiameterMax.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
minmaxCopperTinned-CopperYZYZW
2x0.7524/0.25.77.42626.781.789.6
2x132/0.26.1819.720123138
2x1.516/0.257.69.813.313.7185196
2x2.528/0.25911.67.988.21234252
2x456/0.310.613.74.955.09255276
2x684/0.311.815.13.33.39356371
3x0.7524/0.26.28.12626.797.4105
3x132/0.26.58.519.720112126
3x1.516/0.25810.413.313.7156174
3x2.528/0.259.612.47.988.212042019
3x456/0.311.314.54.955.09285302
3x684/0.312.616.13.33.39398423
4x0.7524/0.26.88.82626.7117125
4x132/0.27.19.319.720134148
4x1.516/0.25911.613.313.7186206
4x2.528/0.2510.713.87.988.21255270
4x456/0.312.713.84.955.09356374
4x684/0.31417.93.33.39465482
