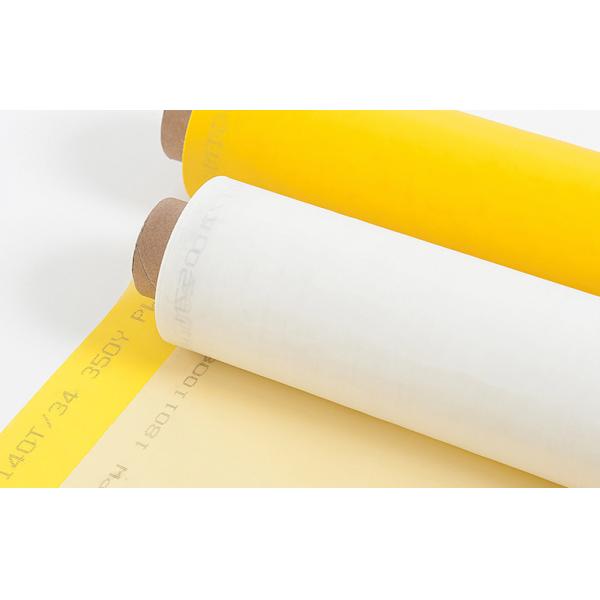

Silk screen mesh 100% Polyester Monofilament fabric plain weave
Descriptions
Polyester Screen Printing Mesh is one of the most advanced high-tech mesh fabric products for screen printing.
With high quality material, Reking produces super quality polyester
and polyamide bolting cloth for screen printing. Reking also have
the most advanced testing instruments and technicians well trained
to guarantee a reliable quality.Our factory is the direct factory of producing all kinds of
polyester fabrics for many years , According to standard with
-class monofilament, which makes the polyester spiral fabric, has
the characteristic of stable property and long work time .
Characteristics
- Faster tensioning without damage to the threads
- Improved fabric strength
- Faster tension stabilization
- High-tension threshold and breaking point
- Less tension loss during the stretching process
- Faster turnaround time from the screen room to the pressroom
- Improved registration due to stable tension
- Faster print speeds
Specifications
| Specification | Mesh Count | Thread Dia | Aperture | Opening | Thickness | Theoretica Ink Volume | Tensile Strength |
| T | mesh/inch | micron | micron | % | micron | C㎡/㎡ | n/cm |
| 10-250 | 25 | 250 | 740 | 53 | 465 | 246 | 60 |
| 16-200 | 40 | 200 | 435 | 47 | 420 | 189 | 48 |
| 20-140 | 50 | 140 | 340 | 46 | 280 | 129 | 52 |
| 24-100 | 60 | 100 | 316 | 58 | 190 | 109 | 48 |
| 24-120 | 60 | 120 | 300 | 51 | 210 | 105 | 42 |
| 32-100 | 80 | 100 | 200 | 43 | 160 | 69 | 42 |
| 36-100 | 90 | 100 | 178 | 41 | 175 | 72 | 42 |
| 39-55 | 100 | 55 | 201 | 62 | 100 | 62 | 30 |
| 39-80 | 100 | 80 | 172 | 46 | 142 | 65 | 42 |
| 43-80 | 110 | 80 | 150 | 41 | 130 | 55 | 35 |
| 48-70 | 120 | 70 | 135 | 41 | 115 | 46 | 32 |
| 53-55 | 135 | 55 | 134 | 50 | 105 | 53 | 34 |
| 54-64 | 137 | 64 | 115 | 39 | 102 | 40 | 30 |
| 59-55 | 150 | 55 | 100 | 40 | 93 | 39 | 32 |
| 64-55 | 160 | 55 | 101 | 42 | 105 | 44 | 30 |
| 64-64 | 160 | 64 | 90 | 32 | 106 | 34 | 35 |
| 72-48 | 180 | 48 | 94 | 46 | 80 | 37 | 32 |
| 72-55 | 180 | 55 | 75 | 29 | 92 | 27 | 32 |
| 77-55 | 195 | 55 | 70 | 25 | 88 | 24 | 29 |
| 80-48 | 200 | 48 | 78 | 30 | 84 | 24 | 29 |
| 80-55 | 200 | 55 | 70 | 25 | 88 | 24 | 29 |
| 90-48 | 230 | 48 | 55 | 25 | 78 | 20 | 33 |
| 100-40 | 250 | 40 | 58 | 32 | 65 | 21 | 29 |
| 110-40 | 280 | 40 | 48 | 27 | 65 | 17 | 30 |
| 120-34 | 300 | 34 | 45 | 30 | 55 | 16 | 30 |
| 120-40 | 300 | 40 | 40 | 20 | 55 | 16 | 29 |
| 140-31 | 350 | 31 | 35 | 26 | 48 | 13 | 27 |
| 140-34 | 350 | 34 | 30 | 20 | 55 | 10 | 30 |
Applications
Polyester printing mesh can be used in paper making industries ,we
use the best quality yarn to produce the polyester
forming fabric , so our product can be used very long usage time .
