NTN Single row cylindrical roller bearings NU322G1C4

Categories Cylindrical Roller Bearing
Place of Origin: Japan
Brand Name: NTN
Model Number: NU322G1C4
Price: FOB
Packaging Details: Carton Box
Delivery Time: within one day
Payment Terms: T/T In advance
Supply Ability: 5000PCS
MOQ: 1PCS
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

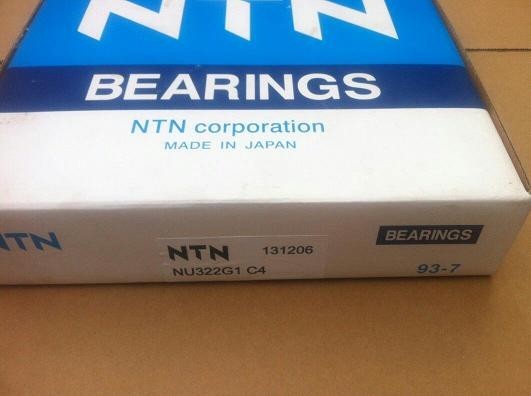

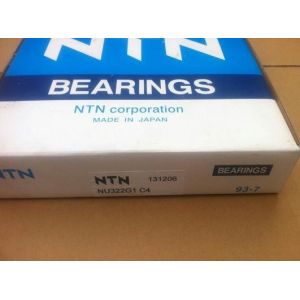

NTN Single row cylindrical roller bearings NU322G1C4


Technical data NU322G1C4

Product definition
d110 mm
D240 mm
B50 mm
E207 mm
F143 mm
rs min3 mm
r1s min3 mm
Radial clearance classC4
Mass (without HJ ring)11 kg
BrandNTN
Product performance
Dynamic load, C36,000 daN
Static load, C040,000 daN
Fatigue limit load, Cu4,120 daN
Nlim (oil)3,500 rpm
Nlim (grease)3,000 rpm
Min operating temperature, Tmin-40 °C
Max operating temperature, Tmax120 °C
Abutment dimensions
da min123 mm
da max140 mm
db min145 mm
Da max227 mm
ra max2.5 mm
r1a max2.5 mm

Type Type NTN Part NO Description
H E NU322ET2 Large Cylindrical Roller Bearing
H E NU322ET2C3 Large Cylindrical Roller Bearing
H E NU322G1 Large Cylindrical Roller Bearing
H E NU322G1C3 Large Cylindrical Roller Bearing
H E NU322G1C3P6 Large Cylindrical Roller Bearing
H E NU322G1C4 Large Cylindrical Roller Bearing
H E NU322G1C4P6 Large Cylindrical Roller Bearing
H E NU322G1CM Large Cylindrical Roller Bearing
H E NU322G1P5 Large Cylindrical Roller Bearing
H E NU322G1P6 Large Cylindrical Roller Bearing
H E NU322SMG1 Large Cylindrical Roller Bearing
H E NU324 Large Cylindrical Roller Bearing
H E NU324C3 Large Cylindrical Roller Bearing
H E NU324EG1 Large Cylindrical Roller Bearing
H E NU324EG1C3 Large Cylindrical Roller Bearing
H E NU324G1 Large Cylindrical Roller Bearing
H E NU324G1C3 Large Cylindrical Roller Bearing
H E NU324G1CM Large Cylindrical Roller Bearing
H E NU324G1CMU41 Large Cylindrical Roller Bearing
H E NU324G1PX7 Large Cylindrical Roller BEARING
