DIP Mounting Stacked RJ45 Connectors Modular Jack With 5G Integrated Transformer

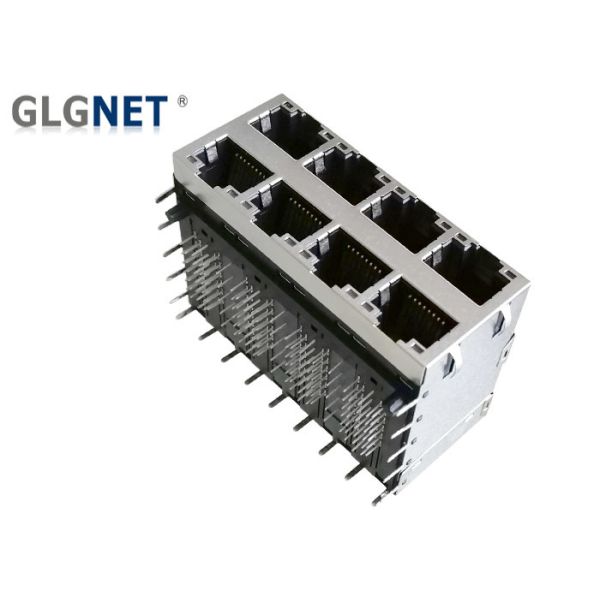

Stacked RJ45 Modular Jack with 5G Integrated Transformer 2x4 RJ45 Connector

1) 5G 2x4 Stacked RJ45 Connectors (JDLM4T86C ) Attributes:

2) 5G 2x4 Stacked RJ45 Connectors (JDLM4T86C ) Materials

1. Housing: Class Filled PA46(BLACK) UL94V-0 (ROHS)
2. Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 0 Microinches Gold At Mating Interface;
3. Shield: 0.2mm Thickness With Brass
4. Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
5. The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
6. Operating Temperature: 0 ℃ to +70 ℃
7. Storage Temperature: -40 ℃ to +85 ℃

3) 5G 2x4 Stacked RJ45 Connectors (JDLM4T86C ) Electronical Specifications

4) 5G 2x4 Stacked RJ45 Connectors (JDLM4T86C ) Applications

Networking equipment

• Hubs
• Switches
• Routers
• PCs
• Servers
• IDC
• Workstations
• Motherboards

Equipment utilizing a network port

• NICs
• Servers
• PCs
• Consumer Devices

5) Customization Services

• 90 ° or 180 ° Orientation
• Single Port or Multiple Port, Ganged structure or Stacked Structure;
• With or without POE function;
• Tab - up or Tab - Down, With or without Transformer, Shielded or Plastic (supports different color)
• Custom the soldering terminal length as requirements
• LED color can be green, yellow, orange, red and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
• Contact Finish can be with 3u", 6u", 15u", 30u", 50u" gold plating;
• Being with or without EMI TAB ( EMI Spring , EMI Finger );
• Being with or without lightpipes/LEDs
• Printing LOGO

6) 5G 2x4 Stacked RJ45 Connectors (JDLM4T86C ) Mechanical Drawing :
