5700K LED Grille Downlight 50 60Hz DALI Dimming 2100 Lumen

Categories LED Grille Downlight
Brand Name: LEDFULGOR
Model Number: FG05-EG10-30W
Certification: CE SAA RoHS
Place of Origin: Guangdong, China
MOQ: 30 PCS
Price: Negotiation
Payment Terms: T/T, Western Union
Supply Ability: 20,000 PCS per month
Delivery Time: 10 - 15 days
Packaging Details: L56*W31*H22cm 15pcs/CTNS
Power: No dimming/TRIAC/0-10V/ DALI dimming optional
Lighting Effect: 60-70lm/w
Color Temperature(CCT): 3000K/4000K/5700K selectable
Working Temperature: -20℃ to 55℃
Luminous Flux: 2100lm
IP Rating: IP20
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

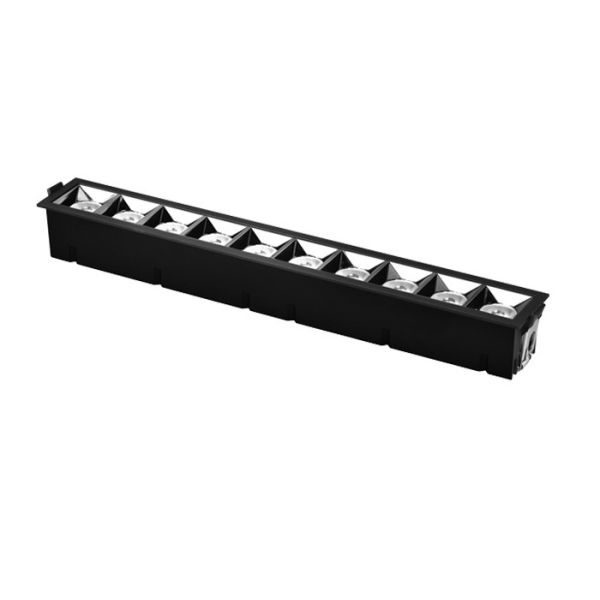

5700K LED Grille Downlight 50 60Hz DALI Dimming 2100 Lumen

5700K 60-70lm/W 100-277V LED Grille Downlight 50/60Hz Led DALI Dimming 2100lumen


Details:

Model NumberFG05-EG10-30W
Brand NameLED Fulgor
Voltage100-277V 50/60Hz
MaterialAluminum+PMMA
LED SourceSMD5050
LED DriverLifud
Power30w
DimmingNo dimming/TRIAC/0-10V/ DALI dimming optional
Lighting Effect60-70lm/w
Color Temperature(CCT)3000K/4000K/5700K selectable
CRI (Ra>)≥80
UGR<16
Luminous Flux2100lm
HousingAluminum White/Black



Features:

1. Overall aluminum shell, simple and generous design.
2. High-quality thick aluminum material, perfect hear dissipation, and longer lifespan.
3. These Grille LED downlights to consume less power compared with conventional commercial lighting products.
4. Easy to transport: solid light, anti-vibration; not afraid to throw and pressure.

5. No noise, no Strobe, Without UV light.
6. It's offering high light output, 50,000 hours life, with excellent light stability and color, render.

7. Under the same lighting effects, 3W LED light bulb can replace the 60W incandescent bulbs.
8. The LED Grille downlight is ideally suited to High-level hotels or supermarkets were a directional beam of light is required in multiple directions.


Quality control:

All our products are subject to 5 kinds of inspection in the production process: raw material inspection, lamp bead inspection, aluminum plate inspection, power inspection, finished products need to pass the 24-hour aging test.


Installation Steps:


1. The wires of the lamp body connect with the wires reserved at home.
2. Open the lamp body shrapnel, then insert the wire together into the hole reserved at home to fix the lamp body.
3. Adjust the position of the lamp body, finish the installation.

Routine maintenance :


1: To ensure better lighting, please clean LED lights once a year.
2: Please make sure the power is off before your maintenance work.
3: To avoid any damage to the lamp, please do not use the chemical solvent during routine maintenance.
4: If you need to replace any components or cords of the lamp, please choose those having the same specifications.
