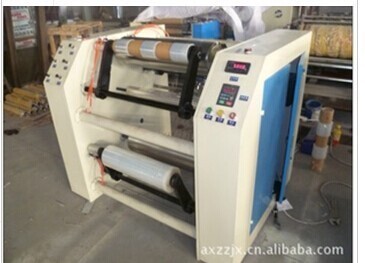

YYRW Series Semi-automatic Stretch Film Rewinder Machine
Feature:
1. It is a kind of multi-functional machine integrated with slitting and rewinding.
2. It mainly slits large-sized or big roller stretch film into small ones, which avoids the split-level film and improves the technical index of product, such as level and appearance quality etc.
Main technical specification
Model | YYRW-500A | YYRW-600A |
Width of Finished Product | 500mm | 600mm |
Power of Motor | 1.5kw | 2.2kw |
Design Line Speed | 400m/min | 400m/min |
Roll Laying Mode | By hand | By hand |
Max. Diameter of Parent Roll | 400mm | 400mm |
Max. Width of Parent Roll | 500mm | 600mm |
Core Specification of Parent Roll | 3” | 3’’ |
Max. Width of Sub-roll | 500mm | 600mm |
Max. Diameter of Sub-roll | 200mm | 200mm |
Core Specification of Sub-roll | 3” 2” 1” | 3” 2” 1” |
Dimension | 1.5×1.3×1.5m | 1.5×1.4×1.5m |
Weight | 600kg | 800kg |
