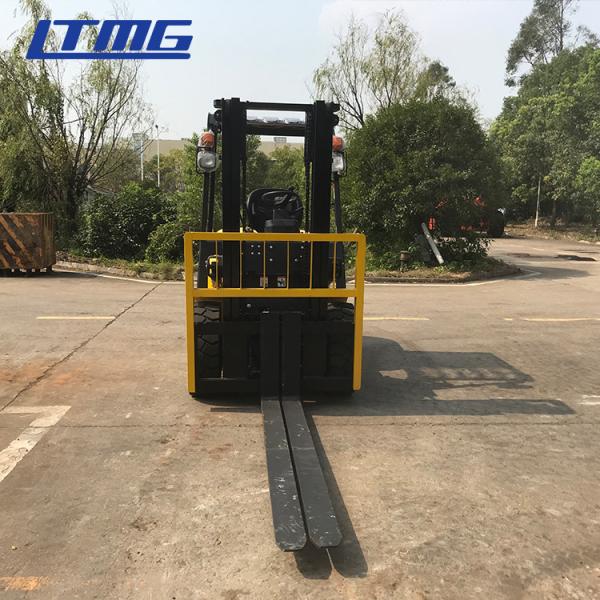

3 Ton Diesel Japanese engine Forklift Truck With 4500mm Triplex Mast Forklift And Free Parts

Categories Diesel Forklift
Brand Name: LTMG
Model Number: FD30
Certification: CE/ISO
Place of Origin: China
MOQ: 1/unit
Price: USD 7000-7600/Unit
Supply Ability: 500 Set/Sets per Month
Delivery Time: 30days
Packaging Details: Nude packing, fixed in containe
Payment Terms: L/C, T/T, Western Union, MoneyGram
Model: FD30
Manufacturer : LTMG
Load capacity : 3000kg
Engine: Chinese or Imported engine
Wheelbase : 1800mm
Ground clearence : 140mm
Fork size : 1070mm*125mm*45mm
Max. lifting height : 3000mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3 Ton Diesel Japanese engine Forklift Truck With 4500mm Triplex Mast Forklift And Free Parts


Specifications of 3 ton diesel forklift:


General1ModelFD30
2Power TypeDiesel
3Rated Capacitykg3000
4Load Centremm500
Characteristic&Dimension5Lift Heightmm3000
6Fork SizeL×W×Tmm1070×125×45
7Mast Tilt AngleF/RDeg6°/12°
8Front Overhang (Wheel center to fork face)mm480
9Ground Clearance(Bottom of mast)mm140
10Overall DimensionLength to face of fork(Without fork)mm2780
11Overall Widthmm1230
12Mast Lowered Heightmm2115
13Mast Extended Height(With backrest)mm4175
14Overhead Guard Heightmm2110
15Turning Radius (outside)mm2520
Performance16SpeedTravel (Empty load)km/h20
17Lifting (Full load)mm/s510
18Max.Gradeability (No load/Full load)%20
Chassis19TireFrontmm28×9-15-12PR
20Rearmm6.50-10-10PR
21Wheelbasemm1800
22Service weightkg4250
Power&Transmission23BatteryVoltage/CapacityV/Ah12/80
24EngineModelC490
25ManufactureXINCHAI
26Rated output/r.p.m.kw40/2650
27Rated torque/r.p.m.N·m160/1600-2000
28No.of Cylinder4
30Displacementcc2670
31Fuel Tank CapacityL70
32TransmissionTypeHydraulic
33StageFWD/RVS1/1


Main features:

ex.1 Tips on Hydraulic Oil

1 Keep the hydraulic system clean. Avoid water, other oils, dirt and other impurities mixing with oil.
2 The oil tank should maintain at a certain height. The oil temperature should not exceed the permitted range during operating.
3 Hydraulic piping system should be thoroughly cleaned when changing the oil. The new hydraulic oil must be filtered before injection in oil tank. We recommend to replace hydraulic oil after using one year.
4 Can not replace the hydraulic oil with waste oil.

ex.2 Tips on Tires

1. Always check
2. One should regularly change the tires left and right for the two tires wearing of the two tires are not the same.
3. Ensure the left and right tires are the same when changing the old tyre. Try your best to make sure the tyre before and after are the same too.
4. Do not overload, partial load.
5. Reasonable driving, minimize the brakes
6. Safekeeping. Anti-sun, anti-high temperature or burning, anti-acid or oils corrosion, anti-moisture.


After-sale service:
Nowadays we have been sell more than 100 countries. All the products of LTMG supplied withone year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.

Detail clauses and policies please see to our website and product's quality certificate.


FAQ:

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
