AL/XLPE/PVC-0.6/1KV Electrical Power Cable Four Core Aluminum Conductor

Categories XLPE Insulated Power Cable
Brand Name: SHANCABLE
Model Number: YJLV 0.6-1KV
Certification: ISO,CE,IEC,TUV,KEMA
Place of Origin: Shanghai, China
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Delivery Time: 10 Days
Packaging Details: Wooden Drum
Name: Electrical Power Cable
Conductor: Compact stranded Aluminum conductor, Cl.2 as per IEC 60228
Insulation: XLPE (cross-linked polyethylene) rated at 90 OC
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black
Standard: IEC 60228
Applications: laying indoors and outdoors
Corporation: shenghua group
Brand: Sh Cable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

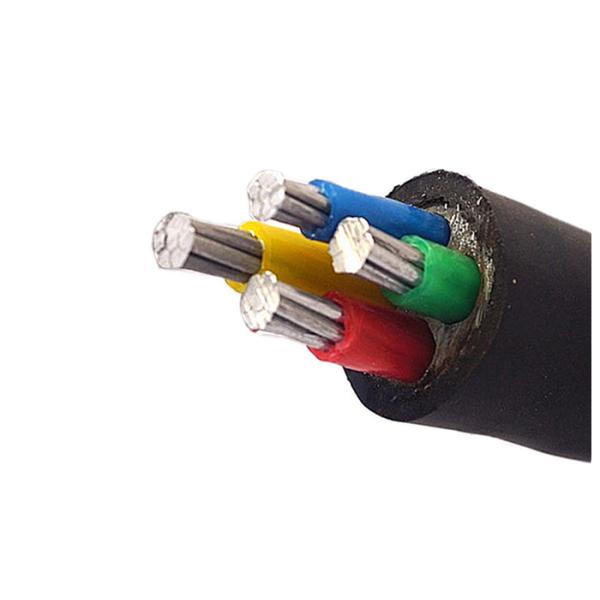

AL/XLPE/PVC-0.6/1KV Electrical Power Cable Four Core Aluminum Conductor

IEC 60502-1 IEC 60228 XLPE Insulated Power Cable High Electric Strength

Construction


Conductor : Compact stranded Aluminum conductor, Cl.2 as per IEC 60228

Insulation : XLPE (cross-linked polyethylene) rated at 90 OC

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black


Applications


For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.


Standards


International: IEC 60502-1, IEC 60228,

China: GB/T 12706, (GB/T 18380-3 for ZR-YJLV only)

Other standards such as BS,DIN and ICEA upon request


Technical data


Rated voltage:0.6/1kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core


Certificates


CE, RoHS, KEMA and more others at request


Commercial Items: MOQ: 200m

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Wooden Iron drum or we can offer whole steel drum if requested by client.


Specifications


Nom. Cross-section of conductorStrands No./Dia. Of ConductorInsulation ThicknessSheath ThicknessApprox. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃)Testing Voltage A.CCurrent Rating
mm2pc/mmmmmm(mm)kg/kmΩ /kmkV/5minIn air (A)In soil(A)
4 × 41/2.250.71.813.01557.413.52736
4 × 61/2.760.71.814.01844.613.53546
4 × 107/1.380.71.817.02583.083.54759
4 × 167/1.780.71.820.03661.913.56480
4 × 257/2.140.91.823.05401.2003.582100
4 × 357/2.520.91.8256860.8683.5100120
4 × 5010/2.521.01.8239070.6413.5125145
4 × 7014/2.521.11.82711920.4433.5155175
4 × 9519/2.521.11.93115980.3203.5200210
4 × 12024/2.521.22.03319490.2533.5220240
4 × 15030/2.521.42.23825170.2063.5250270
4 × 18537/2.521.62.34230910.16403.5295305
4 × 24048/2.521.72.54738250.12503.5345355
4 × 30061/2.521.82.65248300.10003.5395400
4 × 40061/2.972.03.16658400.07783.5445445

Details


FAQ


Q1. Are you a factory or trading company?

We are factory in Hebei,China.


Q2. When can I get quotation for cable?

We usually quote within two hours after we received your inquiry. If you are urgent to get the unit price, please let me know. We can quote it ASAP.


Q3. How can I get the sample to check the quality?

When you confirm the quotation, we can offer you the sample for free. You just need to pay the freight.


Q4. What about the lead time for mass production?

It depends on your order quantity. If we have stock, 5 days is OK. If custom products, usually it's need 12 days.


Q5. Do you have OEM products?

Sure, we can make cables as you want. We can change the color and logo on cable as you want.

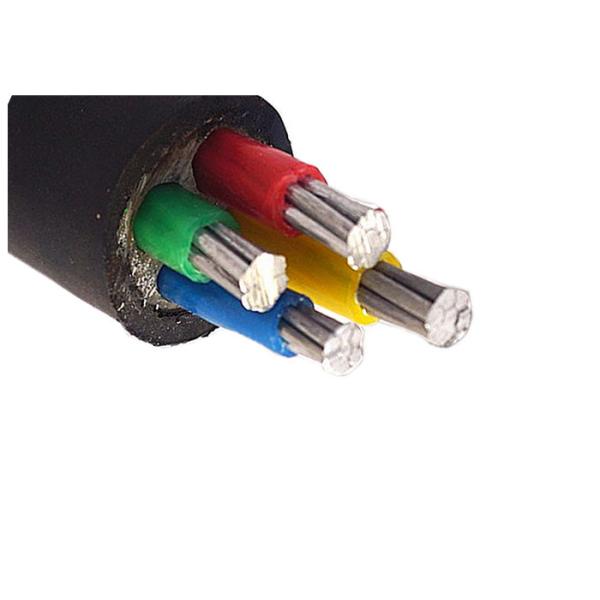

Buy AL/XLPE/PVC-0.6/1KV Electrical Power Cable Four Core Aluminum Conductor at wholesale prices
