15mm Multi Cut Spiral Paper Tube Making Machine

Categories Paper Tube Making Machine
Brand Name: tiansheng
Model Number: 60type
Certification: ISO9001
Place of Origin: China
MOQ: 1set
Price: usd12500set
Payment Terms: T/T
Supply Ability: 5 set per month
Delivery Time: 45days
Packaging Details: Stretch film
Condition: New
Product type: Core Tube Making Machine
Processing type: Paper tube making machine
Warranty: 1 Year
diameter: 15-60(mm)
Thickness: 1-5(mm)
Minimum tube length: 90mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

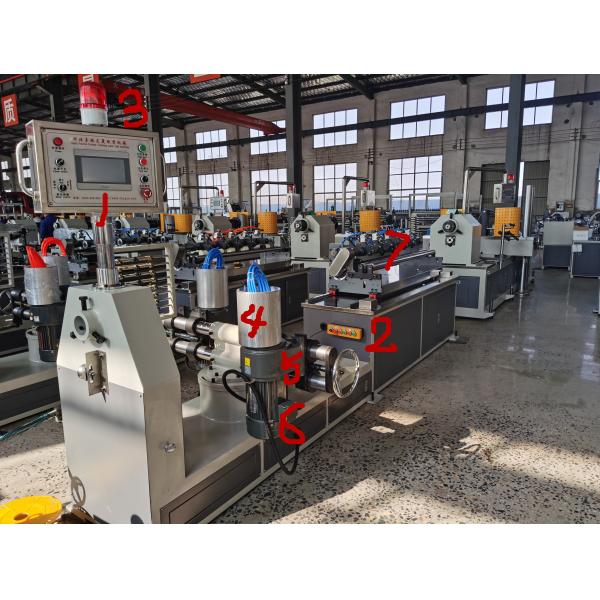

15mm Multi Cut Spiral Paper Tube Making Machine


TSJG-60 Multi Cut Spiral Paper Tube Core Winding Machine


Technical parameters



Model

TSJG-60 Two-Head Multi-Tool CNC paper tube Machine

Technical parameter

Control system

paper layer

2-7 plies

PLC controller

Special products

Inner diameter of tube
15-60(mm)
Interface

Special products

Thickness of tube
1-5(mm)
Program version
CX-P9.04

Minimum tube length
90mm
Invertor

ENERGY

Speed
0-20(m/min)
Main execution device

CHINT

Fixed length mode

Numerical control
Button
Siemens

Winding head

Double head single belt
Stop
Siemens

Cutting type

CNC Automatic Tracking for Cutting
Knob
Siemens

Fixing Method of Core winding mould

Bolt tightening

Signal elements

HUGONG

Gluing way

Double sides glue

Pneumatic components

Suopai/Tianao/Chengdi

control mode

Frequency control

Cylinder
AirTAC

Input voltage
380V/220V
Solenoid valve
AirTAC

Blade
5 pcs
Synchronized tracking tube cutting system

EURA servo motor

Number of operators
1-3人
Configuration device
Size(mm)
Cutting table surface

Stainless steel table-board

Main machine:L*W*H
4300*1500mm*1800mm
Paper holder type

Fixed right-angle paper rack

Coverage: L*W
11000mm*5000mm
Glue supply

Automatic circulation glue, heating glue tank

Hub diameter
200mm
Lubricating oil supply

Automatic lubrication stainless steel basin

Hub height
300mm
Bottom paper breaking

Automatic alarm

Main machine weight
980kg
Tension regulation

Mechanical adjustment

Total weight
1525kg
Device of bottom and surface paper

Stainless steel bottom paper holder,
face paper basin

Drive system

Guide wheel

Stainless steel pipe

Main power
2*2.2kw
SEIMEC from Shanghai

Coil mandrel
1 pcs

Main engine speed
1400r/min
Coil belt
1 pcs

Max. speed of hub
72r/min
Application tools

Inner hexagon 1 SET

Hub Output Torque
4000N.m

Wheel hub drive

2 wheel drive

Cutting-blade motor
1.5kw 1:10
OTG from shanghai

Linear guide rail

square


our client

Companies rely on scientific andtechnological progress, the introduction ofhigh technology, is committed to newproduct development and technologyimprovement, and is equipped with perfectsales network and service system, theproducts have been sold all over thecountry, but also with domestic and foreigntrade import and export companycooperation, products have been exportedto South Asia, West Asia, Middle East, Africa, North and South America, Russia, Ukraine and other countries. At present, thecompany has set up its own foreign tradesales department, will further developforeign trade.
