3MM Cabron Steel Galvanized Tube Welding Machine

3MM Cabron Steel Galvanized Straight Seam Tube Pipe High Frequency Welding Making Machine

General Introduction

Φ60high-frcquency welded pipe production line is designed to produce welded pipes of 20～76mm in diameter and 0.8～3.0mm in wall thickness as well as square and rectangular pipes .

Main Technical Specifications:

Main Specifications:

Pipe Diameter: φ20-76mm

Wall Thickness: 0.8 ～ 3.0mm

Pipe Length: 4 ～ 10m

To-length Accuracy: ±3mm

Raw Material Conditions:

Low carbon steel and low alloy constructional steel

Mechanical Characteristics:

σb≤500Mpa σs≤300Mpa

Width of Strip: 60 ～ 240mm

Thickness of strip: 0.8 ～ 3.0mm

Inner Diameter of Coil: φ508mm

Outer Diameter of Coil: ≤1600mm

Weigh of Coil: ≤2.0T

Forming Speed: 0 ～ 70m/min

Total Power: About 400Kw

Technological Process:

Uncoiling → Shearing and welding → Horizontal accumulator → Forming → Welding → Deburring →Cooling → Sizing → Flying saw cutting → Pipe collecting

Main Equipment and Main Data

Uncoiler

Shear Welder

Accumulator

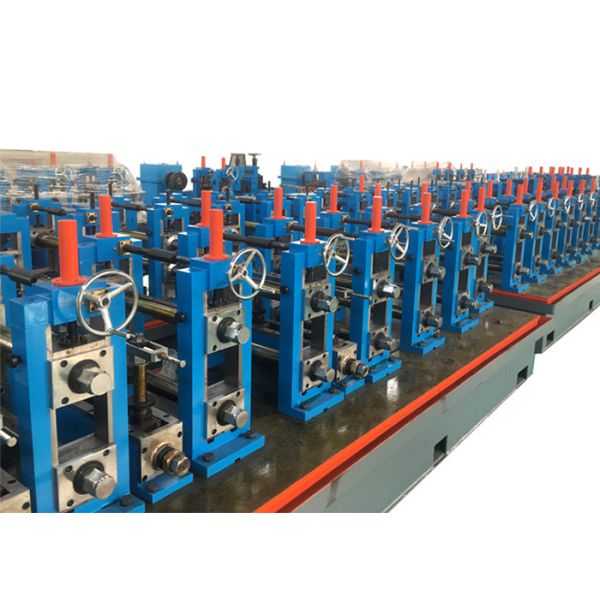

Forming and Sizing Mill

Flying Saw

Notes to the quotation

Construction of building and inner arrangement except the machine members mentioned above.

All the foundation for the machines and the conduits for the course of the various feedings of line.

All the foundation for the machines and the conduits for the course of the machines, including air compressor, water pump, channels and vent stacks for the exhaust of the gaseous products, solder wire, impeder, CO₂gas etc.

Switchboard and its correcting cables and wires.

All the connecting cables and wines except those in the machines.

Lifting system (bridge crane and devices for internal transportation of steel coils and pipe products).
