Beach Portable Light Gauge Steel House Prefabricated 3 Floors Free Design

Categories Light Gauge Steel House
Brand Name: Sussman
Model Number: SU-LV
Certification: CE; ISO
Place of Origin: China
MOQ: 50 square meters
Price: USD180-USD250 per square meter
Supply Ability: 500 square meter per week
Packaging Details: plastic film
Type: Portable House Prefabricated Villa
Wind-proof: maximum 60 meters per second
Snow resistance: maximum 2.9KN/M2 as required
Buiding height: max 3 floors
Certificate: CE/ISO/SGS
anti-seismic: 7 degree
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

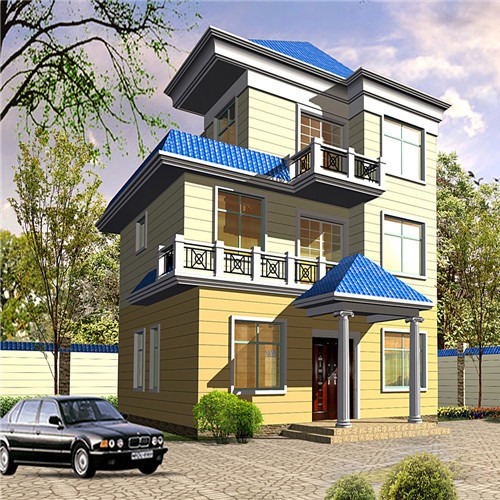

Beach Portable Light Gauge Steel House Prefabricated 3 Floors Free Design

Light Gauge Steel Structure Frame Beach Portable House Prefabricated Villa With Free Design


Advantages:

(1). Environment protective, no garbage caused
(2). Doors, windows and interior partitions can be flexibly fixed
(3). Beautiful appearance, different colors for the wall and roof.
(4). Cost saving and transportation convenient
(5). Anti-rust and normally more than 15 years using life
(6). Safe and stable, can stand 8 grade earthquake.

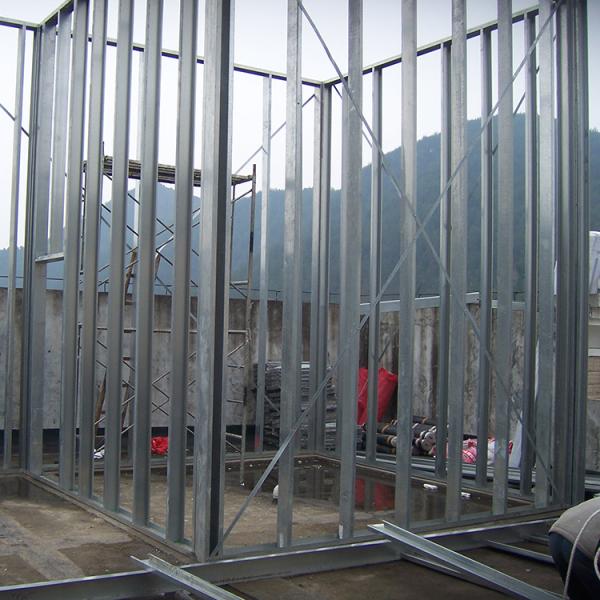

1. Main Steel Frame
Steel columnFabricated by Q235 or Q345 Steel, 80*80 or 100*100 or 120*120 or 150*150 Square Tube, alkyd paiting, two primary painting, two finish painting.

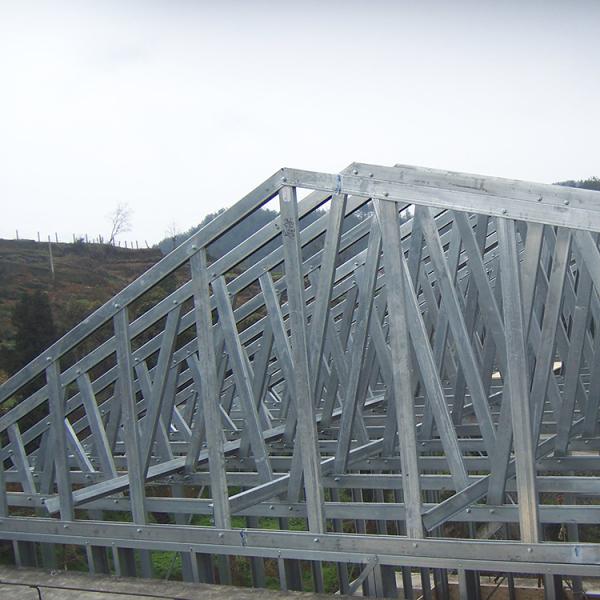

Triangular Steel structure roofFabricated by Q235 or Q345 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Roof PurlinFabricated by Q235 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Ordinary bolt4.8S, Galvanized
2. Roof and Wall
Roof Panel

A: Insulated Steel Sandwich Panel wall
(1) Panel width: 950mm;
(2) Thickness: 50-1200mm.
(3) Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm


B: Insulation: Polystyrene, Rockwool, Fiber Glass or Polyurethane
(1) Density of Rockwool: 120Kg/m3
(2) Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3
(3) Density of Polyurethane: 40Kg/m3
(4) Density of Fiber Glass:40Kg/m3, 60Kg/m3

Wall Panel

A: Insulated Steel Sandwich Panel wall
(1) Panel width: 950mm;
(2) Thickness: 50-1200mm.
(3) Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm


B: Insulation: Polystyrene, Rockwool, Fiber Glass or Polyurethane
(1) Density of Rockwool: 120Kg/m3
(2) Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3
(3) Density of Polyurethane: 40Kg/m3
(4) Density of Fiber Glass:40Kg/m3, 60Kg/m3

Edge Cover0.4mm galvanized color steel , angle Alu.

Fasteners &

Accessoreis

Nailsglue ect
3. Ceiling&Flooring
Ceiling6mm gypsum board,with steel keel
Plywood18mm film faced plywood
Floor feather1.5mm PVC floor leather
Door and window
Door(1) External door: Single open door. Insulated with opening dimension 950*2100mm, furnished with lock with 3keys.
(2) Inner door: Single open door. Insulated steel door.
Window4mm glass PVC window witn flying screem
4. Electrical System
Electric Cable(1) Three diferent color.
(2) Lighting: 2.5m m2.
(3) Air condition: 4.0mm2.
(4) BV cable, solid core.
PVC Wire ChannelPVC wire channel
LightsDouble tube fluorescent lamp, 220V,50-60HZ
SwitchesSingle Switch, with junction box
Socket16A five hole univesal socket.
Power Distribution CabinetBox+breakers+earth leakage protective device
5. Water&Plumbing system(choose)
Water drain pipe(1) PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
(2) Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
Sanitary ware(1) Western Close tool: ceramic, with pipes and installation fittings
(2) Urinal: ceramic, with pipes and installation fittings
(3) Wash basin: ceramic, with post, faucet, pipes and installation fittings
(4) Shower head, Shower base, Water mixture
6. Plumbing System and Rain Water Drainage System as per building design
