| Categories | Heavy Duty Dump Truck |
|---|---|
| Brand Name: | Sinotruk Howo A7 |
| Model Number: | ZZ3257N3247P1 |
| Certification: | ISO CCC |
| Place of Origin: | Jinan China |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 units per month |
| Delivery Time: | Within 25-30 work days after receive order |
| Packaging Details: | Nude, Polished with wax before shipping |
| Product name: | Sinotruk Howo A7 10 Wheel 6x4 Heavy Duty Mining Dump Truck |
| Dimension(Lx W xH)(unloaded)(mm): | 7665x 2496x3490 |
| Cargo body size (L*W*H, mm): | 4800x2300x1500 |
| Cargo body thickness(mm): | bottom:8mm, side:4mm |
| Lift type of Carriage: | middle lifting |
| Engine Model: | WD615.69, 336hp |
Mining 10 Wheeler Dump Truck Heavy Duty Commercial Trucks ZZ3257N3247P1

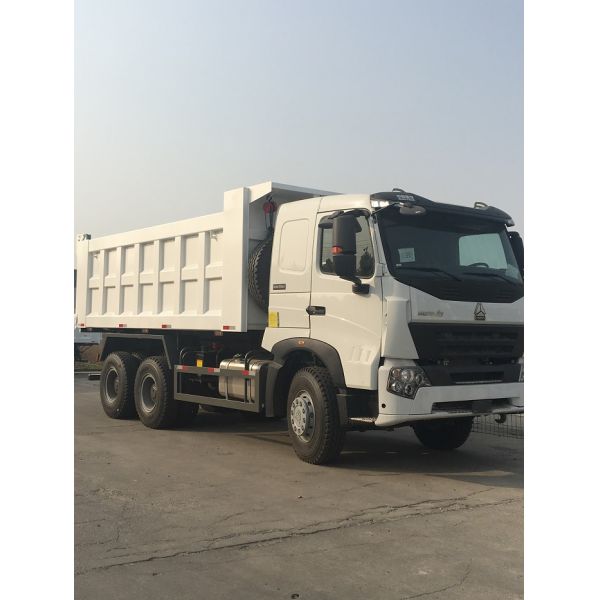

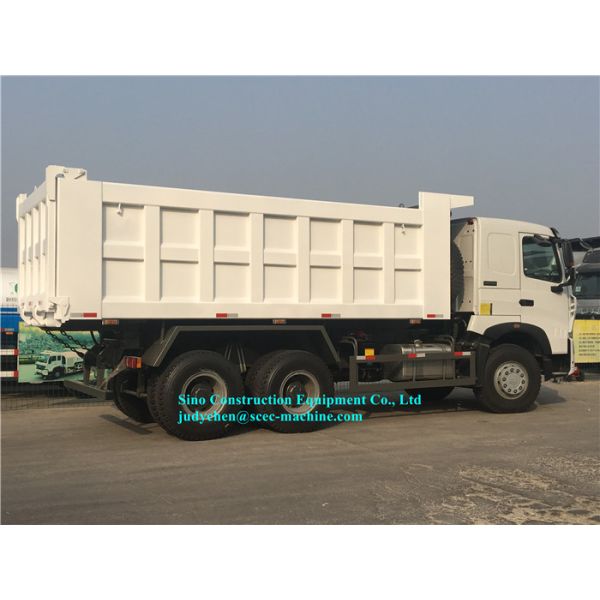

Sinotruk Howo A7 10 Wheel 6x4 Heavy Duty Mining Dump Truck ZZ3257N3247P1
Technical specification of Sinotruk Howo A7 10 Wheel 6x4 Heavy Duty Mining Dump Truck ZZ3257N3247P1
| Truck Model | ZZ3257N3247P1 | ||
| Truck Brand | SINOTRUK –HOWO A7 | ||
| Driving Type | Left Hand Driving | ||
| Dimension(Lx W xH)(unloaded)(mm) | 7665x 2496x3490 | ||
| Cargo body size (L*W*H, mm) | 4800x2300x1500 | ||
| Cargo body thickness(mm) | bottom:8mm, side:4mm | ||
| Lift type of Carriage | middle lifting | ||
| Approaching angle/Departure angle(°) | 20/29 | ||
| Overhang(front/rear) (mm) | 1540/1550 | ||
| Wheel base (mm) | 3225+1350 | ||
| Max speed(km/h) | 78 | ||
| Curb weight(kg) | 11950 | ||
| Loading Weight(kg) | 25000 | ||
| Fuel tanker capacity(L) | 300 | ||
| Fuel consumption(L/km) | 20-30 L/100 km | ||
| Clutch | Single-plate dry clutch Φ430mm | ||
Engine Model | Fuel Type | Diesel | |
| Engine Brand | Sinotruk | ||
| Horse Power, max(kw/rpm) | 336hp | ||
| Emission | EURO 3 | ||
| Model | WD615.69 | ||
| Transmission | Model | HW19710 | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake | Engine exhaust brake | ||
| Steering system | Model | hydraulic steering with power assistance Ratio:22.2—26.2 | |
| Front axle | HF9 disc brake, Steering with double T-cross section beam Loading capacity:9000kg | ||
| Rear axle | AC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity:2x13000kg Ratio:5.45 | ||
| Color | Optional(Waiting for picture to confirm) | ||
| Tire | 12.00R20 | ||
| Tire quantity | 12+1 Spare | ||
Electrical system | Battery | 2X12V/180Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
| Cab | A7—W standard cab with air conditioner. 4 point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat,etc. | ||




Features of Sinotruk Howo A7 10 Wheel 6x4 Heavy Duty Mining Dump Truck ZZ3257N3247P1
1. Oil Saving--two kinds of technology route (electric control
common rail and EGR), engine characteristic performance curve
Improvement, entire car optimizing assembly, empty / full load
switch, the latest streamline driving cab reducing wind resistance
effectively, reducing self weight by 200--500kg, and etc.
2. Safety--drum brake, tubeless tire, exhaust valve brake technique
application, rear axle brake shoe widening, and etc.
3. Driving comfort-- New style air bag seat, four point floating
suspension with anti-roll bar, damping device for the cab, double
locking seat belt, outside sun shade, drum brake solving brake sway
in case of over load, and etc
4. Reliability--all the assembly has passed extremely harsh
condition experiments and the verification of over 2 years in bad
use condition.
5. Low application cost--large use quantity, complete service and
accessory networks and low price.
Our services:
Professional Production Team:
Experienced Sales,Provide Clients High Assembling for Fast Quality Delivery
Customize:
Professional Design Team Provide Suitable Programs and Customized
7*24H Service
7*24H Service Provide Professional Fast Response
Parts Support:
Abundant Parts Supply Provide Lasting Support for Worldwide Clients
|
