| Categories | Diesel Forklift Truck |
|---|---|
| Brand Name: | Lonking |
| Model Number: | LG50DT |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | One set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500Unit/Units per Month |
| Delivery Time: | 30-35 Work days |
| Packaging Details: | In nude |
| Overall Dimensions: | 4705*2000*2500 mm3 |
| Fork Length: | 1070mm |
| Weight: | 8082kg |
| Type: | Manual Pallet Truck |
| Min. Lifting Height: | 2464mm |
| Engine: | Xichai |
LG50DT Longking Diesel Forklift Truck 5 Ton With 10 Ton Lifting Height
LG50DT Longking 5 ton yellow Diesel forklift truck with 10 ton lift height
Product Description
Lonking 5 ton diesel forklift truck with double 4 front tires
Comfort:
Adopting advanced man-machine engineering design, including the
engine collocated with floating shock-mitigating device, the
redirector providing low torsional moment. Adjustable steering
wheel can be adjusted according to different work condition and
operator's body, operators won't be tired after long time working.
Wide space for legs makes the operator more comfortable. The
semi-floating bonnet with built-in heat and sound insulation.
Reasonable, Stable and Low Center of Gravity:
By using computer, simulated most reasonable and stable center of
gravity; forklift truck body is welded precisely by strong steels,
insuring it more stable and balanced during handling material and
driving.
Safety:
By using wide vision design of the mast, the scope of the
operator's vision has been greatly improved, so as to make the
operation faster and safer. A throttling device is set in pipe
system, so the mast won't result in failing control even some pipes
broke.
Heat dissipation system:
Newly adopted advanced cupreous radiator with big capacity,
advanced heat dissipation technology, which enhances the truck heat
dissipation capability further.
Electrical system:
Electrical system adopts advanced wiring harness, waterproof parts
and widespread multirun fuse to improve the circuit's security and
stability.
Main parameter
| MODEL | LG50DT |
| Power type | Diesel |
| Rated capacity (Kg) | 5000 |
| J Load centre (mm) | 600 |
| h1 STD Max lifting height (mm) | 3000 |
| h3 Free lifting height (mm) | 200 |
| L5*W*T STD Fork size (mm) | 1220×150×60 |
| Mast tilt angle (deg) | Front 6 Rear 12 |
| L3 Front overhang (mm) | 590 |
| L4 Rear overhang (mm) | 645 |
| Overall dimension | |
| L1 Overall length(mm) | 4705 |
| W1Overall width (mm) | 2000 |
| h2 Mast lowered height (mm) | 2500 |
| h4 Overhead guard height (mm) | 2464 |
| R1 Min.turning radius (mm) | 3415 |
| Min .intersecting aisle (mm) | 5400 |
| Speed(load/unload) | |
| Max.traveling speed (km/h)(F/R) | 27/27 |
| Max,lifting speed (mm/s)(load/unload) | 330/450 |
| Max.gradient (%) | 20 |
| Dead weight (kg) | 8082 |
| S/P Tread(frnt/rear)(mm) | 1470/1700 |
| L2 Axle distance (mm) | 2250 |
| Min.ground clearance | |
| m2 Mast (mm) | 216 |
| m1 Frame (mm) | 248 |
| STD Engine | Xichai CA6110/125G2 |
| Rated power(kw) | 83 |

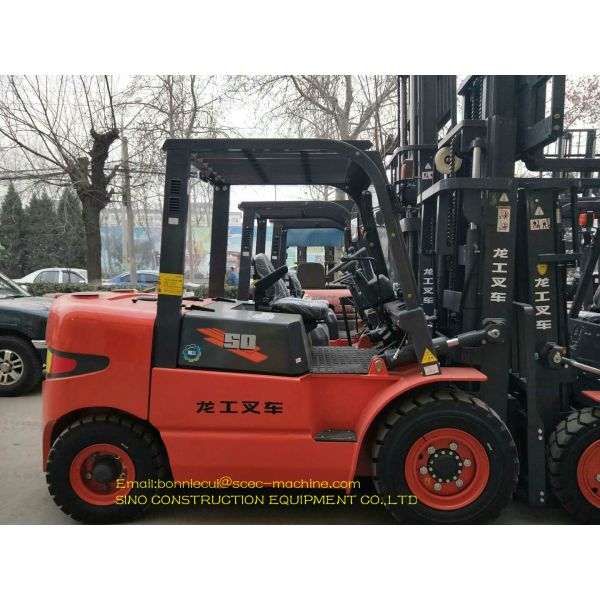

LONKING LG50DT PICS


Shipping & Delivery
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely
FAQ
Q. How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck .You should reinstall in your country.
Q :What is your leadtime ?
A: Usually it is 30-50 days after deposit received.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country , is that ok?
A: It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
|
