Aluminum Refrigerator Evaporator white Roll Bond single side

Categories Refrigerator Evaporator
Brand Name: OEM/ODM
Model Number: Customized
Certification: CE,ROHS ,ISO9001
Place of Origin: CHINA
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 30000 pcs per month
Delivery Time: 10-20days
Packaging Details: Wooden case or customized
Name: Refrigeration Evaporator
Type: Double side/Single side/Part single side
Tube material: Copper Tube
Color: paint as customers needs
Voltage: 220V/50HZ
Weight: 5-500KG Customized
Dimension(l*w*h): Custimized Made
Application: Heating or Cooling
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

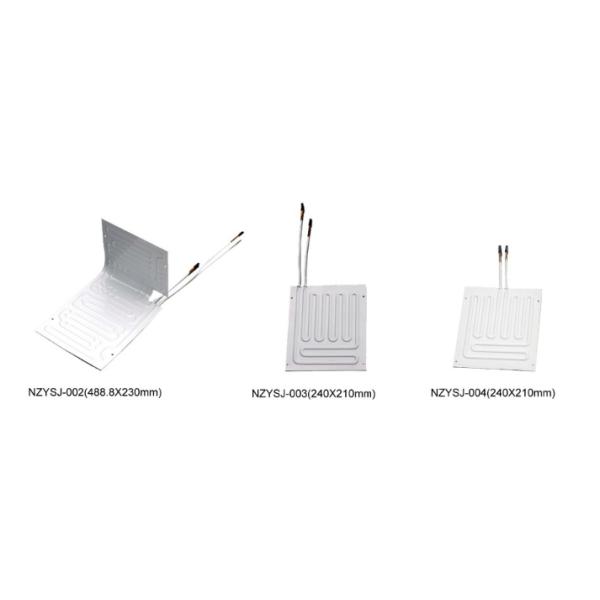

Aluminum Refrigerator Evaporator white Roll Bond single side

Aluminum Refrigerator Evaporator white Roll Bond single side

Specification


Raw materialAl-plate: finished products thickness: 1.1 2.0mm,
raw material Al plate thickness: 1.4 2.5mm
StructureDouble side rollbond evaporator,
single side rollbond evaporator,
part single side rollbond evaporator
Key processPrepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical Standards1) Size: width 590 (max), length 2050 (max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134a & CFC cooling system.
3) Can satisfy the cooling capability requirements.
Performance3.5 million sets per year (10000 sets per day)

R134a Cooling System Tube Inside standards
Residual moisture≤5 /100cm3
Residual impurity≤1 /100cm3
Residual mineral oil≤100 /100cm3
Residual chlorine≤5vloppm
Residual paraffin≤3 /
Biggest single impurity≤0.5mm


Main Markets:

BRAZIL,RUSSIA,PAKISTAN,KOREA,ITALY,SPAIN,SINGAPORE,NIGERIA,INDONESIA,BANGLADESH,CHILE,ARGENTINA, VENEZUELA ,INDIA......

Main Professional Exhibition :

We attend many many professional Fairs , such as Canton Fair , CRH , ARH (USA),CHILLVENTA(GREMANY) , MCE(ITALY) , FEBRAVA(BRAZIL).....
