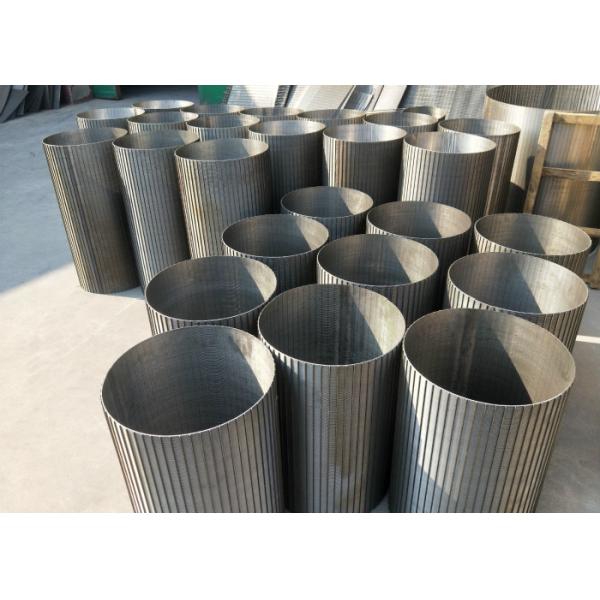

Stainless Steel Wedge Wire Screen Anti Corrosion

Stainless Steel Wedge Wire Screen , Anti Corrosion Johnson V Wire Rotary Screen

Stainless Steel Wedge Wire V Shaped Wire Slot Screen Pipe For Screening

Slot Water Well Johnson Screen Pipe Product Description:

Stainless Steel Wedge Wire V Shaped Wire Slot Screen Pipe For Screening is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods.

The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.

Slot Water Well Johnson Screen Pipe Specification:

Stainless Steel Wedge Wire V Shaped Wire Slot Screen Pipe For Screening

Slot Water Well Johnson Screen Pipe Parameter selection table:

Slot Water Well Johnson Screen Pipe Regular Specifications:

Slot Water Well Johnson Screen Pipe Characteristic:

Stainless Steel Wedge Wire V Shaped Wire Slot Screen Pipe For Screening

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Slot Water Well Johnson Screen Pipe Application:

Stainless Steel Wedge Wire V Shaped Wire Slot Screen Pipe For Screening

1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal

2. Water injection, bi-modal sand, carbonates, thin pay

3. Horizontal, vertical , deviated oil and gas and water wells

Slot Water Well Johnson Screen Pipe OEM service:

Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

Slot Water Well Johnson Screen Pipe Custom range

Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.

Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.

Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.

Length: 2.9 M, 5.85 M. Up to 6 M.

Connection form: groove connection/weld ring connection or thread connection.

Slot Water Well Johnson Screen Pipe Pictures:

Slot Water Well Johnson Screen Pipe Package:

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the XuTuan Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson wire screen,Water well screen,Vee wire screen, Well screen, Wire wrapped screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Mine sieving mesh, Spiral screen tube,Rod based continuous slot screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate, Wedge wire panel, Screen flat,Water filter,Arc screen, Johnson screen nozzle, Water filter etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic ,Water / oil well , Wastewater treatment etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of our company sincerely hopes to build well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
