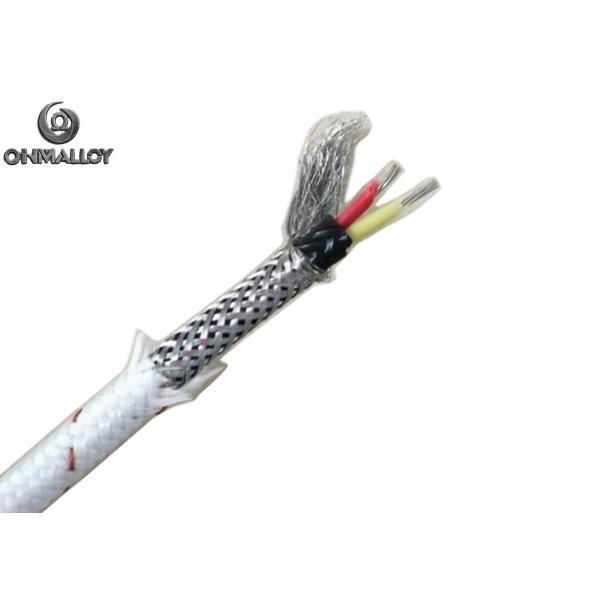

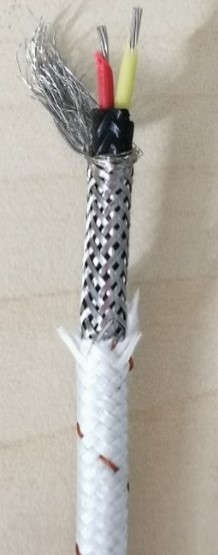

Type K Thermocouple Cable PFA Fiberglass Cable Stainless Steel 304 Sheath

Categories	Thermocouple Cable
Brand Name:	OHMALLOY/OEM
Model Number:	SP-KX-FA-HP-SS304-BL-0.5R
Certification:	RoHS
Place of Origin:	Shanghai
MOQ:	500 meters
Payment Terms:	L/C, T/T, , MoneyGram,paypal
Supply Ability:	300000 meters per month
Delivery Time:	5-15working days after payment confirmed
Packaging Details:	Coil+plywood case
Name:	Thermocouple Type K PFA Fiberglass Cable KX-FA-HP-SS304-BL-0.5R
Conductor:	7 strands of 0.3mm
Finished Cable Diameter:	3.7x4.8mm（+/-0.3mm）
Coating Material:	PFA(260℃)
Sheath:	Stainless Steel 304
Accuracy:	Class A/Class 1

Contact Now

Add to Cart

Company Info.

Ohmalloy Material Co.,Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Thermocouple Type K PFA Fiberglass Cable KX-FA-HP-SS304-BL-0.5R Customzied Specification

Cable Specification
Item Name	Insulated Type K Extension Cable
Conductor Material	+Alumel -Chromel
Conductor Dia	7/0.3mm(AWG20, ±0.02mm)
Insulation and Thickness	PFA(, 260℃) 0.15mm
Insulation Diameter	1.4mm(±0.1mm)
Jacket material and Thickness	PVC(105℃) 0.8mm
Outer Insulated Diameter	2.8mm*3.9mm(±0.2mm)
Outer Insulated Diameter	2.8mm*3.9mm(±0.2mm)
Inner Sheath Material and Thickness	SS304 0.24mm
Inner Sheathed Cable Diameter	3.3*4.4mm (±0.2mm)
Outer Sheath Material and Thickness	Fiberglass(400℃) 0.2mm
Outer Sheathed Cable Diameter	3.7mm*4.8mm(±0.2mm)
Weight	30KG/KM

Conductor Chemical Composition

Thermocouple Extension Cable-Know How

The Wire Nominal Chemical Composition for All Type

Alloy Name	Code	Nominal Chemical Composition(%)
		Cu	Ni	Cr	Si	Fe	Mg
Copper	SPC	100	-	-	-	-	-
	RPC
	KPC
	TPC
CuNi0.6	SNC	99.4	0.6	-	-	-	-
	RNC
NiCr10	KPX	-	90	10	-	-	-
	EPX
NiCr14Si	NPX	-	84	14.5	1.5	-	-
NiSi3	KNX	-	97	-	3	-	-
NiSi4Mg	NNX	-	94.5	-	4.5	-	1.0
CuNi40	KNCB	60	40	-	-	-	-
CuNi22	KNCA	78	22	-	-	-	-
CuNi18	NNC	82	18	-	-	-	-
CuNi45	ENX	55	45	-	-	-	-
	JNX
	TNX
Iron	NPC					100
	JPX
	KPCA

The Nominal Thermoelectrom-otive force(μV) for Negative and Positive Wire

Thermocouple Code	Extension Cable Code	Application Classification	Measurement Terminal Temperature(℃)	Nominal Thermoelectrom-otive force(μV)	Precision Grade Thermoelectrom-otive force		Normal Grade Thermoelectrom-otive force
					Tolerance (μV)	Value Range (μV)	Tolerance (μV)	Value Range (μV)
S or R	SC or RC	G	100	646	±30	616～676	±60	586～706
		H	100	646	-	-	±60	586～706
			200	1441	-	-		1381～1501
K	KX KCA or KCB	G	-25	-968	±44	-924～-1012	±88	-880～-1056
			100	4096		4052～4140		4008～4184
K	KX or KCA	H		-968	±44	-924～-1012	±88	-880～-1056
			100	4096		4052～4140		4008～4184
			200	8138		8094～8182		8050～8226
N	NC or NX	G	-25	-646	±43	-603～-689	±86	-560～-732
			100	2774		2731～2817		2688～2860
		H	-25	-646	±43	-603～-689	±86	-560～-732
			100	2774		2731～2817		2688～2860
			200	5913		5870～5956		5827～5999
E	EX	G	-25	-1432	±81	-1351～-1513	±138	-1294～-1570
			100	6319		6238～6400		6181～6457
		H	-25	-1432	±81	-1351～-1513	±138	-1294～-1570
			100	6319		6238～6400		6181～6457
			200	13421		13340～13502		13283～13559
J	JX	G	-25	-1239	±62	-1177～-1301	±123	-1116～-1362
			100	5269		5207～5331		5146～5392
		H	-25	-1239	±62	-1177～-1301	±123	-1116～-1362
			100	5269		5207～5331		5146～5392
			200	10779		10717～10841		10656～10902
T	TX	G	-25	-940	±30	-910～-970	±60	-880～-1000
			100	4279		4249～4309		4219～4339
		H	-25	-940	±48	-892～-988	±90	-850～-1030
			100	4279		4231～4327		4189～4369
			200	9288		9240～9336		9198～9378
