| Categories | Self Lubricating Bearing |
|---|---|
| Brand Name: | WHB |
| Model Number: | FZ |
| Certification: | ISO3547/9001 |
| Place of Origin: | CHINA |
| MOQ: | 100pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 15000000pcs per month |
| Delivery Time: | 10-20work days |
| Packaging Details: | Export carton, wooden case, wood pallet. |
| Keywords: | Gleitlager |
| Material: | bronze |
| Apply for: | machine tool |
| Size: | Customizable |
| Feature: | high precision |
| Advantage: | low friction |

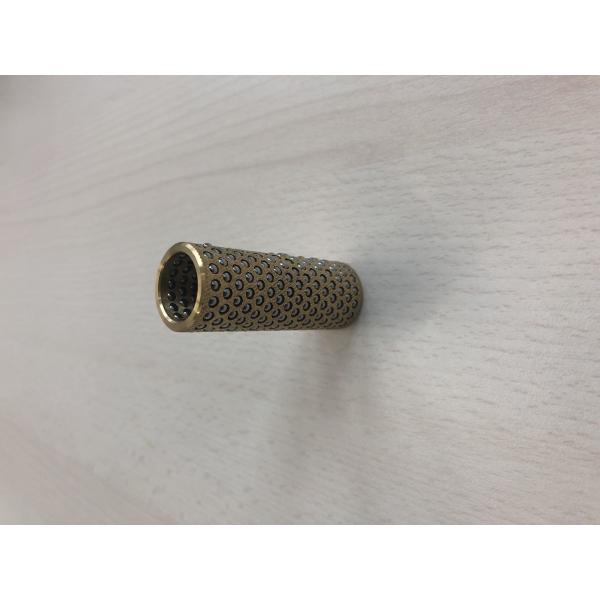

FZ Ball Bearing Cage Bronze Gleitlager Brass Aluminum Bushing Stock
1. Product Description
FZ Ball Bearing Cage Bronze Gleitlager Brass Aluminum Bushing Stock are based on copper or aluminum or pom material, with high quality steel balls, produced in certain angle and density. Using the latest technology of grooved circumferential ball locking, the problem that traditional ball locking and indentation ball locking cannot prevent steel ball from falling off is effectively solved.
.
2. Specification
| Cage Material | FZB: | Bronze + balls |
| FZA: | Aluminium + balls | |
| FZP: | POM + balls | |
| Load capacity | 30N/mm2 | |
| Speed limit | 6m/s | |
| Yeild Strength | 147~294N/mm2 | |
| Friction coef | 0.01~0.08 | |
| Tolerance of balls | <0.002mm |
3. Application
FZ Ball Bearing Cage Bronze Gleitlager Brass Aluminum Bushing Stock are widely used in moulds,machine tool,high precision machinery etc.
4. Advantages
This series bearing are line bearings, moving smoothly in a low noise.High-performance linear bearing, combining high production efficiency and perfect quality. As the raditional work-craft has some grudge between bushing with posts, and the coefficient of friction is larger. now we have changed the work-ways to steel-ball directly face guide bushing, so the precision is improved.
|
