Squirrel Cage Hollow Shaft Motor Aluminum Housing 24mm Shaft For Cleaning Machine

Categories	Hollow Shaft Motor
Brand Name:	ZOZHI
Model Number:	160M2-4
Certification:	ISO
Place of Origin:	China
MOQ:	1pc
Price:	negotiated
Payment Terms:	T/T, L/C
Supply Ability:	10000pcs/month
Delivery Time:	25 working days after received your payment
Packaging Details:	Packed in cartons,veneer case or wooden case.
Product Name:	Hollow Shaft Motor
Voltage:	230/400V
Phase:	Three phase
Output:	18.5kw/25hp
Speed:	1400rpm
Shaft:	24mm
Frame:	160
Material:	Die Cast Aluminum
Pole:	4
Insulation:	Class F
Protection:	IP55
Installation:	B3
IEC Standard:	IE1
Application:	cleaning machine / pressure washer machine

Contact Now

Add to Cart

Company Info.

Fuan Zhongzhi Pump Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

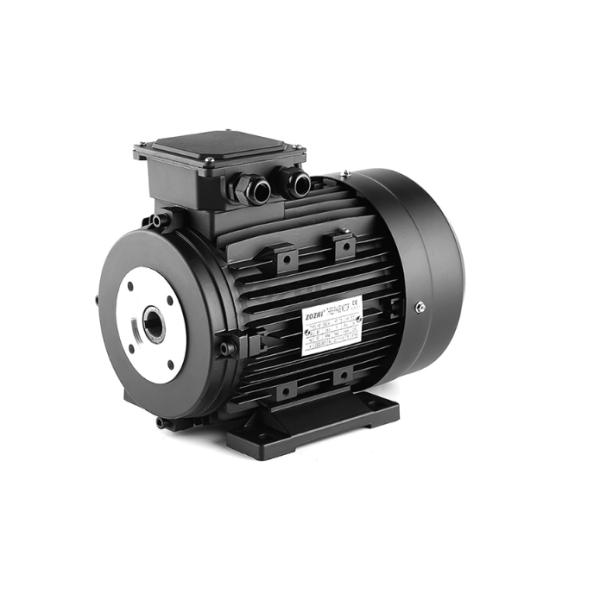

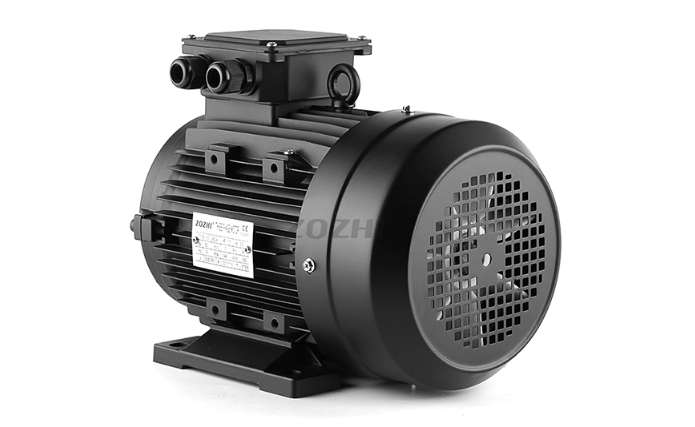

Squirrel Cage Hollow Shaft Motor Aluminum Housing 24mm Shaft For Cleaning Machine

Hollow Shaft Motor

Total-sealed design and fan-cooled type, squirrel cage type, and novel design and nice in appearance, compact structure.lower noise,high efficiency,large torque,excellent starting performance,easy maintenance,etc. this series motor adopts F class insulation and is designed as the insulation system addressing method following an international practice.

400 - Volts

Three Phase 50 Hz

25 hp / 18.5 kW

Speed-1400 rpm 4pole

Inner Shaft - 24mm Female Hollow

IEC 160M2 Frame - B3 Foot Mount

Die-cast aluminum housing

Rated to IP55

Insulation: F

For Cleaning Machine

50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)

FRAME	POWER		RPM	COSφ	EFF.%	VOLT	AMPERE
FRAME	KW	H.P.	RPM	P.F.	EFF.%	V	A
711-4	0.25	0.35	1370	0.73	64	400	0.8
712-4	0.37	0.5	1350	0.74	68	400	1.1
713-4	0.55	0.75	1350	0.75	66	400	1.6
90L1-4	1.5	2	1400	0.82	78	400	3.4
90L2-4	2.2	3	1400	0.79	77	400	5.4
90L3-4	2.6	3.5	1400	0.8	78	400	7.4
100L1-4	2.2	3	1400	0.8	81	400	5.1
100L2-4	3	4	1410	0.8	81	400	6.9
100L3-4	4	5.5	1420	0.8	82	400	9.4
100M1-4	4.4	6	1420	0.82	83	400	10
112M1-4	4	5.5	1420	0.8	83	400	9
112M2-4	5.5	7.5	1430	0.82	84	400	12.1
112M3-4	6.2	8.5	1425	0.82	84	400	13.5
112L-4	7	9.5	1430	0.8	85	400	13.8
132S1-4	5.5	7.5	1430	0.82	84	400	11.7
132S2-4	7.5	10	1430	0.84	84	400	15.4
132M1-4	9.2	12.5	1430	0.9	85	400	17.8
132M2-4	11	15	1430	0.9	87	400	21.3
132M3-4	12.5	17	1430	0.88	84	400	26
160M1-4	15	20	1450	0.86	89	400	29
160M2-4	18.5	25	1450	0.86	90	400	34

FRAME

FLANGE

FRAME NO

APPLICABLE PUMP MODEL

AR PUMP

HAWK PUMP

INTERPUMP

90mm

X.M. - R.K. - RG

61/90mm

90L

XM - RK - RG

Series44/49/50/51/58/60/63

100

61/90mm

100L

XM - RK - RW - XW - RG RC - RR - RS

NHD -NHDP -NMT

Series44/49/50/51/58/ 60/ 63

112

61/90mm

112M

XM - RK - RW - XW - RG RC - RR - RS

NHD - NHDP -NMT -NPM

Series 47/59/66

132

61/90mm

132S

RK - XW - RG RR

132

61/90mm

132M

RK - XW - XWL - SXW - SHP - RG

NMT -NPM -PXI - NLTI -XLTI

160

61mm

160M

X.W. - XWL - SWL - SHP

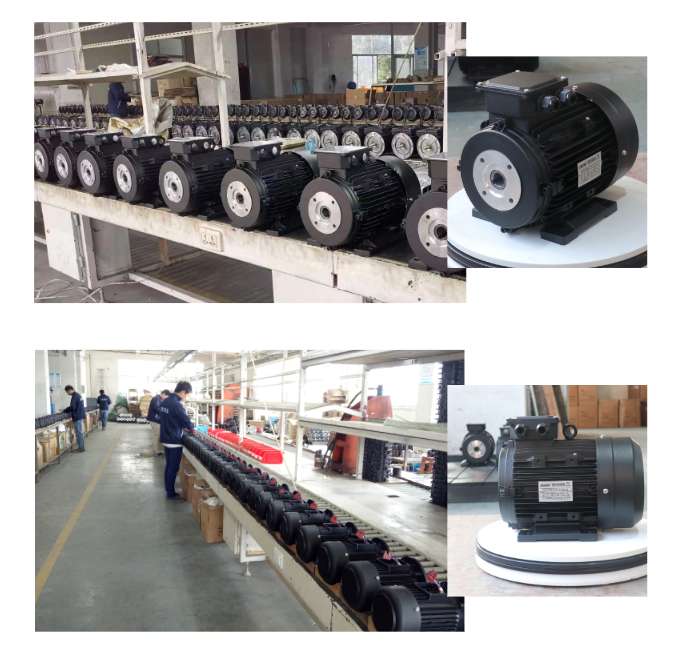

Production line
