6 Seater Electrical Golf Buggy Car With Lead Acid Battery Or Lithium Battery 48V

Categories Electric Golf Carts
Brand Name: Excar
Model Number: A1S6+2
Certification: CE
Place of Origin: China
MOQ: 1 unit
Price: $4500-4800/per unit
Payment Terms: L/C, T/T
Supply Ability: 400 units/per month
Delivery Time: 15-20 days
Packaging Details: roof move-off packing / packed by plastic foam & plastic film / QTY 4units-20" GP / QTY 12 units-40"HQ
Product Name: Electric golf cart
Application: Outdoor
Dimension: 3987*1219*1828mm
Standard: CE
Battery: Lead acid battery or lithium battery 48V
Motor: KDS brand
Controller: Curtis 350A
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

6 Seater Electrical Golf Buggy Car With Lead Acid Battery Or Lithium Battery 48V

6 seater 4 wheel drive electric golf car / electrical golf buggy car


Product Introduction:


Key Components

ItemDescription
SystemDC systemAC system
ControllerCurtis controller 1266A-5301, 350A, imported from USA directlyCurtis controller 1234E-5321, 350A, imported from USA directly
Motor

ADC brand Separately excited

DC motor 48V 3.7kw

ADC brand Separately excited

AC motor 48V 5kw

BatteryTrojan battery, T875,8V*6pcs, imported from USA directlyTrojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle

with gear ration 1:12

Italian GRAZIANO axle

with gear ration 1:16

Charger

High Frequency onboard charger

48V/17A regulator

High Frequency onboard charger

48V/17A regulator


Performance

ItemDescription
systemDC systemAC system
Passenger Capacity66
Climbing capacity(full load)20%25%
Max. forward speed23km/h45km/h
Endurance mileage50-70km60-80km
Charging time8-10 hours8-10 hours
Max. loading weight510kgs510kgs
Min. turning radius5.1m5.1m
Max. movement after brake at speed of 20km/h≤4m≤4m

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

ItemDescription
Overall dimensions (L x W x H)3987x1219x1828mm
Ground clearance114mm
Wheelbase3300mm
Front wheel tread (mm)860mm
Rear wheel tread (mm)970mm


Body and Frame

ItemDescription
Frame & ChassisSteel alloy framework
BodyPP engineering plastic front and rear body cover, injected
RoofGlass fiber reinforced plastic
WindshieldOrganic glass (PMMA), one-piece or two pieces
Roof supportsImbedding black coating steel tube in the plastic support
CushionReborn sponge with artificial leather and plastic bottom cover
BackrestReborn sponge with artificial leather and plastic cover
ArmrestPlastic
Floor matAnti-skidding rubber
Rear basketPlastic
Golf bag holderPlastic support with nylon strap
DashboardBlack plastic material, battery power indicator, ignition key on it
Beverage holders4 pcs cups holders, 2 pcs for each side
Side trimPlastic, black
Score card holderOn the steering wheel


Electric System

ItemDescription
Lights

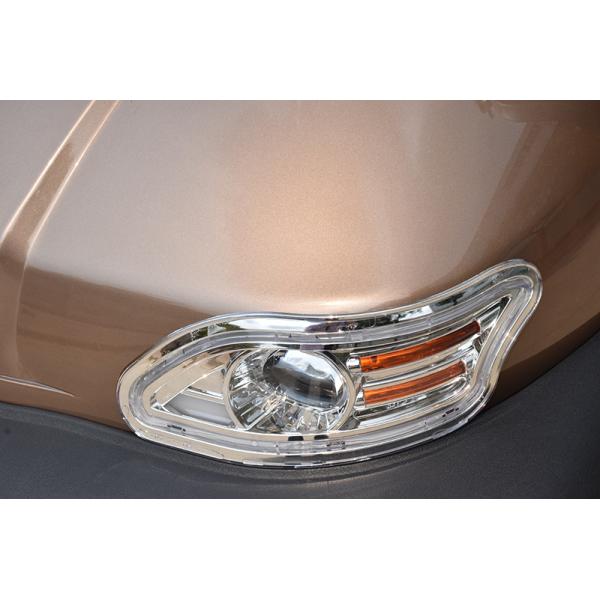

48V, LED headlight (includes turning light and position light),

LED taillights (includes brake lights and turning light),

HornElectric horn, 48V
Reverse buzzerElectric, 48V
Combination switchControl the lights and horn
Digital Meter (optional)

Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock



Steering & suspersion

ItemDescription
Steering System

Self-adjusting rack and pinion steering system,

with automatic compensation function

Brake SystemRear wheel mechanical brake
AcceleratorHolzer type, stepless speed change
Front suspensionMcpherson independent spring suspension
Rear suspensionCoil spring hydraulic shock absorber
Driving modelRear axle two stage deceleration, motor direct driving
Wheel & TyreAluminum wheel & USA Carlisle 18*8.5-8 6 layers










Specifications:

Dimension4000*1200*1700mmF/R Track860/970mm
Wheelbase3300mmGround Clearance114mm
Min.Turning Radius5.1mNet Weight630KG
Pay Load500KGMax.Forward Speed25KM/h
Climbing Capacity20%Range50-70KM



Certificate:



FAQ:
Q: Are you manufacturer?
A: Yes, we are directly manufacturer.We have a strong R&D team to provide OEM & ODM service.
Q: What kind of payment do you accept?
A: Currently we accept T/T,L/C.For other ways of payment terms,please kindly consult us for details,we will judge accordingly.
