| Categories | Ultrasonic Distance Sensor |
|---|---|
| Place of Origin: | Jiangsu, China |
| Brand Name: | YUJIE |
| Model Number: | HJ-3030 |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Packaging Details: | Carton #: 29x29x25cm |
| MOQ: | 100 Piece/Pieces |
| Price: | Negotiable |
| Certification: | ISO9001 |
| Payment Terms: | T/T, Western Union |
| Delivery Time: | 3~30 working days |
| Theory: | Ultrasonic Sensor |
| Usage: | Flow tranducer |
| Frequency: | 1Mhz |
| Port: | Shenzhen |
| Company Info. |
| Shenzhen Yujies Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

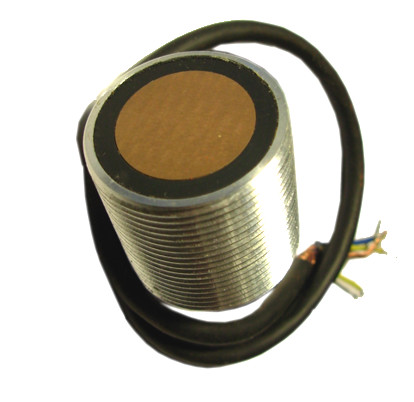

Ultrasonic Distance Sensor 1Mhz Oil Level Used Under The Stainless Steel Tank
Specifications:
| Model | HJ-3030/1M |
| Frequency(kHz) | 1MHZ±2% |
| Bandwidth (-6dB) | 6% |
General sensitivity 0 dB=3 Vp-p;Period:8;Distance:7cm | -26dB min |
| Detection distance | 2M |
| Blind zone | 5cm |
| Beam width(-3dB full angle) | 6° |
| Static capacitance | 1200PF±20% |
| Min. parallel resistance | 250Ω±30% |
| Max. driving Voltage(2% duty cycle tone burst) | <500V |
| Operating temperature | -20~70℃ |
| Protection/waterproof level | IP65 |
| Housing material | Aluminum alloy |
|
