Grate Plate Heat Resistant Casting For Grate Cooler Machine Of Cement Production

The grate plate used for grate cooler is very important castings for cement production. The casting quality have big influence on machine performance, thus will have big influence on cement quality. The casting work under high temperature, with wear resistant requirement, so we choose Cr25Ni20 as most suitable material. We also produce according to material requriement from customer if there have any special requirement by user.

Material requirement as follow:

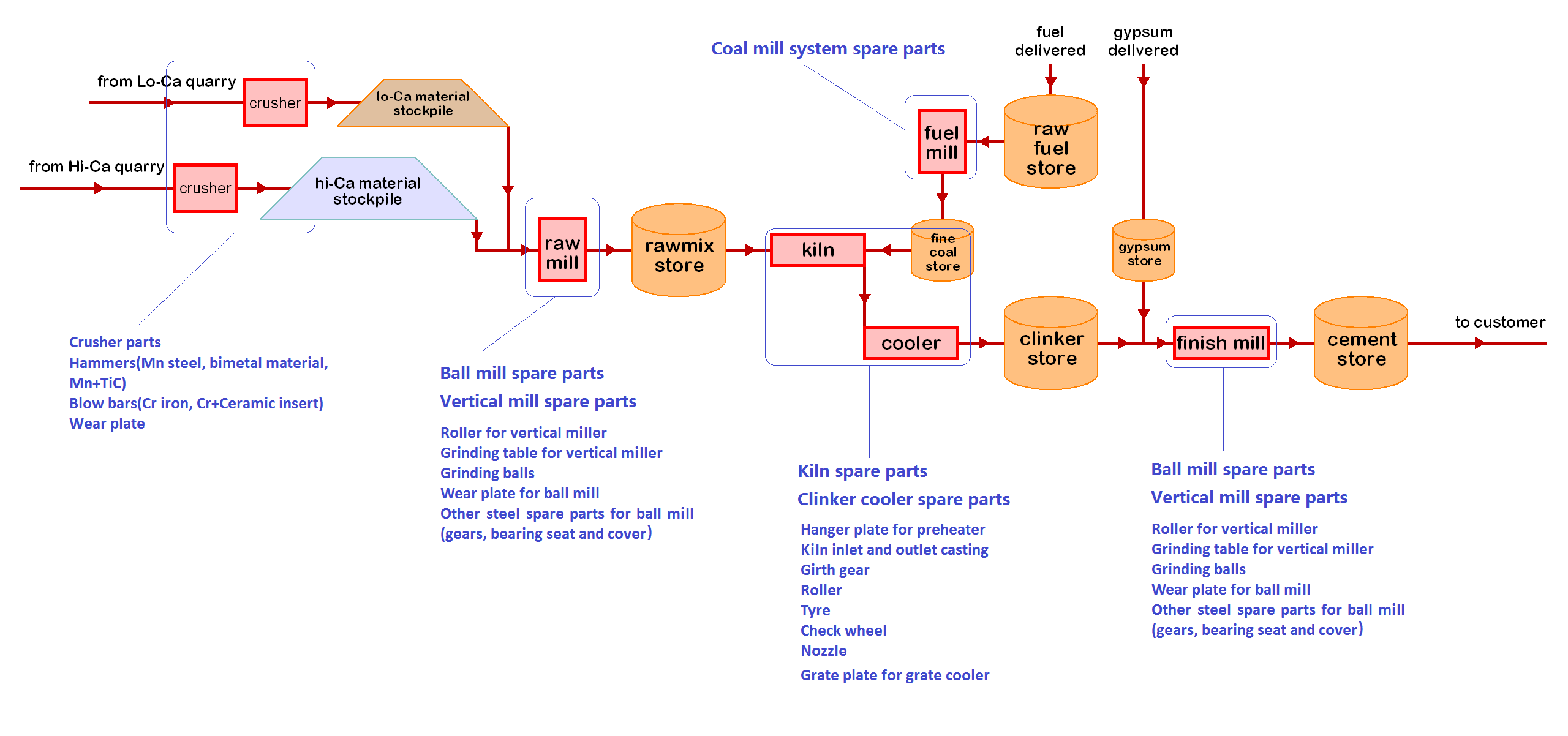

For cement prodcution line, we also supplying lot of orther castings.

1.Castings for crushers:
Hammers (manganese, bimetal hammers or manganese with insert)
Blow bars (with or without ceramic)

2.Castings for miller:
Roller for vertical miller
Grinding table for vertical miller
Grinding balls
Wear plate for ball mill
Other steel spare parts for ball mill (gears, bearing seat and cover)

3.Castings for preheater:
Hanger plate

4.Castings for kiln
Kiln inlet and outlet casting
Girth gear
Roller
Tyre
Check wheel
Nozzle

5.Grate cooler
Grate plate

We are supplying many different kind of heat resistant steel castings to our customers and we use both investment casting process and sand casting process for different size or different structure casting. For suitable castings, we also choose lost foam process which have better cost and quality performance.

There have lot of different specifications for such castings, usually we produce according to customers drawings and specific requirement, following are the common materials which we usually supply: ZG35Cr24Ni7SiNRe, ZG40Cr25Ni20Si2, 1Cr18Ni9, ZGCr25Ni35Nb, ZGCr28Ni48W5 HK40, HT, HU, HH, 22H, 304, super 22H, HP-Nb, More1, More2, 1.4848, 1.4855, 1.4852, 2.4879, 1.4460, 1.4462, S32205, S32750, etc.

Our products are been widely use in cement plants, electric generate plant, melting industry, and other industries. In recent years, there are more and more professional municipal waste incineration stations, and we have developed a lot of heat-resistant casting products specially supplied to such factories.
