| Categories | Melt Blown Machine |
|---|---|
| Brand Name: | ReHow |
| Model Number: | RH-1000 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 980kg/24hrs |
| Delivery Time: | 35 working days |
| Packaging Details: | wooden package |
| Screw Diameter: | 65mm |
| L/D: | 30:1 |
| Feature: | Automatic |
| Basic Material Of Screw: | 38CrMoAlA |
| Basic Material Of Barrel: | 38CrMoAlA |
| Heating Zone: | 40KW, 5Zones |

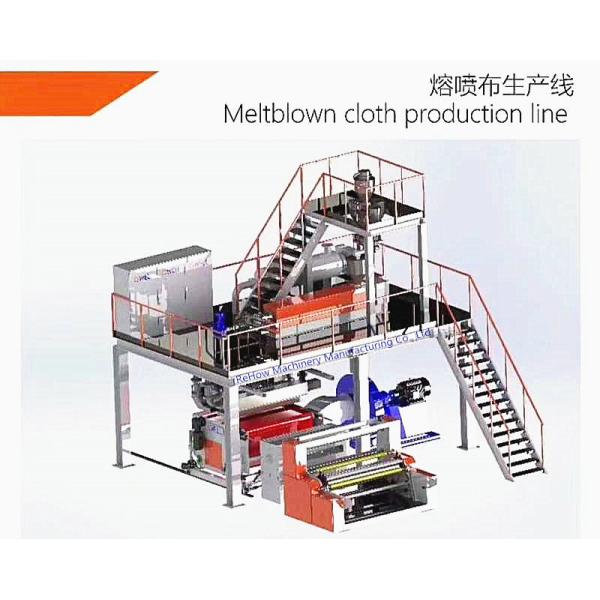

Meltblown Non-woven Fabric Production Line Equipment Machines
SJ65/30 Extruder | |||
| 1- Screw Diameter: | 65mm | ||
| 2- L/D: | 30:1 | ||
| 3- Basic Material Of Screw: | 38CrMoAlA | ||
| 4- Basic Material Of Barrel: | 38CrMoAlA | ||
| 5- Heating Zone: | 40KW, 5Zones | ||
| 6- Main Motor: | 18.5KW (Siemens-Beide) | ||
| 7- Speed Regulation: | Frequency Inverter | ||
| 8- Screw Speed: | 0-70rpm | ||
| 9- Gearbox: | ZLYJ225-20 | ||
| 10-Weight: | 1800kg | ||
| Die Head (Melt Blown) | |||
| 1- Size Of Spinning Plate: | 0.3mm | ||
| Width: | 1360mm | ||
| 2- Heating Zone: | 7pcs | ||
| 3- Size Of Air Discharging: | 18*1inch | ||
| Belt Receiver | |||
| 1- Idth: | 1500mm | ||
| 2- Max. Liner Speed: | 12m/min. | ||
| 3- Main Motor: | Y90L-4.15KW | ||
| 4-Speed Regulation: | Frequency inverter | ||
| 5- Up & Down Adjustment: | Pneumatic | ||
| 6- Max. Adjustment distance: | 400mm | ||
| 7- Product Width: | ≦1200mm | ||
| 8- Weight Range: | (g/m 2) 15-200 | ||
| Fiber Thickness: | 2D-4D | ||
| 9- Overall Dimension: | 1800 x 2000 | ||
| Winder | |||
| 1- Friction Winding | |||
| 2- Maximum Liner Speed: | 15m/min | ||
| 3- Main Motor: | Y 90L - 4.15KW | ||
| 4- Speed Regulation: | Frequency Inverter | ||
| 5- Pneumatic Compacting | |||
| 6- Overall Dimension: | 2000 x 1900 x 1700 | ||
| Air Heater | |||
| 1- Heating Power: | 120KW | ||
| Centrifugal Blower | |||
| 1- Flu: | 10314 - 20028 m 3/h | ||
| 2- Motor Power: | 15KW | ||
| 3- Pressure: | 2734 - 1733 PA | ||
| 4- Speed Regulation: | Frequency Inverter | ||
| Tri-Vane Root Blower | |||
| 1- Air Flu: | 30M3/min | ||
| 2- Air Pressure: | 58KPA | ||
| 3- Motor Power: | 55KW | ||
| 4- Inverter Regulation | |||
| Production Power & Capacity | |||
| 1- Total Power: | 250KW | ||
| 2- Actual Consumption: | 185KW | ||
| 3- Output Capacity: | 980KG/24HRS | ||
| Products: | |||
| Based on domestic & foreign high technology, our company successfully develops industrial wide continuous melt blown production line. The mould design chooses module and T-shape multi-hot runner structure. Now we can offer XD 950mm , XD 1200mm production line and are responsible for free installation & technical guide service. | |||
| Working flow line: | |||
| PP resin—extruder—melt filter—meter pump-- Melt blown monofilament extrusion—air heating system—working platform & winder---barrel winder—Auto cut-off unit | |||
|
