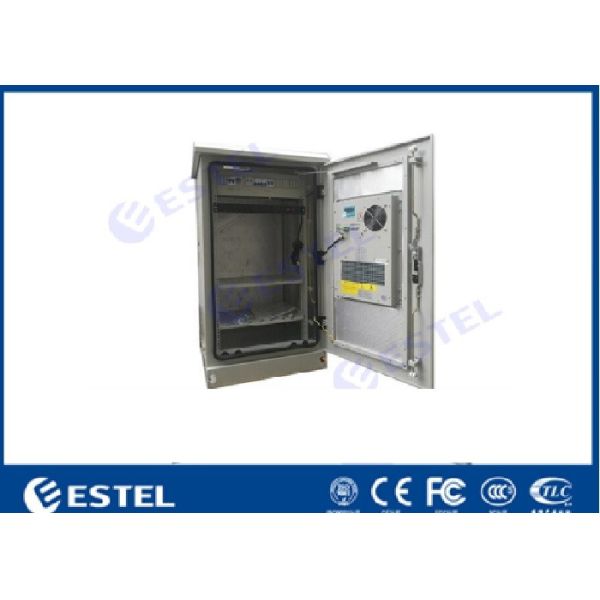

Pole Mount Outdoor Electronic Equipment Enclosures IP55 Including 13U 19" Rack

Pole Mount Air Conditioner Cooling Outdoor Telecom Cabinet Including 13U 19" Rack

1.Technical Parameters

2. Cabinet Description

2.1 Cabinet Structure: the cabinet use sandwich structure, outer plate is 1.5mm galvanized steel, inner plate is 0.5mm galvanized steel, with 20mm insulation between outer plate and inner plate.

2.2 Door and Door Lock: the cabinet includes one front door. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.

3. Cabinet Features

3.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

3.2 The cabinet use air conditioner for cooling.

3.3 The cabinet includes -48VDC LED lamp for illumination.

3.4 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable entrance holes individually for power cable, signal cable and optical cable at the bottom of cabinet.

3.5 All the cables, seal and insulation material used in the cabinet are made from flame retardant materials.

3.6 The cabinet use standard 19” rack installation method.

4. Cabinet Drawing

Cabinet External Size : 625mm×300mm×700mm (W×D×H).

5.Mounting Type

6.Cabinet Package

Introduction

Tianjin Estel Electronic Science and Technology Co., Ltd (ESTEL(GUANGDONG)TECHNOLOGY CO., LTD), located in China, is a professional supplier of integrated outdoor telecom cabinet and temperature control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’ specific needs accurately.

The base station integrated solutions and products include outdoor integrated telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.

Our products and solutions have been deployed all over China. Our main domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro and Huawei / ZTE etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.

“ Customers First, Quality First ” is always our principle. We have attained many certifications, such as ISO9001, ISO14001, OHSAS18001, CE, UL, FCC etc. AS a telecom integrated solutions / energy saving system integrator in China, We have strong advantages in technology competitiveness, management competitiveness ,service competitiveness and price competitiveness. Through many years of experiences in design, production and implementation of different projects around the world, we have gained great reputation. Relying on professional technique and strict quality control, we will continuously offer high cost-effective products and solutions to our respectable customers globally. We will always try our best to meet customers’ need and requirement.
