Name: Excel LED Event p48 Display Screen Panels AV Curved Wall LED p481
Brand: Excel LED
Price: 300.00 USD

Home > Advertising Screens >

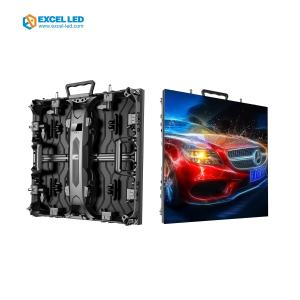

Excel LED Event p4.8 Display Screen Panels AV Curved Wall LED p4.81

Categories	Stage Rental LED Display
Application:	Event; Wedding; Concert
Color:	RGB, 3 in 1, full color
Panel Size:	500x500mm
Pixel Pitch:	2.6,2.84,2.97,3.91, 4.81mm
Place of Origin:	Guangdong, China
Model Number:	Smart
Brand Name:	Excel LED
Pixel density:	65536dots/m2
Module size:	250*250mm
LED chip:	Kinglight, Nationstar,K-N light
Brightness:	800-1000cd/sqm
Refresh rate:	3840Hz
Voltage:	110-240V/50-60HZ
Cabinet material:	Aluminum Cabinet
Cabinet design:	front service & magnetic connection;
Certificate:	CE ROHS FCC
Screen Dimension:	80inch, 110inch, 140inch, 210inch
Supply Ability:	5000 Square Meter/Square Meters per Month
Packaging Details:	Flight Case
Port:	Shenzhen
MOQ:	1 - 999 Pieces
Price:	$300.00

Contact Now

Add to Cart

Company Info.

Excel Optoelectronics Company Limited

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Excel LED Event p4.8 Display Screen Panels AV Curved Wall LED p4.81

Product Description

EXCEL LED Smart Series Display Screen

-- Design for Your High-end Events --

Indoor Display

Value	Smart 2.6	Smart 2.84	Smart 2.97	Smart 3.91
Pixel pitch	2.6mm	2.84	2.97	3.91
Pixel Configuration	SMD, 3 in 1	SMD, 3 in 1	SMD, 3 in 1	SMD, 3 in 1
Brightness	1000nits	1000nits	1000nits	1000nits
Brightness adjustable	Manually / automatically	Manually / automatically	Manually / automatically	Manually / automatically
Colors	281 trillion	281 trillion	281 trillion	281 trillion
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz
Panel size	500 x 500 x 88mm	500 x 500 x 88 mm	500 x 500 x 88 mm	500 x 500 x 88 mm
Module size	250 x 250 mm	250 x 250 mm	250 x 250 mm	250 x 250 mm
Panel material	Aluminum	Aluminum	Aluminum	Aluminum
Pixel Matrix per panel	192 x 192 dots	176 x 176 dots	168 x 168 dots	128 x 128 dots
Pixel density per sqm	147456 dots	123904dots	112896 dots	65536 dots
Viewing angle (H/V)	140/140	140/140	140/140	140/140
Power Consumption(Max/Avg)	710 / 240 W.h/sqm	710 / 240 W.h/sqm	710 / 240 W.h/sqm	710 / 240 W.h/sqm
IP Rate (front/ rear)	IP40/IP20	IP40/IP20	IP40/IP20	IP40/IP20
Input Voltage (AC)	110 / 240V	110 / 240V	110 / 240V	110 / 240V
Panel weight (kg)	7.2 (Alu.)	7.2 (Alu.)	7.2 (Alu.)	7.2 (Alu.)
Ideal Lifetime (h)	100000	100000	100000	100000
Maintaining type	Front/Rear	Front/Rear	Front/Rear	Front/Rear

Outdoor Display

Value	Smart 3.47	Smart 3.91	Smart 4.81
Pixel pitch	3.47mm	3.91	4.81
Pixel Configuration	SMD, 3 in 1	SMD, 3 in 1	SMD, 3 in 1
Brightness	4500nits	4500nits	4500nits
Brightness adjustable	Manually / automatically	Manually / automatically	Manually / automatically
Colors	281 trillion	281 trillion	281 trillion
Refresh Rate	3840Hz	3840Hz	3840Hz
Panel size	500 x 500 x 88mm	500 x 500 x 88 mm	500 x 500 x 88 mm
Module size	250 x 250 mm	250 x 250 mm	250 x 250 mm
Panel material	Aluminum	Aluminum	Aluminum
Pixel Matrix per panel	144x 144 dots	128 x 128 dots	104 x 104 dots
Pixel density per sqm	82944 dots	65536 dots	43264 dots
Viewing angle (H/V)	140/140	140/140	140/140
Power Consumption(Max/Avg)	710 / 240 W.h/sqm	710 / 240 W.h/sqm	600 / 210 W.h/sqm
IP Rate	IP65	IP65	IP65
Input Voltage (AC)	110 / 240V	110 / 240V	110 / 240V
Panel weight (kg)	7.2 (Alu.)	7.2 (Alu.)	7.2 (Alu.)
Ideal Lifetime (h)	100000	100000	100000
Maintaining type	Front/Rear	Front/Rear	Front/Rear

Product Features

Front & Rear service Front and Rear serviceable cableless connection Module, suitable for multi applications . New cabinet design Die-casting aluminum cabinet frame applies latest molding workmanship, which ensures its accuracy and durability. Easy maintenance Integrated power and signal Individual box,easy and fast to be replaced during Events. Curve Installation Advanced Inner and outer curve lock systems Curve Installation is available for both 500*500mm and 500*1000 mm cabinets Fast-lock system 1、Fast-lock system with ergonomic design. 5 seconds’ instant installation 2、500*500 mm cabinets and 500*1000mm cabinets can match each other easily.

Packaging

Installation

Stacking installation

Hanging installation

Application

More hot-selling products

New event screen Indoor church display Outdoor advertising LED poster

Certifications

Our Service

About Us

FAQ

Q1 : How long could i receive the inquiry reply? A1: You will get a reply within 12 hours. Q2: Can you arrange engineer to our site to guide the installation if we require? A12: Yes. We have qualified and experienced engineers who are ready to support you. And we also offer free training to your staff. Q3: What's your payment term? A3: We accept T/T and credit card. The term is 50% deposit before production, and 50% before delivery. Q4: What's the delivery time? A4: Standard delivery time is 15 working days. If there is stock, we could ship within 7 days. Feel free to tell if you have urgent case. Q5 : How is the after sales service? A5: We offer free online assistance during warranty, free software update, free training for new staff. Within warranty, if the module is damaged, you can send it to us and we will repair and send it to you for free. For video processors & sending cards, you can send to us, we will repair and send them to you. For other small spare parts, we will send new ones to you after receiving pictures of damaged spare parts. Q6: What service can you do after Warranty Years . A6: To all Excel LED Customers , as long as the parts can be fixed , you can send it to us , we can fix it for you free . If it is not available to be fixed and need new replacements , we will charge accordingly .
