10kw / 2450mhz Continuous Wave Magnetron For Industrial Heating , Microwave Plasma

10kw/2450mhz Cw Magnetron Used For Industrial Heating, Microwave Plasma

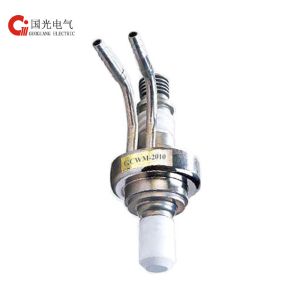

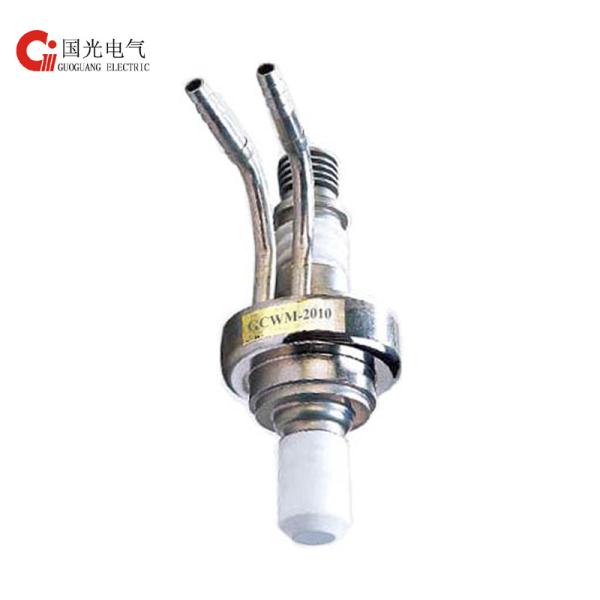

GCWM-2010 is a directly-heated pure tungsten cathode, non-packaged, CW magnetron of metal ceramic construction. Its magnetic field must

be supplied by electromagnet installed outside of magnetron. The cathode pinout and output terminal adopt Forced air, the anode use direct water cooling. Microwave power be output from axial antenna of magnetron, and it can directly launch into WR430 waveguide for microwave head of microwave system equipment.

Main Parameter:

Frequency: 2400-2500MHz

Output Power: 10kW

Anode Voltage: 10kV

Anode Current: 1.6A

Filament Voltage: ≤12V

Filament Current: (warming up) 47A

(operating) 36A

Anode proheating time: 15s

Magnetic flux density: 0.145T

Load VSWR: 2.5±5%

Limit Use Data:

Output Power: < 14 kW

Anode Current: < 1.8 A

Cathode proheating time: > 15s

Load VSWR: < 3

Anode Temperature: < 100 ℃

Cathode pinout temperature: < 150 ℃
