| Categories | Steel Pillow Block Bearings |
|---|---|
| Brand Name: | DEEG |
| Model Number: | UCF201 |
| Certification: | ISO9001 , ISO14001 |
| Place of Origin: | China |
| MOQ: | 1PC |
| Price: | USD0.1~99/ Piece |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Delivery Time: | 5-10Days |
| Packaging Details: | Single Box(White Box/Color Box/Wooden Box),or per your requst. |
| Model: | UCF201 |
| Structure: | Steel Pillow Block |
| Material: | GCR15 |
| Rolling Element: | Roller |
| Precision Degree: | P6,P5,P4 |
| 75mm Pillow Block Bearing: | V1Z1 V2Z2 |

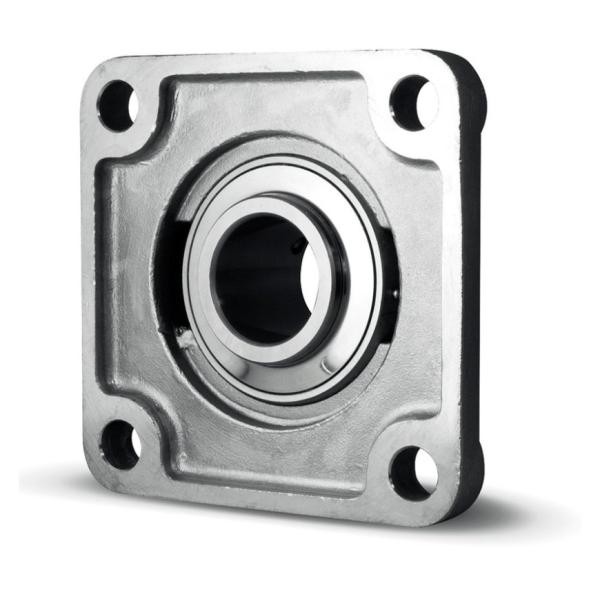

Flange Bearing / Flange Housing Unit SS UCF201 - Shaft 12 mm
UCF201 Steel Pillow Block Bearing:
| Model Number: | UCF-201 |
| Seal Type: | Double Shielded, 2RS |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0-P5 |
| Brand: | TOPE or other brands |
| Payment term: | T/T,L/C,Western Union, PayPal |
| Delivery time: | 1-5 days for small amout, 15-40 days for big amount |

| Typ | Shaft -Ø in mm | Dimensions in mm | Weight (kg) | |||||||||
| a | e | i | g | l | S | Z | Bi | n | ds | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCF201 | 12 | 86 | 64 | 15 | 12 | 25,5 | 12 | 33,3 | 31 | 12,7 | M10 | 0,63 |
| UCF202 | 15 | 86 | 64 | 15 | 12 | 25,5 | 12 | 33,3 | 31 | 12,7 | M10 | 0,63 |
| UCF203 | 17 | 86 | 64 | 15 | 12 | 25,5 | 12 | 33,3 | 31 | 12,7 | M10 | 0,63 |
| UCF204 | 20 | 86 | 64 | 15 | 12 | 25,5 | 12 | 33,3 | 31 | 12,7 | M10 | 0,63 |
| UCF205 | 25 | 95 | 70 | 16 | 14 | 27 | 12 | 35,7 | 34 | 14,3 | M10 | 0,82 |
| UCF206 | 30 | 108 | 83 | 18 | 14 | 31 | 12 | 40,2 | 38,1 | 15,9 | M10 | 1,1 |
| UCF207 | 35 | 117 | 92 | 19 | 16 | 34 | 14 | 44,4 | 42,9 | 17,5 | M12 | 1,5 |
| UCF208 | 40 | 130 | 102 | 21 | 16 | 36 | 16 | 51,2 | 49,2 | 19 | M14 | 1,9 |
| UCF209 | 45 | 137 | 105 | 22 | 18 | 38 | 16 | 52,2 | 49,2 | 19 | M14 | 2,3 |
| UCF210 | 50 | 143 | 111 | 22 | 18 | 40 | 16 | 54,6 | 51,6 | 19 | M14 | 2,5 |
| UCF211 | 55 | 162 | 130 | 25 | 20 | 43 | 19 | 58,4 | 55,6 | 22,2 | M16 | 3,4 |
| UCF212 | 60 | 175 | 143 | 29 | 20 | 48 | 19 | 68,7 | 65,1 | 25,4 | M16 | 4,4 |
| UCF213 | 65 | 187 | 149 | 30 | 20 | 50 | 19 | 69,7 | 65,1 | 25,4 | M16 | 5,3 |
| UCF214 | 70 | 193 | 152 | 31,8 | 24,8 | 54,8 | 19 | 76,2 | 74,6 | 30,2 | M16 | 6 |
| UCF215 | 75 | 200 | 159 | 35 | 22 | 57 | 19 | 79,5 | 77,8 | 33,3 | M16 | 6,6 |
| UCF216 | 80 | 208 | 165 | 35 | 23 | 59 | 23 | 84,3 | 82,6 | 33,3 | M20 | 7,5 |
| UCF217 | 85 | 220 | 175 | 36 | 24 | 63 | 23 | 87,6 | 85,7 | 34,1 | M20 | 9,1 |
| UCF218 | 90 | 235 | 187 | 42 | 27 | 70 | 23 | 98,3 | 96 | 39,7 | M20 | 11,3 |
| Inside Diameter (mm): | 12 |
| a (mm): | 86 |
| e (mm): | 64 |
| i (mm): | 15 |
| Number of Mounting Holes: | 4 |
| Housing Type: | Flange |
| Housing Material: | Stainless Steel |
| Housing No.: | SSF 204 |
| Grub Screw: | M6 |
| Cage Material: | Stainless Steel |
| Bearing No.: | SSUC 201 |
| Ring Material: | Stainless Steel |
| Shaft Fastening: | Grub Screws |
| Rolling Element Material: | Stainless Steel |
| Max. Tightening Torques (Nm) For Bearing Insert: | 5.5 |
| Product weight: | 0,630 Kg |
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are factory and professional manufactuer of bearings.
Q2: Can I get a sample to check out the quality ?
A: Sure, free samples are available for stock products if you can
payfor the shipping cost.
Q3: Can you do OEM to print my logo/brand on the products ?
A: Yes, we can print your logo/brand on the products, you just need
to send us your logo/brand files, we will show you how it looks
like before shipping out.
Q4: How long is your delivery time ?
A: Generally we have regular stocks for standard bearings that can
be shippedin 2 days after your payment. It will take 15-35 days for
new production order, which depends on your order quantity.
