Teaching Equipment Thermal Transfer Educational Equipment RADIAL HEAT CONDUCTION MODULE

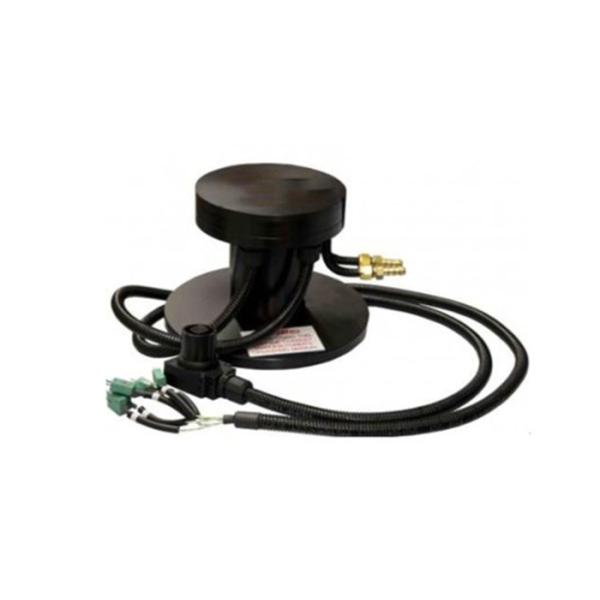

H112B RADIAL HEAT CONDUCTION MODULE

A small-scale accessory designed to experimentally investigate the basic principles of radial heat conduction and to allow the thermal conductivity of the solid metal disc to be determined.

An insulated, 110mm diameter brass disc 3.2mm thick is heated in its centre by a nominal 100W heater (operating at 240v ac maximum) which is fitted with a high temperature limit switch. The power supplied to the heater is controlled and measured by the H112 , Heat Transfer Service Unit.

The periphery of the disc is cooled by water passing through a copper tube bonded to the disc.

Six type K thermocouples are positioned at 10mm radial increments from the heated centre to the periphery. All six thermocouples plug directly into the H112, Heat Transfer Service Unit and temperatures are displayed on its digital panel meter.

Product Details and Warranty

We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.

We supply 3 years warranty time.

Packaging & Delivery

Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
