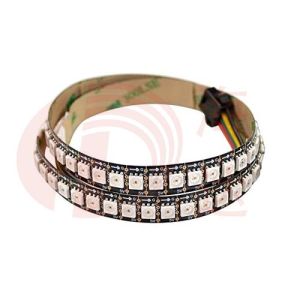

Newstar Hida High PWM 14pixels/m Addressable Newstar Pixel HD107S LED tape lights replace Dotstar APA102 LED Mapping Poi

144pixels/m HD107S LED Strip Specification (HD107S-144-5V):

1, IC Model: Newstar's 107S IC chip;
2, LED Type: 5050 SMD LED;
3, LED Quantity: 144LEDs/m, every LED is cuttable, each LED is separately controlled;
4, Pixels Qty:144Pixels/m;
5, Pitch: 144LEDs—6.94mm(1000/144);
6, Power: 144LEDs—53.2w/m;
7, IP Grade:
> IP20 non-waterproof;
> IP65 Waterproof in silicon coating;
> IP67 Waterproof in silicon tube;
8, FPCB color: White PCB / Black PCB;
9, FPCB board Dimensions: 12mm width, 2.0mm thickness;
10, Emitting Color: digital full color RGB, can be adjusted;
11, Standard Operating Voltage: DC 5V input;
12, Cuttable: Every LED can be cuttable.
13, Package: in anti-static bag, IP20 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive) each strip with one free male connector for connector
14, View angle: 120 degree;
15, Gray Scale: 256;
16, Warranty: 3 years;
17, Certification: CE & RoHS;

Features:
CMOS process,low voltage ,low consumption
Synchronization of two-lane
Choose positive output or negative RGB three-color LED output
8 bit(256 level) color set ,5bit(32 level) brightness adjustment
Build-20ma constant current output
With self-detection signal build in support for continuous oscillation PWM
output ,can be maintained static screen

Application:
1) Building decoration
2) Car decoration
3) Amusement park and theater lighting
4) Emergency hallway lighting
5) Shopping mall, restaurant, hotel, meeting room and advertisement lighting and decoration

Pins:
V+: Power output. Typically 5V but up to 12V supported for LEDs that require it. Required if powering via USB or the onboard power jack. But can be left disconnected if power is connected elsewhere.
GND: Common ground. Even if not using USB or the power jack on the AllPixel for power, this connection is required so that the DATA and CLK pins have a ground reference.
CLK: The clock pin for chipsets that require clocked data. Refer to the table below to know if your chipset requires it.
DATA: The pixel data output pin and required by all chipsets.

Basically, all chipsets will either have 3 or 4 connections. 2 are always for ground and power. If there are 3 total wires, only DATA is required but if there are 4 wires, both DATA and CLK are required.

More details: https://www.hd107s-led.com/product/144pixelsm-hd107s-led-strip/
