TY60 Hydraulic Meter German 60kN Hydraulic Puller Water Cooling System

TY60 Transmission Line Stringing Equipment Hydraulic Meter German 60kN Hydraulic Puller

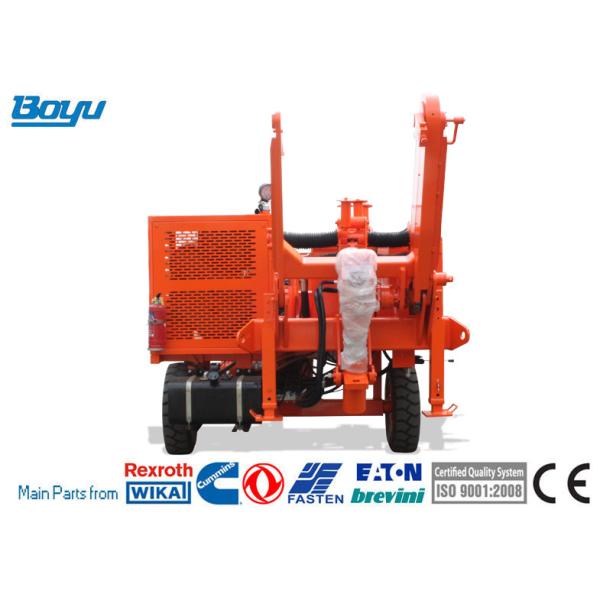

TY60 Hydraulic Puller

• Model: TY60
• Max intermittent pull: 60kN
• Engine: Cummins
• Diesel: 77kw(103hp)

Characteristics

• Bull-wheel diameter: 450mm
• Groove number: 7
• Max rope diameter : 18mm
• Max diameter of rope reel: 1400mm
• Total weight: 3500kg
• Overall dimension (length*width*height): 3800×2100×2300mm

Performance

• Max intermittent pull: 60kN
• Max continuous pull: 50kN
• Speed at max pull: 2.5km/h
• Max speed: 5km/h
• Pull at max speed: 25kN

Other Models

Company

Yixing Boyu Electric Power Machinery Co., Ltd was established in 1994, a high-tech enterprise in China, More than 27years experience. Our products have been used in 500KV/330KV/220KV/110KV and below voltages transmission line stringing project, providing perfect products and after sales services for safe operation of electrical network. Boyu has more than 160 employees, including 16 engineers. Boyu has more than 40 sets of processing equipment, including 35 sets of mechanical processing equipment (including lathes, files, planers, grinders, etc.), and 2 sets of vertical test equipment.

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
