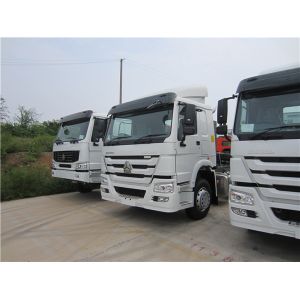

ZZ4257S3241W White Tractor Trailer Truck With HW19710 Transmission

Categories Tractor Trailer Truck
Brand Name: SINOTRUK HOWO
Model Number: ZZ4257S3241W
Certification: ISO/CCC
Place of Origin: China
MOQ: 1 unit
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 500 Unit/Units per Month
Delivery Time: 30-45 work day
Packaging Details: Nude
Transmission Type: HW19710
Emission Standard: Euro 2
Drive Wheel: 6x4
Steering: ZF8118
Cab: HW76
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ZZ4257S3241W White Tractor Trailer Truck With HW19710 Transmission

SINOTRUK ZZ4257S3241W 6x4 10 Wheelers Tractor Truck With HW19710 Transmission

Product Description

A tractor is a general large truck or semi-trailer that is towed by a tool between the front and the car. That is, the front of the car can be pulled out of the original car and pulled out of other cars. The car can also be pulled away from the original head by other fronts. . The front of the car with the driving ability is called the tractor, and the car without the traction drive capability is called the trailer. The trailer is towed by the tractor. There are two ways to connect the tractor to the trailer: the first is that the front half of the trailer is placed on the traction saddle above the rear section of the tractor, and the bridge behind the tractor is subjected to a part of the weight of the trailer, which is half-hook; The front end of the trailer is connected to the rear end of the tractor. The tractor only provides the forward pulling force and drags the trailer to go, but does not bear the downward weight of the trailer. This is the full hanging.

Product Parameter

Cabin Driving type 6x4, Left Hand Drive
HW76 Standard cab, with 2 seats, 1 sleepers, with A/C, Manual control door glass; 70°hydraulically tillable to the front
Main Dimensions Overall dimensions (L x W x H) 6900x2496x3340 mm
Wheel base 3225+1350 mm
Wheel track (front/rear) 2022/1830 mm
Approach/Departure angle 16/20 degree
Weight Tare Weight 9000 kg
Hauling Capacity 45000 kg
Front axles loading capacity HR9, 1x9000 kg
Rear axles loading capacity HC16, 2x13000 kg
Max. driving speed 102 km/h
Engine Brand Sinotruk
Model WD615.69
Type 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power 336 HP
Emission standard Euro-2
Gearbox HW19710, 10 forwards & 2 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF 8118,power steering, hydraulic steering with power assistance
Fuel tank (L) 400 L
Tire 12R22.5, all tubeless tires with one spare , 11 pieces
Fifth wheel 2" or 3.5"
Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on

rear wheels

Auxiliary brake: engine exhaust valve brake

FAQ


Q1. Do you have a good organization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line, like MSK,PIL, SUNSHINE SHIPPING, ETC. The order over 500 units of vehicle, we will lease a vessel.

Q2. How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.

Q3. Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.

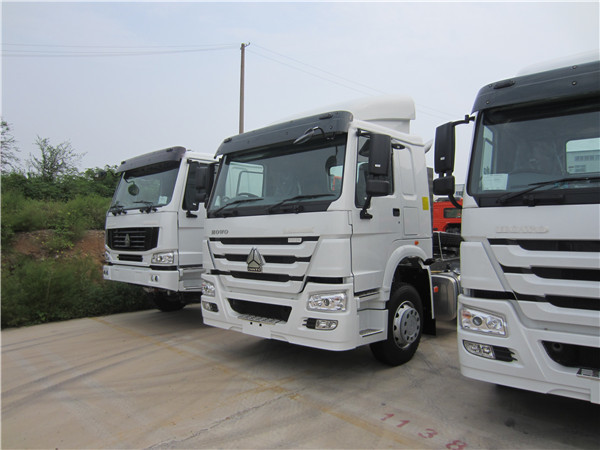

Product Picture
