Ultra HD Stage LED Screen, Waterproof LED Video Wall Panel P3 P3.91 P4.81

Categories	Stage LED Screens
Brand Name:	SCX
Model Number:	P1.875
Certification:	CE,ROHS,FCC,SASO
Place of Origin:	China
MOQ:	1 sqm
Price:	USD 1000-10000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000 sqm per month
Delivery Time:	7 working days after receive your payment
Packaging Details:	Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm
Led Module:	250*250mm
Pixel Density:	43222 dots/sqm
Color Temperature Condition:	3500K～9500K,(can be adjustable)
Number of Colors:	16.7 trillion
Brightness Adjustment:	0-100% 8 levels
Module Resolution:	52*52
Usage:	dj,show,disco
Display function:	Video,pictures,Animation,words,Graphics
Warranty:	4 Years

Contact Now

Add to Cart

Company Info.

Shenzhen ShiXin Display Technology Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Ultra HD Stage LED Screen, Waterproof LED Video Wall Panel P3 P3.91 P4.81

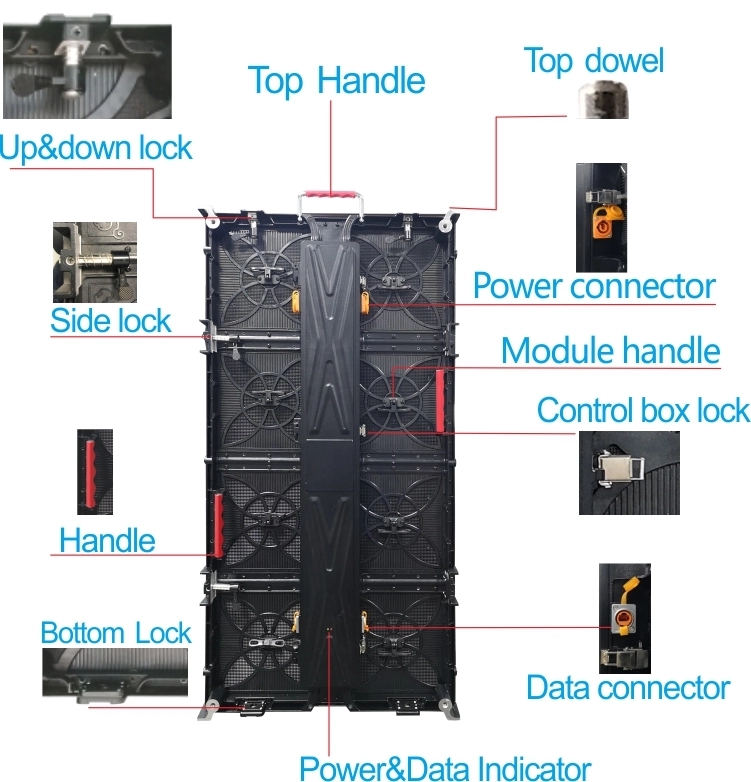

Easy to install Stage led Display Screen P3 P3.91 P4.81 outdoor waterproof Led Video Wall Panel

Specifications

Technical Parameter
Pixel Pitch(mm)	3.91	4.81
LED Configuration	SMD2121	SMD1921
Module Resolution(W×H)	64*64	52*52
Module Dimension(mm)	250(W)×250(H)×15	250(W)×250(H)×15
Module weight(kg)	0.85	0.85
Module Max Power Consumption(W)	≦40	≦40
Cabinet Pixel Density(dots/m2)	65536	43264
Maintenance mode	Backside	Backside
Single Dot Brightness Correction	YES	YES
Single Dot Chroma Correction	YES	YES
White Balance Brightness(nits)	4000-5500	4000-5500
Color Temperature(K)	2000—9300 Adjustable	2000—9300 Adjustable
View Angle(H/V°)	140/120	140/120
Brightness/Color Uniformity	≥97%	≥97%
Max(Average) Power Consumption(W/m2)	1000(400)	1000(400)
Power Supply	AC90~264V,Frequency 47-63(Hz)	AC90~264V,Frequency 47-63(Hz)
Refresh Frequency(Hz)	50&60	50&60
Drive Mode	Constant Current Drive,13 Scan	Constant Current Drive,13 Scan
Gray Level	16384	16384
Refresh rate(Hz)	≥1500	≥1500
Color Processing Digit	16bit	16bit
Module power-off storage function	Save brightness, chroma correction data, module parameters	Save brightness, chroma correction data, module parameters
Functions	2K HD,4K Ultra HD Videos	2K HD,4K Ultra HD Videos
Lifespan(hrs)	100,000H	100,000H
Operating Temperature/Humidity(℃/RH)	±-10-40/±10-80%RH	±-10-40/±10-80%RH

Product Details

Project

Our Service

1. Warranty

1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.

2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training

1) We provide the technology training for free, which contains the operation training and maintenance

2) training in the factory.

3) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation

1) We provide full maintenance for a lifetime and charge for the raw materials only.

2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

4. Documents and Certification

1) We provide the operation manual, software, test report and so on.

2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.

5. CAD Drawing and Fixing

1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.

2) We will send our engineers to your place if we are expected after our negotiation.

6. Additional Service

1) We provide you the forwarding information, and some other information such as flight box, structure
