| Categories | Outdoor Full Color LED Display |
|---|---|
| Brand Name: | mled |
| Model Number: | p5 |
| Certification: | CE ,RoHS, FCC, CCC |
| Place of Origin: | ShenZhen,China |
| MOQ: | 1PC |
| Price: | 800-820usd/pc |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pc per month |
| Delivery Time: | 5-8 days |
| Packaging Details: | poly wooden case, flight case, carton box. |
| Pixels: | 5mm |
| Usage: | Outdoor |
| Screen dimension: | Customized,960*320mm |
| Tube chip color: | Full Color |
| Display function: | Video |
| Brightness: | 6500cd/sqm |
| Warranty: | 2-3 Years |
| Life span: | 100000hours |
| Color: | full color |
| Pixel density: | 40000dots/m2 |
| Scan mode: | 1/8 scan |
| Company Info. |
| Melton optoelectronics co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
P5 High Brightness 2-3 Years Warranty Outdoor full color Advertising Taxi Top LED Screen
TECHNICAL PARAMETERS
| Unit Module | Item | Parameter |
| Model Number | P5-16S | |
| Module size | 160mm*160mm | |
| Pixel pitch | 5mm | |
| Pixels Density | 40000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD 2121 | |
| Pixel resolution | 32dots(W)*32dots(H) | |
| Max Power | 25W | |
| Module thickness | 12-14mm | |
| Weight | 0.18kg | |
| Drive type | Constant drive | |
| Scan mode | 1/16scan | |
| Port type | hub75/HUB3.0 | |
| Brightness of white balance | ≥65000cd/m2 |
LED Cabinet | Dimension | 960*320mm |
| Monomer Module Number | 24 | |
| Power supply | 5V/60A*1 pcs | |
| Thermal discharge | anto | |
| Pixel per cabinet | 192*192dots | |
| Best viewing distance | 2.5M~250M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature | storage:-35℃~+85℃ working:-20℃~+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 160mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 270W/㎡ | |
| Max.Power consumption | ≤680W/PC | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Fire rate | Grade one | |
| Display Mode | ≥800*600/1024*768 |

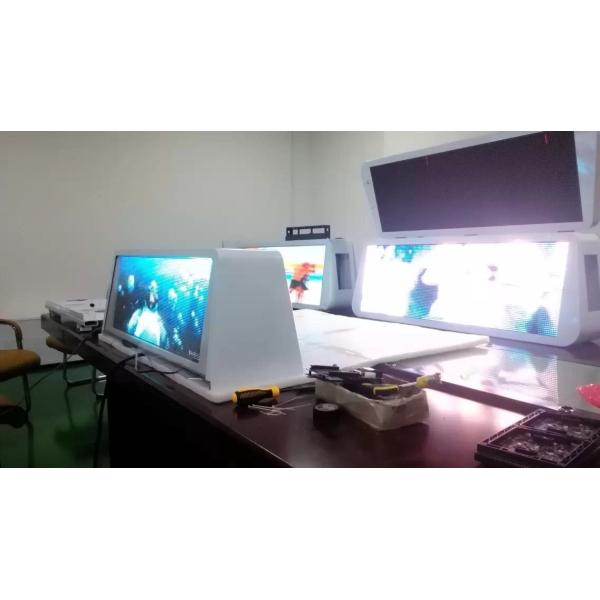

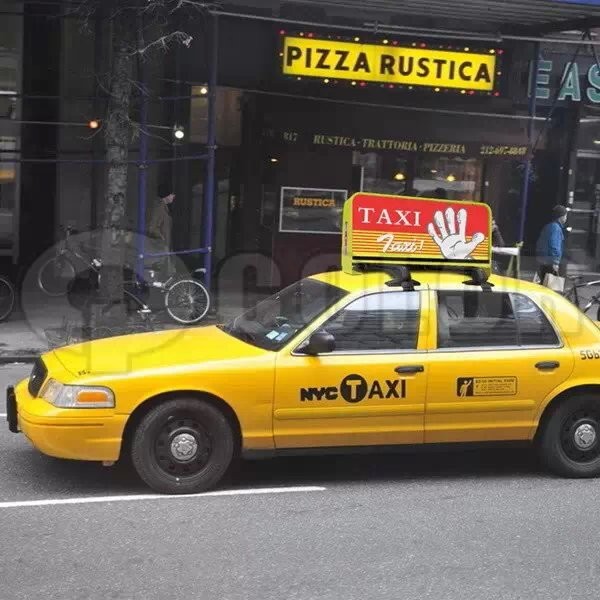

PRODUCT PICTURE


PACKING &SHIPPING

Packing:Wooden case or carton box
shipping: by sea, by air or express
|
