| Categories | Wire Extrusion Machine |
|---|---|
| Brand Name: | HOOHA |
| Model Number: | 150MM |
| Certification: | ISO ,CE |
| Place of Origin: | Guangdong |
| MOQ: | 1 unit |
| Price: | 159800- 200000 USD/ unit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 units/month |
| Delivery Time: | 40 working days |
| Packaging Details: | PE foam |
| Application: | sheath |
| material: | PVC,XLPE,LSZH |
| Cable size: | 10 mm-100 mm |
| cable field: | building , undergroud,solar ,sea etc |
| line speed: | 20-50 m/min |
| weight: | 15000 KG |
| HS Code: | 8479400 |
| export: | 12 years |
| technical team: | oversea skills |
| container: | 2 x 40 ft |

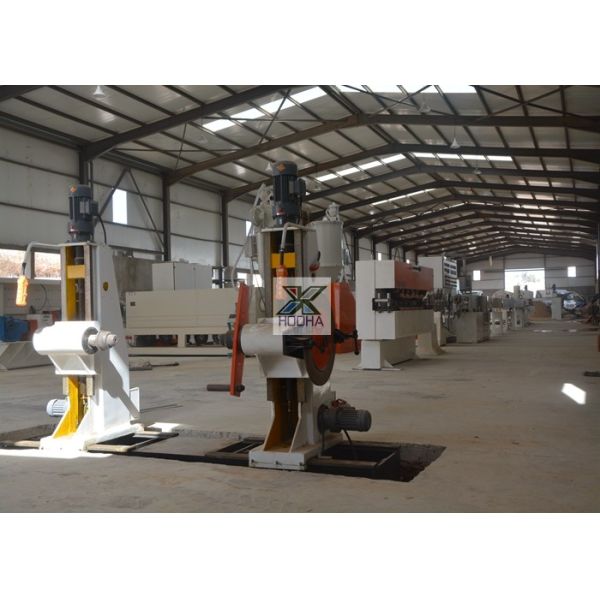

150 MM Power Cable Extruder Machine / Power Cable Manufacturing Equipment
(1) Equipment application:
Suitable for the extrusion of PVC, XLPE and other plastic material,
mainly applied in the insulation or sheath extrusion of power cable, data cable, building wire, indoor and outdoor sector .
The changed screw is suitable for extrusion of low smoke halogen
free zero smoke and other plastic material.
(2) TECHNICAL PARAMETER:
2 .Power: 380V, 50Hz three phase or customer's requirement
3. Main motor power: 75kw
4. Finish wire diameter: 10-100 mm
5. Temperature control: 11 zones
6. Line speed:10 - 50 m/min
(3) MAIN PARTS FUNCTION:
1. In5erter: The speed can be changed from zero to max
2. Pay-off tension: Control automatically by electricity
3. Take-up machine uses Polish rod, trans5erse and distance can be
adjusted by plain shaft.
4. Machine center height : 1 meter
5. Diameter of screw: 150mm, L/D of screw: 26/1. Material: 38
CrMoAiA,
8. The surface is carburized and quenched.
9. The material of insulation are P5C, XLPE, LSHF
10. Production direction: Pay-off on the left. Take-up on the
right. Customer's requirement
11. Color of production line is light blue(automobile finish ),
safe co5er is yellow OR customer's requirement
12. PROMOT SWITCH counter, set length freely.
| Line specification: | ||
| Description | Quantity | Note |
| Pay off | 1 | Portal type; 1600mm-2000mm |
| Tension caterpillar | 1 | 1000KG |
| Powder Applicator | 1 | |
| Main Extruder | 1 | 150/26 |
| Loader & Dryer | 1 | Automated |
| Crosshead | 1 | Manual centering;Single layer/ double layer |
| Cable Marking | 1 | Embossing printer |
| Cooling Trough | 1 | Moveable + Single Layer; dip type |
| Drying System | 1 | Air wiper |
| Diameter Controller | 1 | Cold |
| Caterpillar | 1 | 1250 kg |
| Spark Tester | 1 | 25KV |
| Meter Counter | 1 | Belt type |
| Take up | 1 | Portal type / overlead type; 2000mm-315000mm |
| Control system | 1 | All motors and inverters are Siemens; all bearings are NSK; Switch and contactors are Siemens; relays |
|
