W01M586381 Metric Double Convolution Air Spring Air Airmount Rerfer 2B12-311

W01M586381 Metric Double Convolution Air Spring Air Airmount Rerfer Goodyear 2B12-311

GUOMAT 2B5330 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Screw Center Distance of Top Cover Plate : 157 mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Screw Center Distance of Bottom Cover Plate : 157 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 73 mm

❸ Cover Plate

Top Cover Plate Diameter: 231mm

Bottom Cover Plate Diameter: 231mm

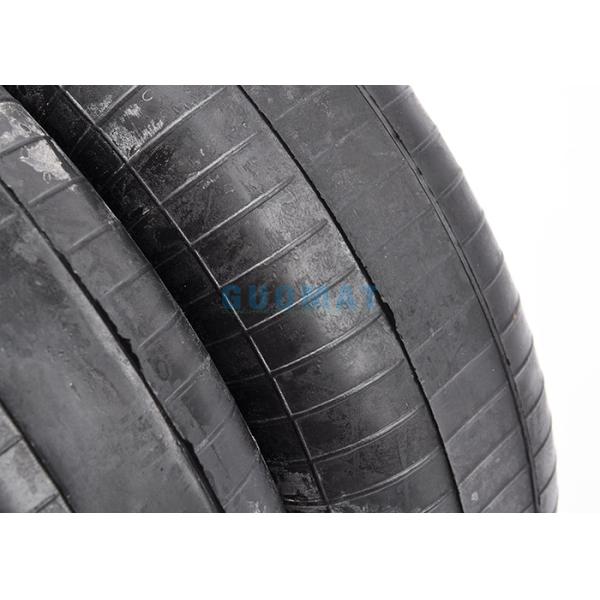

❹Rubber Bellows

Rubber Bellows MAX Diameter: 325 mm

Rubber Bellows Natural Diameter : 300 mm

The Working Stroke : MIN 81 mm to MAX 305 mm

Maximum Height : 305mm

Minimum Height :81mm

Stroke Height : 224 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

OEM Original Equipment Manufacturer:

578-92-3-309, ASA-92-8-002, ASA-92-6-002,
Firestone 22,
Same As Automann ABSP2B22R-7180,
Goodyear 2B12-425,
Firestone W01-M58-6381;W01 M58 6381;W01M586381
Peerless 0550-00001,
Peerless 0660-00001,
Peerless 550-1, 055000001,
Batco 10-97180,
Ridewell 1003587180C,
S4538C,
Navistar 168179C1,
Navistar 1685179C1,
Goodyear 2B12-311,
Triangle 4363,
Contitech 64493,
Contitech FD330-22363,
EZ Ride 8030190,
UCF Impex AB-2B12-425,
Dallas AS7180,
Haldex CS212425,
Euclid E-FS7180,
Euclid FS7180,
Contitech FD330-22363,
Ridewell S4538C,
Loadguard SC2075,
Neway 57007180,
Taurus AS2147180.

The usal kinds of Double Convolution Air Springs

Style 22 Two Ply
Blind nuts, 1/4 BSP:W01-M58-6381;W01 M58 6381;W01M586381

Blind nuts, 1/4 BSP, bumper:W01-M58-6382;W01 M58 6382;W01M586382

Blind nuts, 3/4 BSP:W01-M58-6200;W01 M58 6200;W01M586200

Blind nuts, 3/4 BSP, bumper:W01-M58-6201;W01 M58 6201;W01M586201

Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-7524;W01 M58 7524;W01M587524

Rubber bellows only:W01-358-0226;W01 358 0226;W013580226

Assembly weight (bead plate version, no bumper):5.8 kg.

Force to collapse to minimum height (@ 0 BAR):88.9 N.

Style 210 High Strength Con-struction
Blind nuts, 1/4 BSP:W01-M58-6212;W01 M58 6212;W01M586212

Blind nuts, 1/4 BSP, bumper:W01-M58-6213;W01 M58 6213;W01M586213

Blind nuts, 3/4 BSP:W01-M58-6210;W01 M58 6210;W01M586210

Countersunk steel bead rings,bolts, nuts, washers:W01-M58-6976;W01 M58 6976;W01M586976

Rubber bellows only:W01-358-7928;W01 358 7928;W013587928
