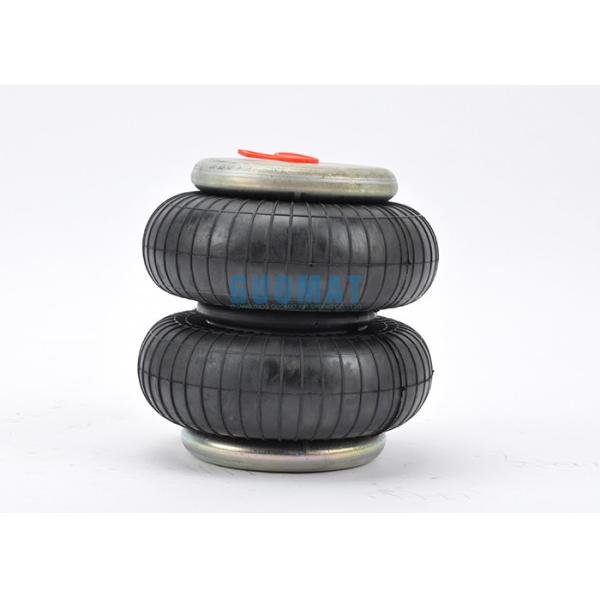

W01M586160 Firestone Industrial Air Bags / Rubber Bellows NO. 25 Double Convoluted Air Bag

W01M586160 Firestone Industrial Air Bags Rubber Bellows NO. 25 Double Convoluted Air Bag

GUOMAT NO. 2B6160 Specifications and Detail Technical Parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 44.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 44.5 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/4

❸ Cover Plate

Top Cover Plate Diameter (Width): 114 mm

Bottom Cover Plate Diameter (Width): 114 mm

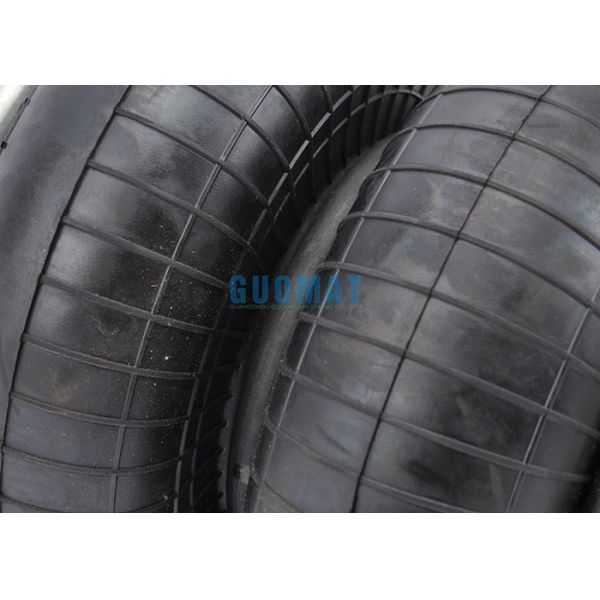

❹Rubber Bellows

Rubber Bellows Natural Diameter : 146 mm

Rubber Bellows MAX Diameter : 163 mm

Installation Space Diameter : 180 mm

Rubber Bellows Natural Height : 162 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Style 25 Two Ply
Blind nuts, 1/4 BSP:W01-M58-6160;W01 M58 6160;W01M586160
Socket head aluminum bead rings (bolts, nuts, washers not included- use M6 cap screws):W01-358-0030;W01 358 0030;W013580030
Rubber bellows only (no girdle hoop):W01-358-0025;W01 358 0025;W013580025
Force to collapse to minimum height (@ 0 BAR):85 N.
