Durable Sinotruk Howo 6x4 Dump Truck 371hp With Overturning Body Platform Euro 2

Categories Heavy Duty Dump Truck
Brand Name: HOWO
Model Number: ZZ3257N3447A1
Certification: CCC/ISO
Place of Origin: China
MOQ: 1 unit
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 900 Set/Sets per Month
Delivery Time: 30-45 work days
Packaging Details: Nude
Drive Wheel: 6x4
Horsepower: 251 - 350hp
Transmission Type: Manual
Fuel Type: Diesel
Front wheel track: 2022/2041mm
Capacity (Load): 21 - 30t
Emission Standard: Euro 2
Dimensions (L x W x H) (mm): 8000x2500x3450
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Durable Sinotruk Howo 6x4 Dump Truck 371hp With Overturning Body Platform Euro 2

White Sinotruk 6x4 Dump Truck 371hp With The Overturning Body Platform Euro 2

Application


HOWO 6X4 10 wheels dump truck middle tipping is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. The 10 wheels 6X4 dump truck with 25-30 tons capacity can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.


Product Overviews


Model

ZZ3257N3447A1 GCW40000kgs Driving Type 6×4

Engine

Engine model

WD615.69, Euro II emission standard, 4 stroke injection diesel engine,
6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system

Maximum output

336PS (247kW) at 2200 rpm

Maximum torque

1350Nm at 1100-1600rpm

Bore

126mm Stroke: 130mm

Displacement

9.726L

Compression ratio

17.5:1

Specific fuel consumption

≤198g/kWh

Engine oil filling quantity

23L

Air compressors

WABCO Twin cylinders air compressors;

Cooling system filling quantity
(long-term filling)

40L

Clutch

SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

Transmission

Transmission, model HW19710, 10 forward and 2 reverse
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

New HF9 series, with drum brake system
Steering with double T-cross section beam

Rear Axle

HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Ratio: 5.73

Chassis

Frame:

High-strength U-profile frame, all cold riveted cross members and reinforced subframe

Front suspension:

semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:

semi-elliptic leaf springs and bogie springs

Spare wheel carrier:

with one spare wheel


Steering

ZF8098, hydraulic steering with power assistance
Ratio: 22.2-26.2:1

Braking System

Front and rear drum brake, four-circuit protection valve

Service brake

dual circuit compressed air brake

Parking Brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

engine exhaust brake

Wheel & Types

Rims

8.5-20,10 hole-steel

Types

12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20

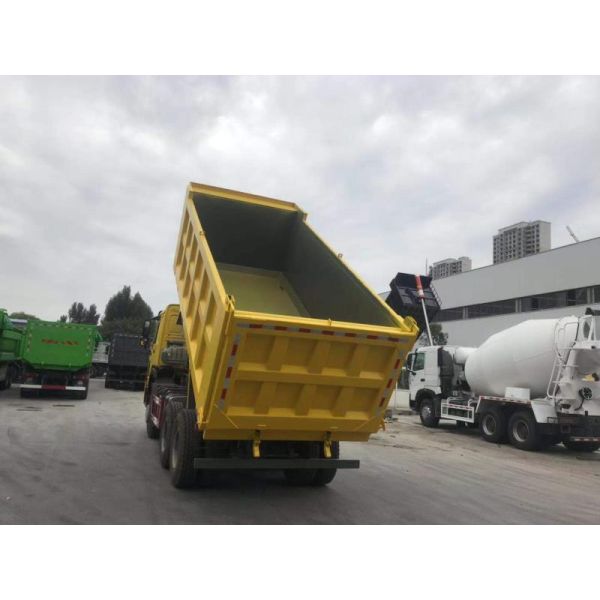

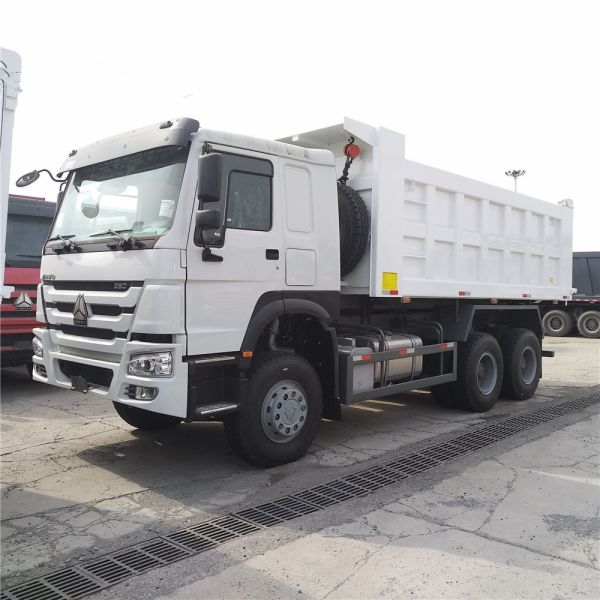

Product Picture
