SINOTRUK HOWO 8x4 Concrete Pump Truck Euro 2 With 5000mm Wheelbase
Advantages:
1) IS9000 and TS16949 certificate
2) High quality and competitive
3) Professional technology
4 )MAN/STERY driving axles
5) Four channel ABS of WBACO
Details:
Cab: Long cab HW76, all-steel forward control, 2-arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system( Option: HW70 Economical cab/ HW79 high roof cab);
Steering: ZF power steering, model ZF8098, hydraulic steering with powerful assistance;
Engine: Electronic control EGR system( COMMON RAIL ENGINE is alternative)/336HP,375HP
Clutch: Single-plate dry coil-spring clutch;
Suspension: Multiple-leaf suspension,( HUV rubber suspension can be chosen--load capacity 27.6 tons, Weight light, reducing weight effectively);
Tyres: Bias tyre,( tubeless tyre and radial tyre can be chosen )
Transmission: HW13710 ( over-drive transmission can be chosen )
Front axle: HF7 disc brake ( drum brake is alternative)
Drive axle(rear axle): ST16
| Weight | curb weight(kg) | 11150 | |
| gross weight(kg) | 43000 | ||
| total weight(kg) | |||
| Size | overall dimensions (mm) | length | 11450 |
| width | 2496 | ||
| height | 3025 | ||
| wheelbase(mm) | 1800+5000+1350 | ||
| (road)minimum ground clearance (mm) | 314 | ||
|
Performance | maximum speed(km/h) | 90 | |
| economic speed(km/h) | 72 | ||
| maximum gradeability(%) | >40 | ||
| minimum turning diameter(m) | <24 | ||
| Configuration | engine | model |
WD615.96,WD615.95C,WD615.96C,WD615.95E,WD615.96E
|
| gross power (kW)/ rotating speed (r/min) |
1500/1100~1600
| ||
| Max Torque (N*m)/ rotating speed (r/min) |
276 249 279 247 276
| ||
| gearbox | HW19710(overdrive gearbox is alternative) | ||
| clutch(mm) | 430C | ||
| rear axle | model | ST16(HC13,HC16 can be chosen) | |
| axle ratio | 3.93 | ||
| fuel tank (L) | 400 | ||
| frame section (mm) | 300 | ||
| suspension(front/rear) |
left14right13/left14right13/12,11/11/12
| ||
| tires | 11.00-20,11.00R20,12.00-20,12.00R20 | ||
FAQ:
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, Iran, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, depending on the cooperation time, country and contract value.

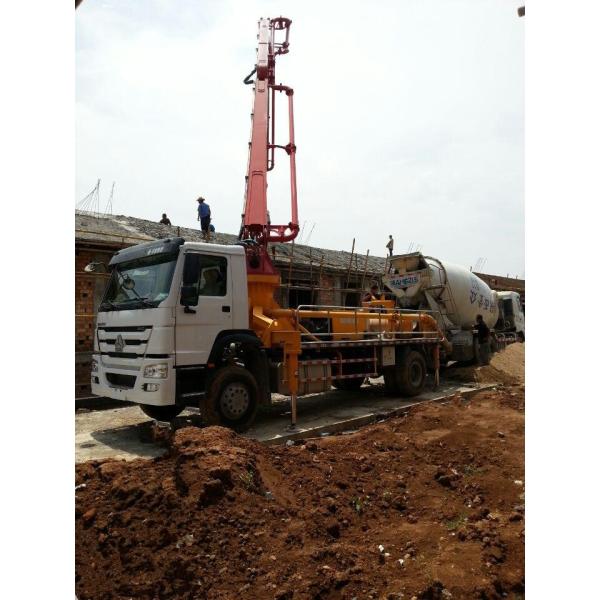

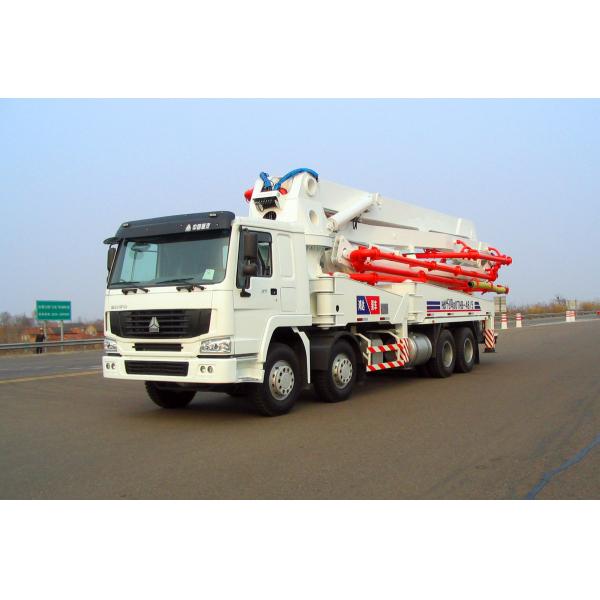

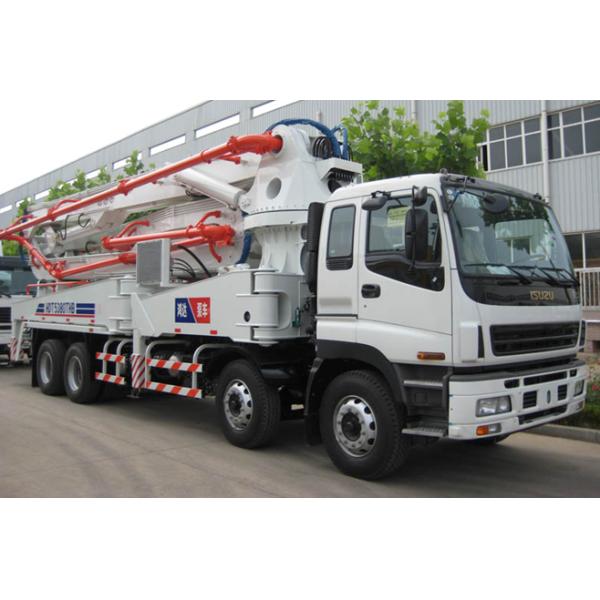

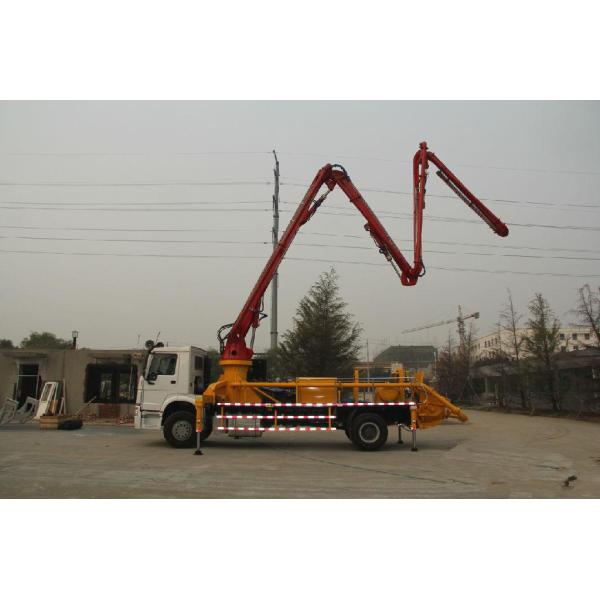

Pictures:




|
