Name: Metal 34mm Strut Guardrail Roll Forming Machine
Brand: Sussman
Price: 39500 USD

Metal 3-4mm Strut Guardrail Roll Forming Machine

Categories	Guardrail Roll Forming Machine
Brand Name:	Sussman
Model Number:	RF-ST
Certification:	CE, SGS, ISO
Place of Origin:	Wuxi, China
MOQ:	1 set
Price:	USD39500-USD79500 per set
Supply Ability:	10 sets/month
Delivery Time:	70 days after deposit
Packaging Details:	Film and steel
Material Thickness:	3-4mm galvanized coils
Forming speed:	12-15m/min
Roller stations:	about 15 stations
shaft material:	45# steel
shaft diameter:	75mm
Hydraulic pressure:	12Mpa
cutting blade material:	Cr12mov
Tolerance:	+/-1mm
Material of main shaft:	45# high quality steel
Cutting:	hydraulic cutting

Contact Now

Add to Cart

Company Info.

Sussman Machinery(Wuxi) Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Metal 3-4mm Strut Guardrail Roll Forming Machine

Metal Customize Strut Slotted Furring Channel Purlin Roll Forming Machine With Gear Box Device

Description

As a professional manufacturer,we can make Metal Customize Strut Slotted Furring Channel Purlin Roll Forming
Machine by customer`s demand, with a profile drawing and thickness, we can
design the machine quickly.Until now,we can do many kinds of Guard
raily machine,such as U channel machine, corrugated sheet making machine, glazed tile making machine, Double Layer Roll Forming Machine and so on.

Detail Images
Suitable material
PPGI GI AL
Coil Width
300-500mm as custom
Thickness
3-4mm as custom
Power
380V 50Hz 3Phase as custom
Main motor
30KW Siemens
Hydraulic motor
7.5KW Siemens
Speed
10-12m/min
Forming stations
18rows
Roller material
Cr12 steel with vacuum heat treatment HRC57°-60°
Shaft material
45# steel quenched and tempered
Shaft diameter
90mm
Chain
gear box
Screem HMI
Delta , Touch Screen
PLC
Delta , Siemens
Processing precision
Within 2mm
Size
17.6m×1.5m×1.2m
Weight
8.5T

Profile drawing

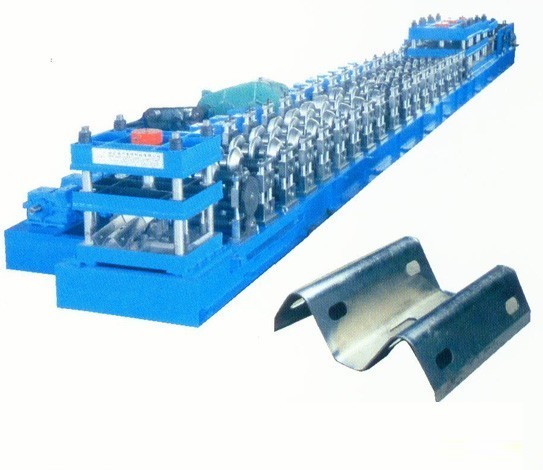

Machine photo

Product Tags:

strut guardrail roll forming machine

metal guardrail roll forming machine

4mm guardrail roll forming machine

Metal 3-4mm Strut Guardrail Roll Forming Machine

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Sussman Machinery(Wuxi) Co.,Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Suitable material	PPGI GI AL
Coil Width	300-500mm as custom
Thickness	3-4mm as custom
Power	380V 50Hz 3Phase as custom
Main motor	30KW Siemens
Hydraulic motor	7.5KW Siemens
Speed	10-12m/min
Forming stations	18rows
Roller material	Cr12 steel with vacuum heat treatment HRC57°-60°
Shaft material	45# steel quenched and tempered
Shaft diameter	90mm
Chain	gear box
Screem HMI	Delta , Touch Screen
PLC	Delta , Siemens
Processing precision	Within 2mm
Size	17.6m×1.5m×1.2m
Weight	8.5T
