| Categories | Kiosk Thermal Printer |
|---|---|
| Brand Name: | MASUNG |
| Model Number: | W80 |
| Certification: | CE/ROHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 170-180USD/PCS |
| Supply Ability: | 2000 set per month |
| Packaging Details: | carton and foam materials |
| Printing method: | Dot line thermal printing |
| Printing width: | 80mm(max) |
| Printing speed: | 250mm/s(max) |
| Printing pattern: | Inverse, underline, italic, bold, etc. |
| ASCII: | 9*17 dots,12*24 dots |
| Chinese: | 24*24 dots |
| Thermal head temperature: | temperature sensor |
| Resolution: | 576dots/line |
| Interface: | USB/RS232 |
| Power supply: | 24V±10% |
| Operating system: | Wins, Android, Linux, RPI |
| Paper type: | Thermal paper roll |

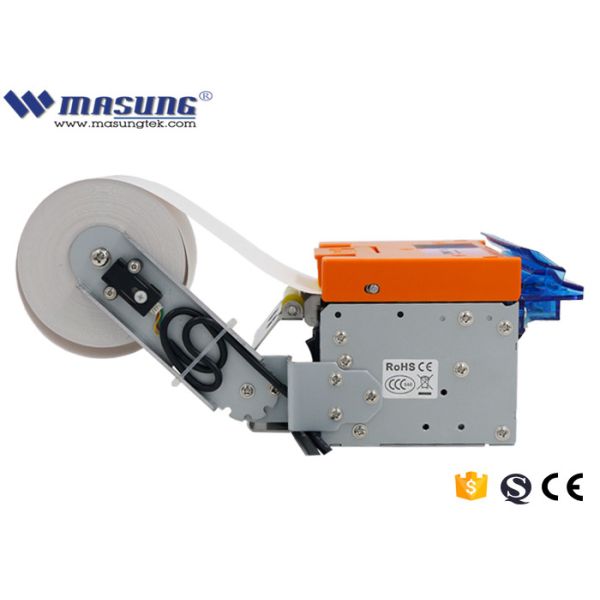

2020 New Style 80mm USB Thermal Label Printer Brand Kiosk Thermal
Printer For Vending machine
Features:
Brand name thermal head & auto cutter
Ultra Highly printing speed Max 250 mm/s Unique “anti-drag” ticket
system
Smart paper bezel with LEDs
Sturdy adjustable paper roll bracket (horizontal & vertical
mounting)
Wide range paper thickness: from 0.06 ~ 0.2 mm
USB support USB2.0 high-speed and full-speed .Standard USB ports
are implemented using the standard series B socket defined in the
USB specification.
Specification:
| Model | W80 | ||
| Control board | EP802_3 | ||
| Printing method | Dot line thermal printing | |
Total dots per | 640 dots | ||
| Printing width | 80mm(max) | ||
| Printing speed | 250mm/s(max) | ||
| Printing pattern | Inverse, underline, italic, bold, etc. | ||
| Character | ASCII | 9*17 dots,12*24 dots | |
| Chinese | 24*24 dots | ||
| Detection | Thermal head temperature | temperature sensor | |
| Platen position | Mechanical switch | ||
| Paper end | Mechanical sensor | ||
| Paper out | |||
| Paper near end | Reflective infrared light sensor | ||
| Paper gap | |||
| Black mark | |||
| Cutter | |||
| Paper retract | |||
| Power | Working voltage | 24V±10% | |
| Power standby | ≤40mA | ||
| Paper | Paper width | 60/80/82.5mm | |
| Paper thickness | 60～80μm | ||
| Paper load | Auto loading(horizontal 180°) | ||
| Paper cutter | Partial/full cut | ||
| environment | Operation temperature | -10～60°C(no condensation) | |
| Operation humidity | 20～80%RH(40℃/85%RH) | ||
| Storage temperature | -20～70°C(no condensation) | ||
| Storage humidity | 10～90%RH(50℃/90%RH) | ||
| Service life | Cutter service life | 60μm | 100,0000 |
| 200μm | 30,0000 | ||
| Abrasion resistance | 100KM | ||
| Dimension | With 150mm paper roll, paper holder 45° upward | 119.30mm*89mm*86.13mm(W*D*H) | |
| Weight | About 1.0kg(without paper roll) | ||
| Communication interface | Serial & USB | ||
Application:
Sports betting terminal; video lottery machine; gaming kiosk,
payment kiosks; ATM; parking system; ticket vendor, airport
boarding check printer, ATB tags printer and more
We highly welcome any inquiry, please feel free to contact me.
Name: Jolly Pong
Mail＆Skype: sales02@masungtek.com
Whatsapp: +86 15882275091
|
